System Diagram (Without Intelligent Key System)

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

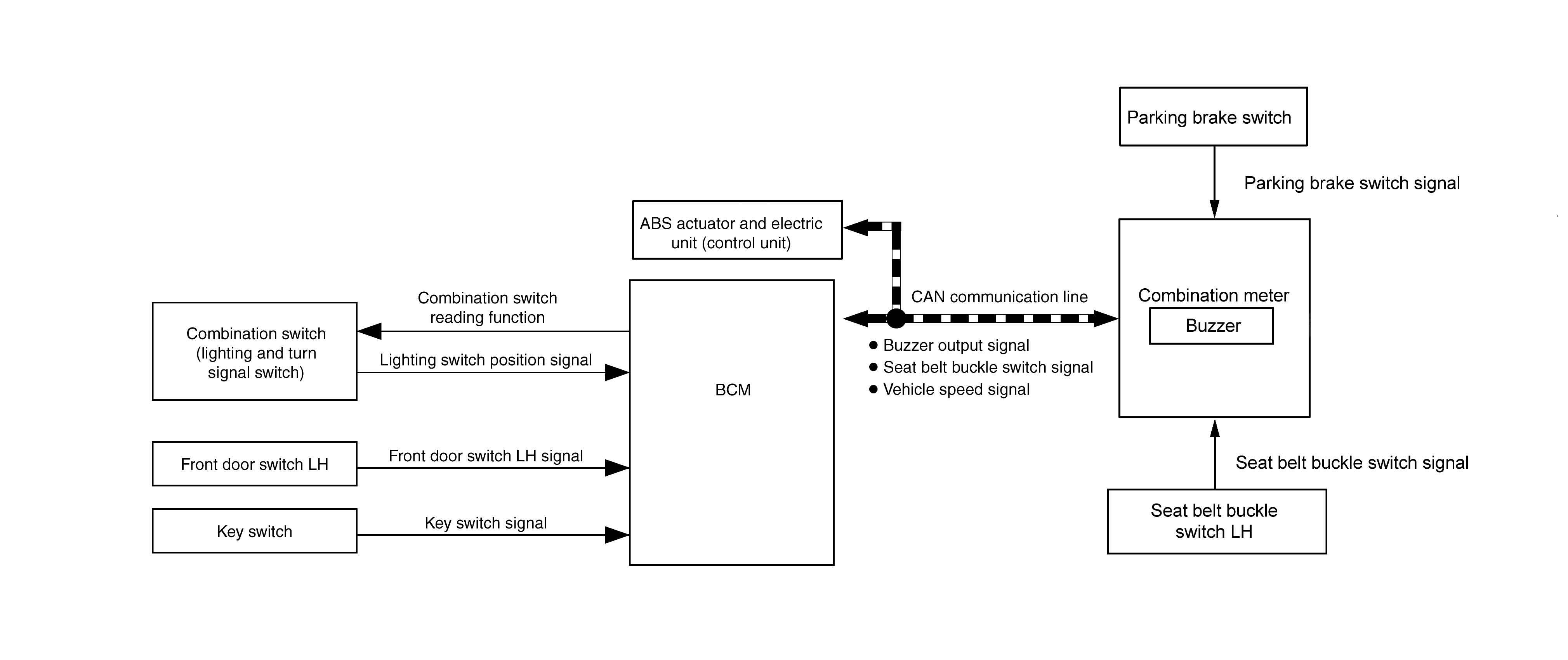

Fig 1: Warning Chime -- System Diagram (Without Intelligent Key)

Courtesy of NISSAN NORTH AMERICA, INC.
