Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

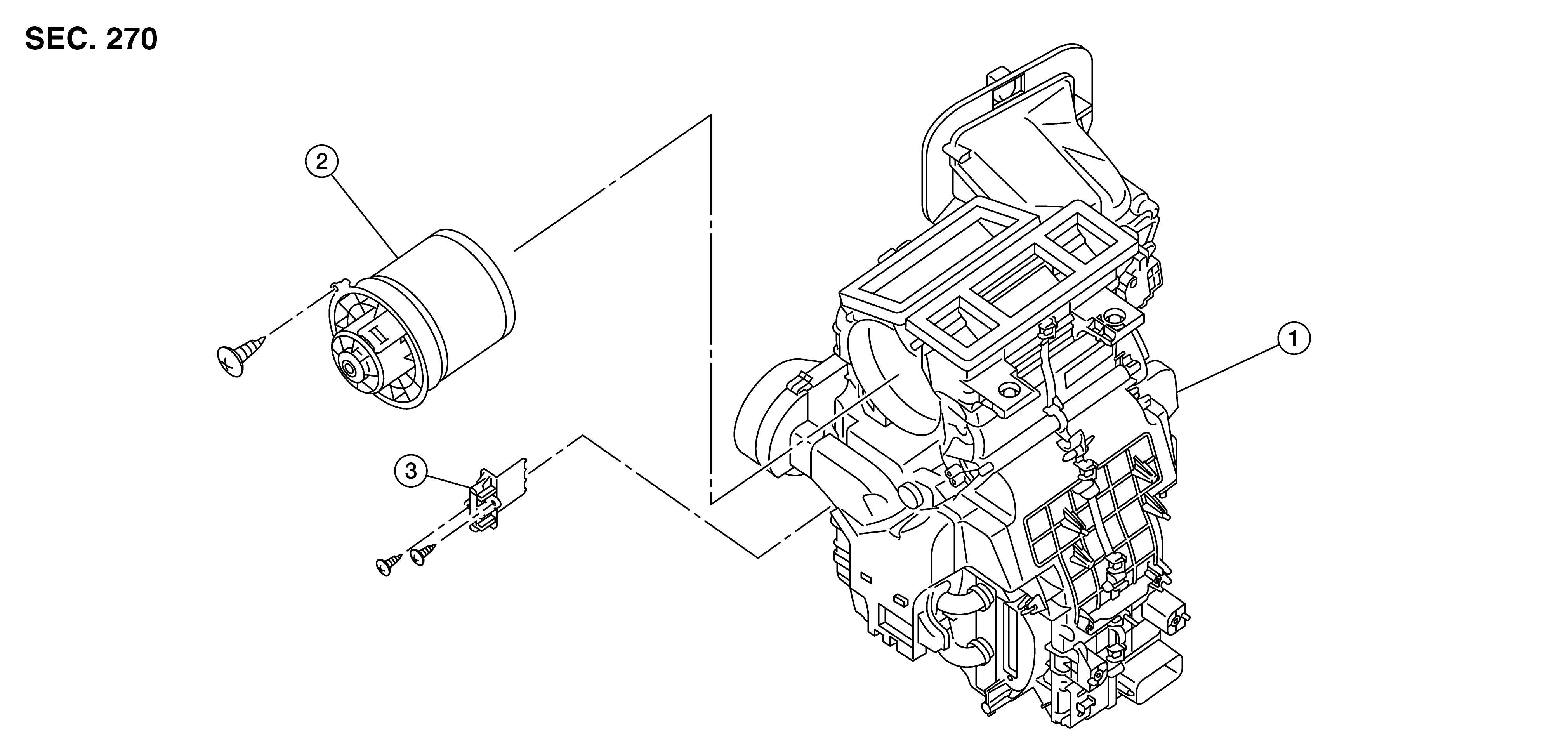

Fig 1: Exploded View Of Blower Motor

Courtesy of NISSAN NORTH AMERICA, INC.

Heating and cooling unit assembly

Front blower motor

Front blower fan resistor
