COMBINATION SWITCH Connector End View (M28)

Connector Color:  WHITE

Fig 1: Terminal-side
GNSW83059Courtesy of NISSAN NORTH AMERICA, INC.

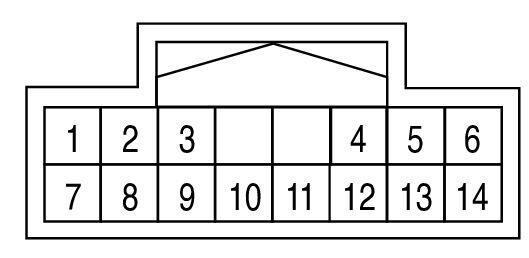

Fig 2: Harness-side
GNSW83058Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 BG -
2 Y -
3 SB -
4 W -
5 L -
6 B -
7 W -
8 BR -
9 GR -
10 V -
11 LG -
12 R -
13 P -
14 G -

Circuit Diagram

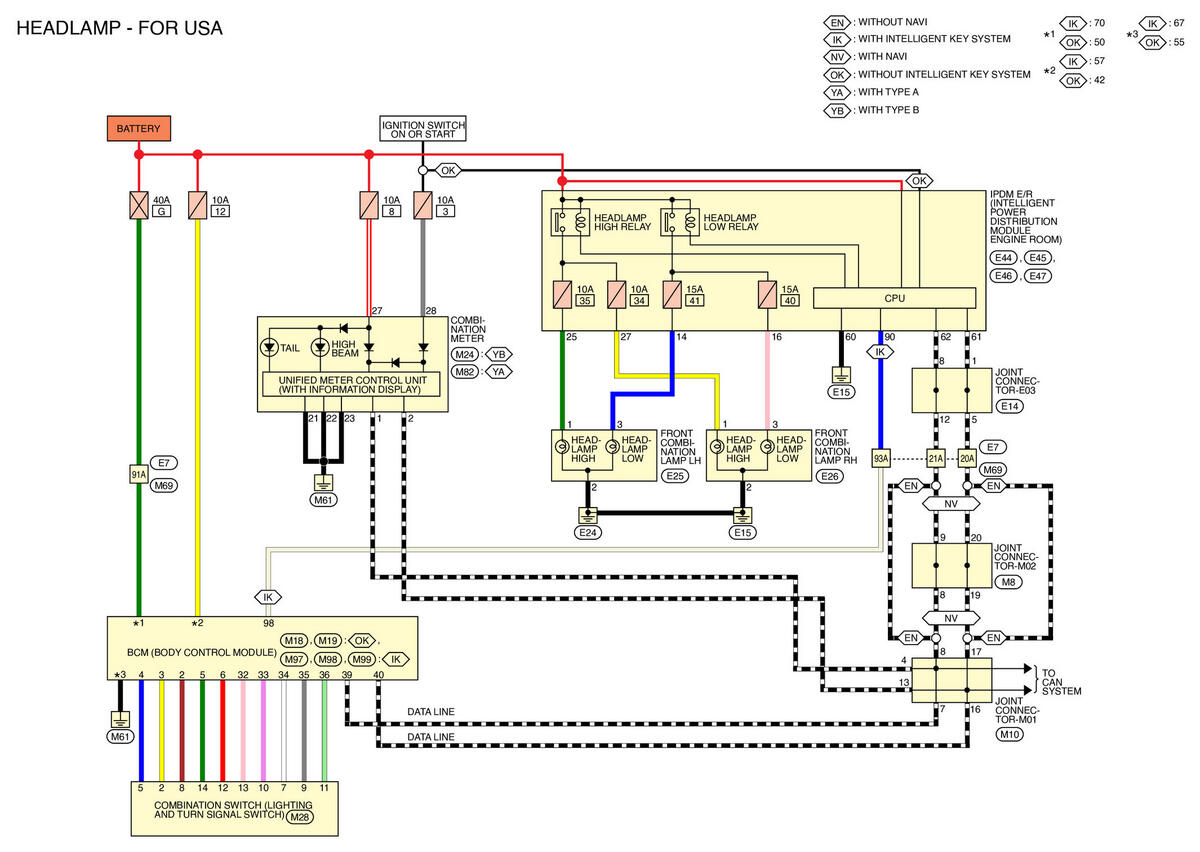

Fig 3: HEADLAMP - FOR USA
GNSW82761Courtesy of NISSAN NORTH AMERICA, INC.

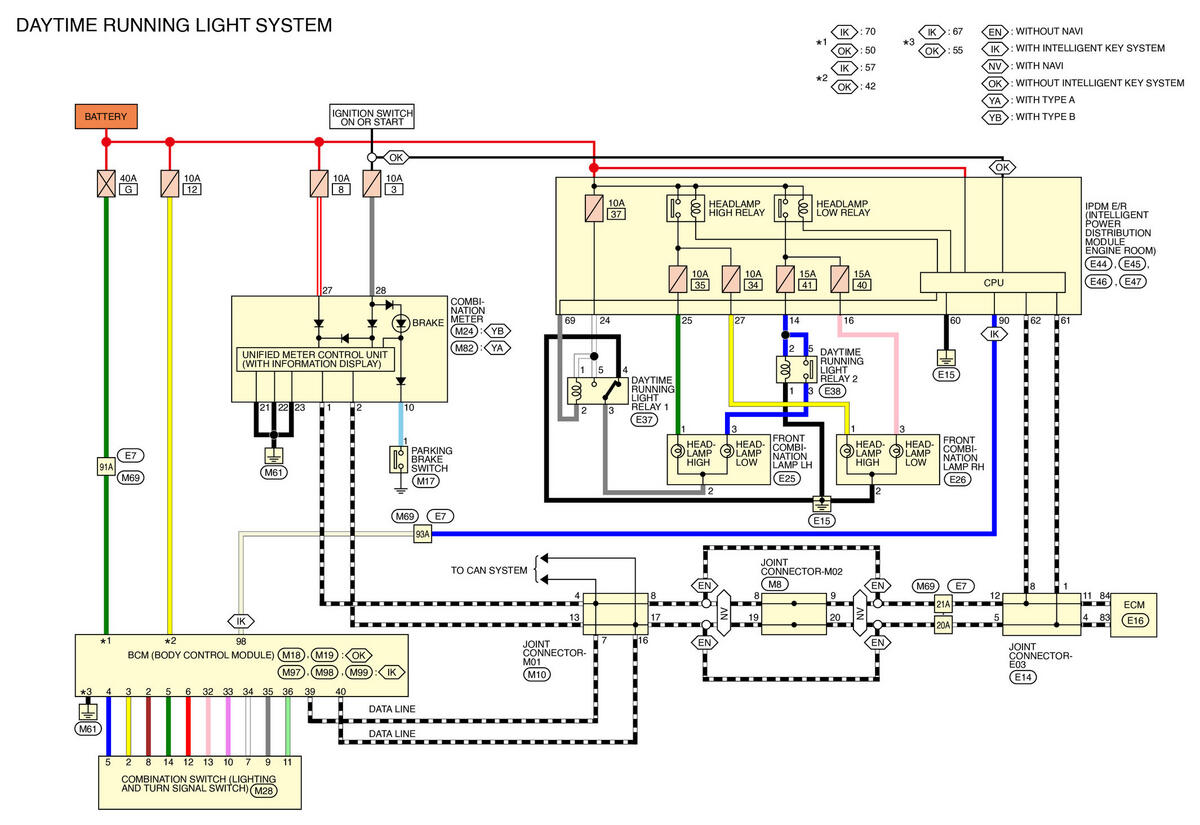

Fig 4: DAYTIME RUNNING LIGHT SYSTEM
GNSW82762Courtesy of NISSAN NORTH AMERICA, INC.

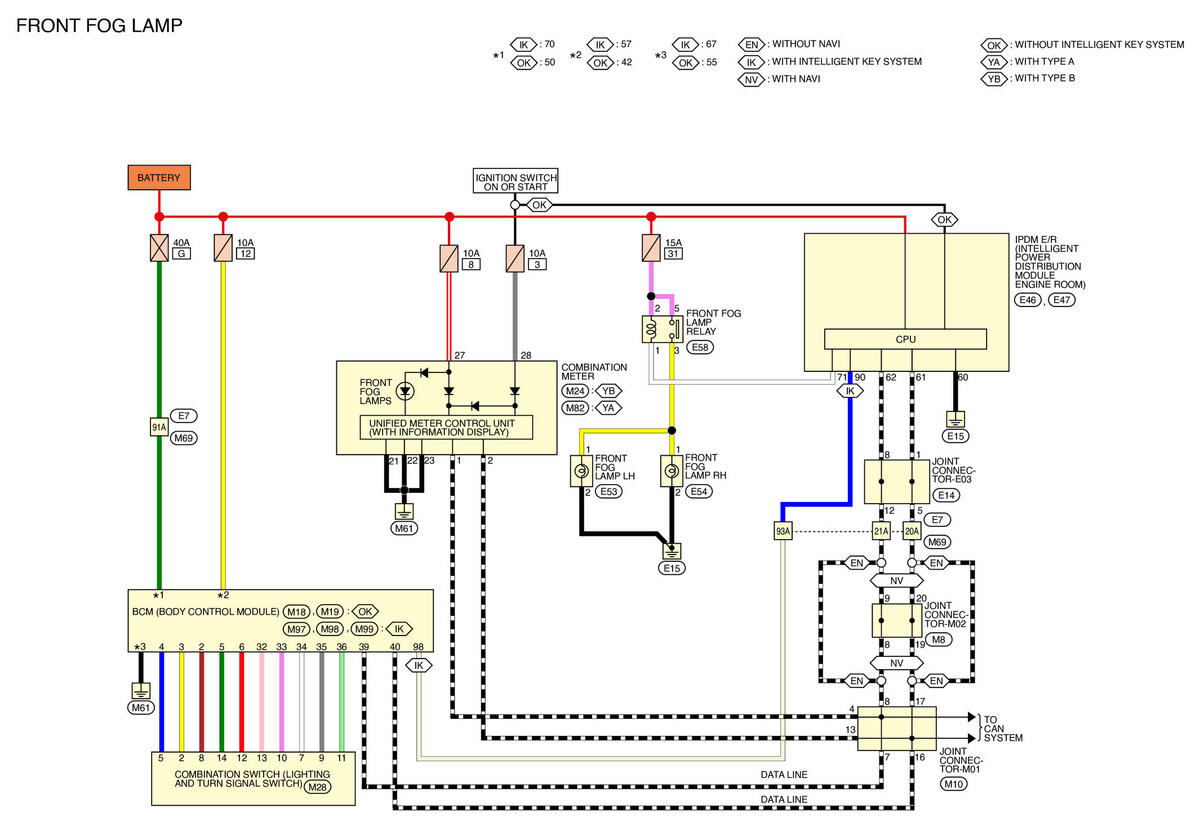

Fig 5: FRONT FOG LAMP
GNSW82763Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: ILLUMINATION
GNSW82766Courtesy of NISSAN NORTH AMERICA, INC.

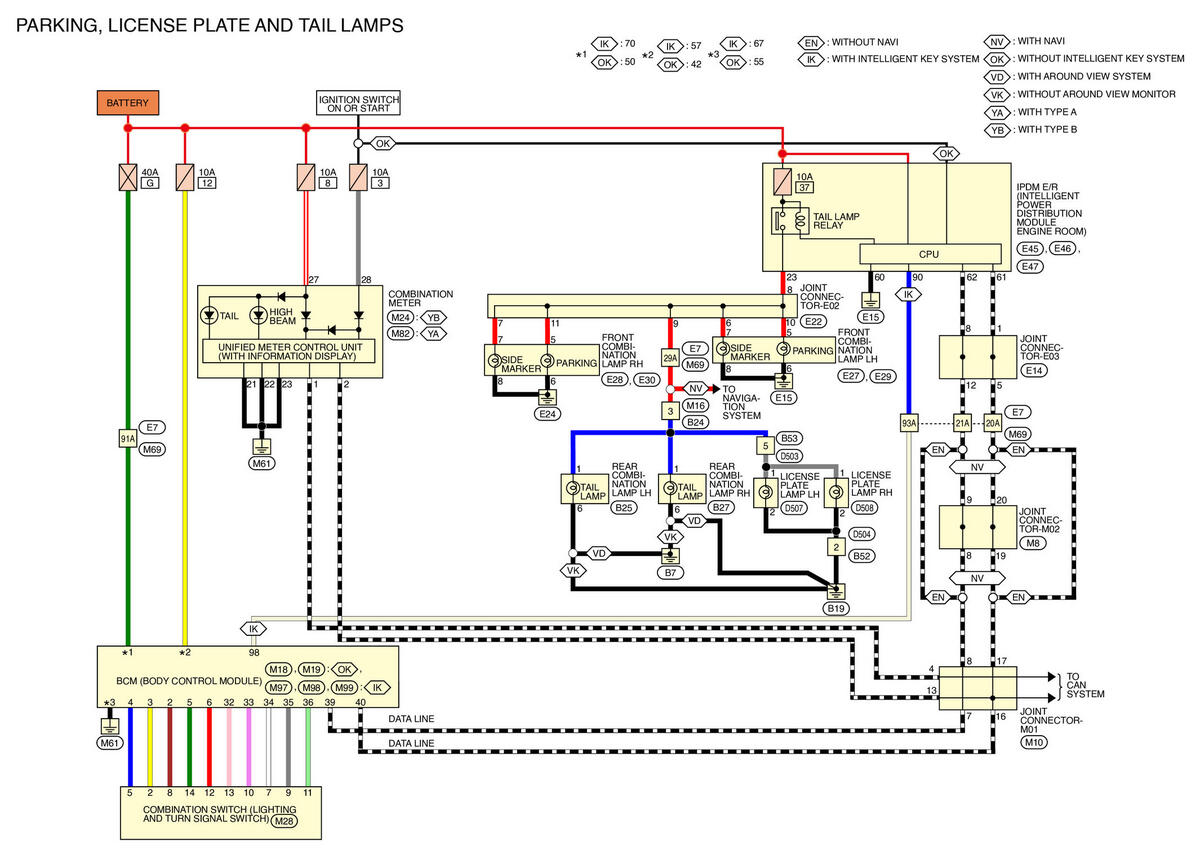

Fig 7: PARKING, LICENSE PLATE AND TAIL LAMPS
GNSW82768Courtesy of NISSAN NORTH AMERICA, INC.

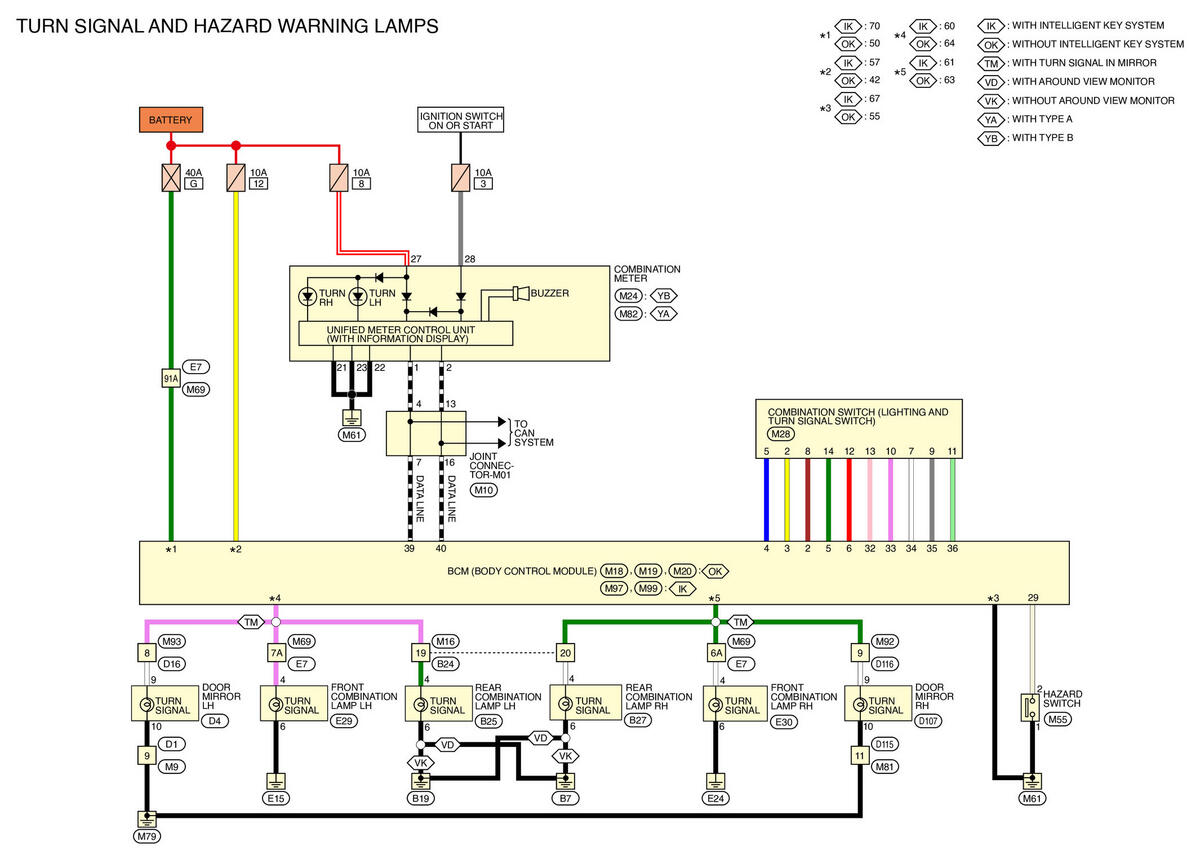

Fig 8: TURN SIGNAL AND HAZARD WARNING LAMPS
GNSW82769Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: FRONT WIPER AND WASHER SYSTEM
GNSW82770Courtesy of NISSAN NORTH AMERICA, INC.

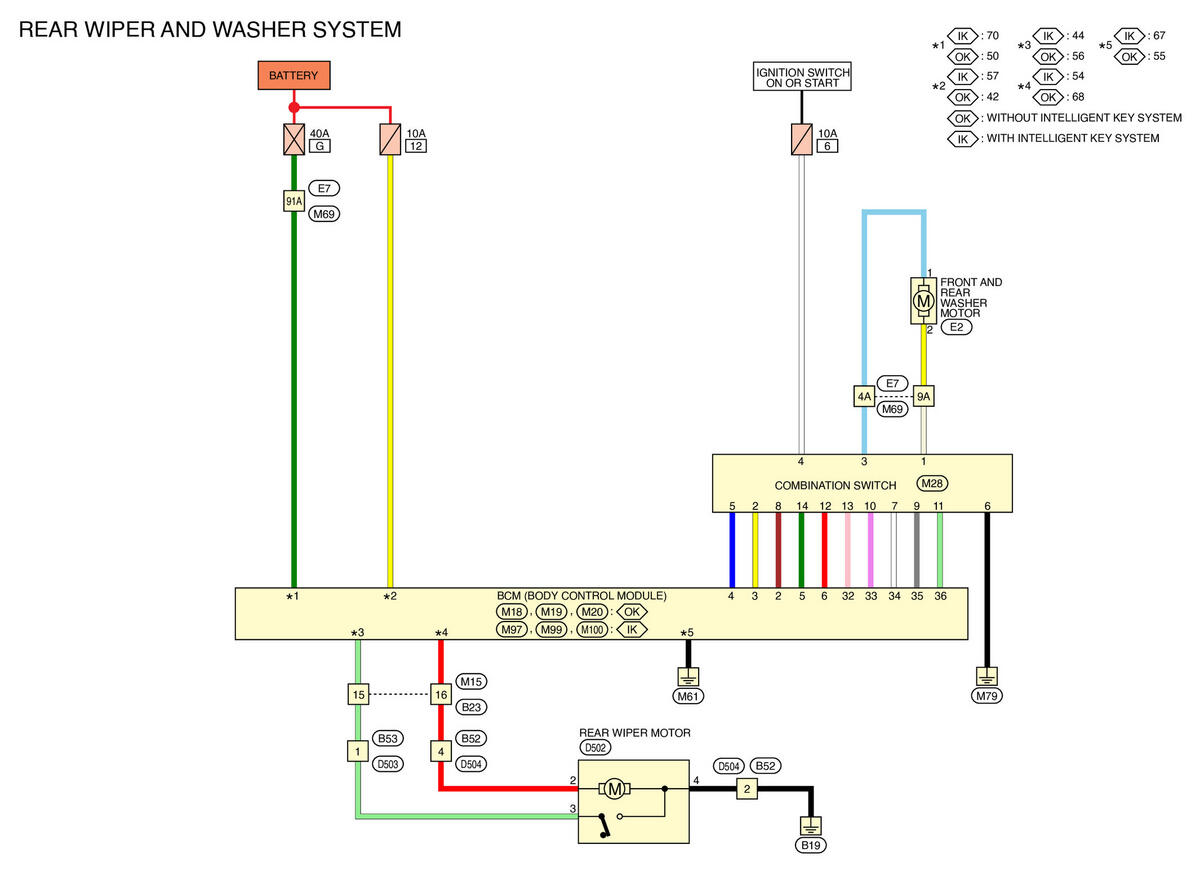

Fig 10: REAR WIPER AND WASHER SYSTEM
GNSW82771Courtesy of NISSAN NORTH AMERICA, INC.

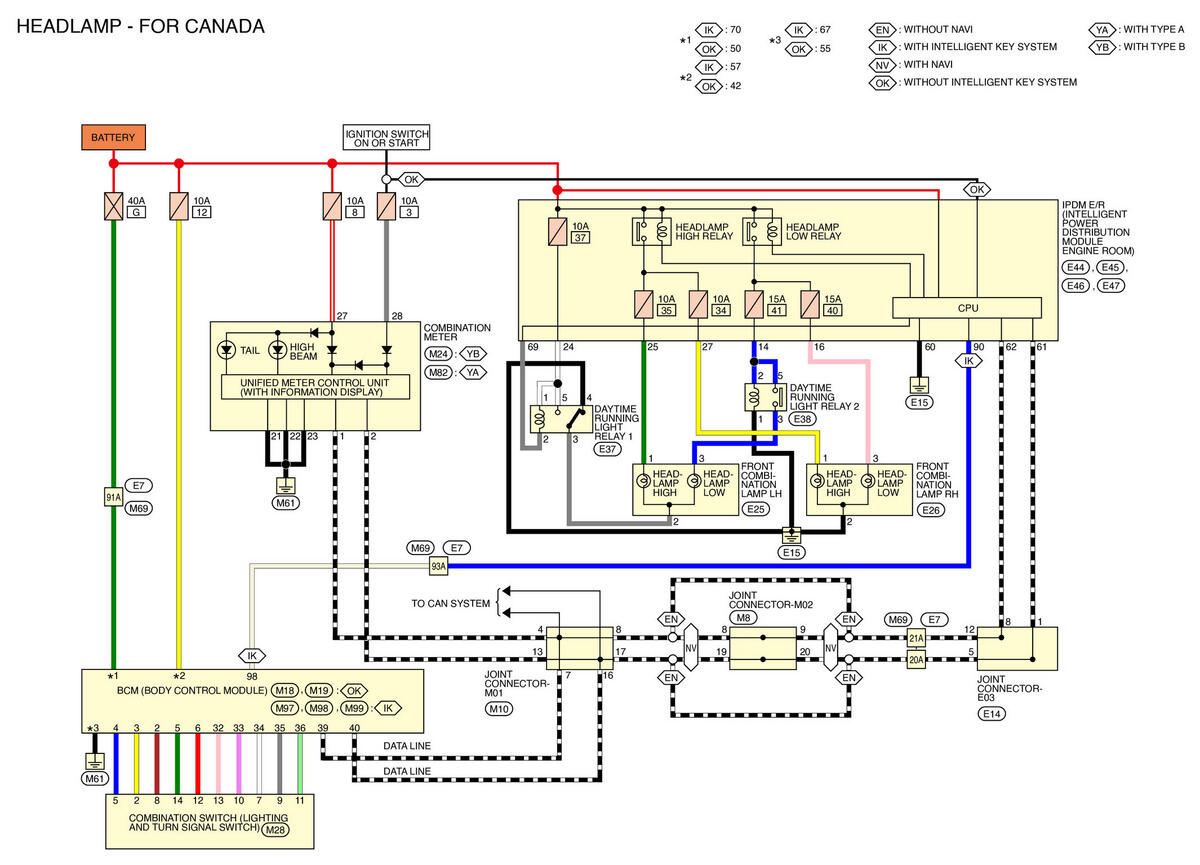

Fig 11: HEADLAMP - FOR CANADA
GNSW82772Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: BCM (BODY CONTROL MODULE) - WITH INTELLIGENT KEY SYSTEM
GNSW82776Courtesy of NISSAN NORTH AMERICA, INC.

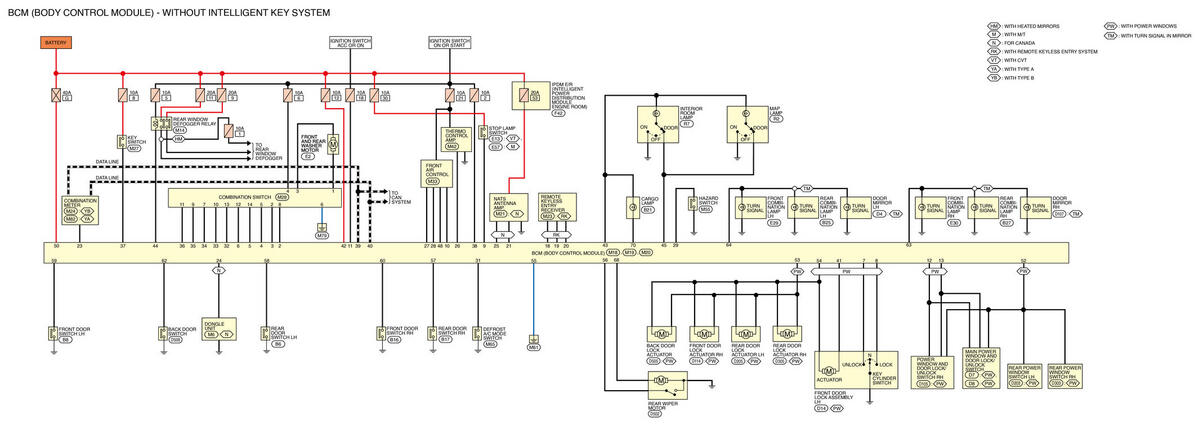

Fig 13: BCM (BODY CONTROL MODULE) - WITHOUT INTELLIGENT KEY SYSTEM
GNSW82778Courtesy of NISSAN NORTH AMERICA, INC.

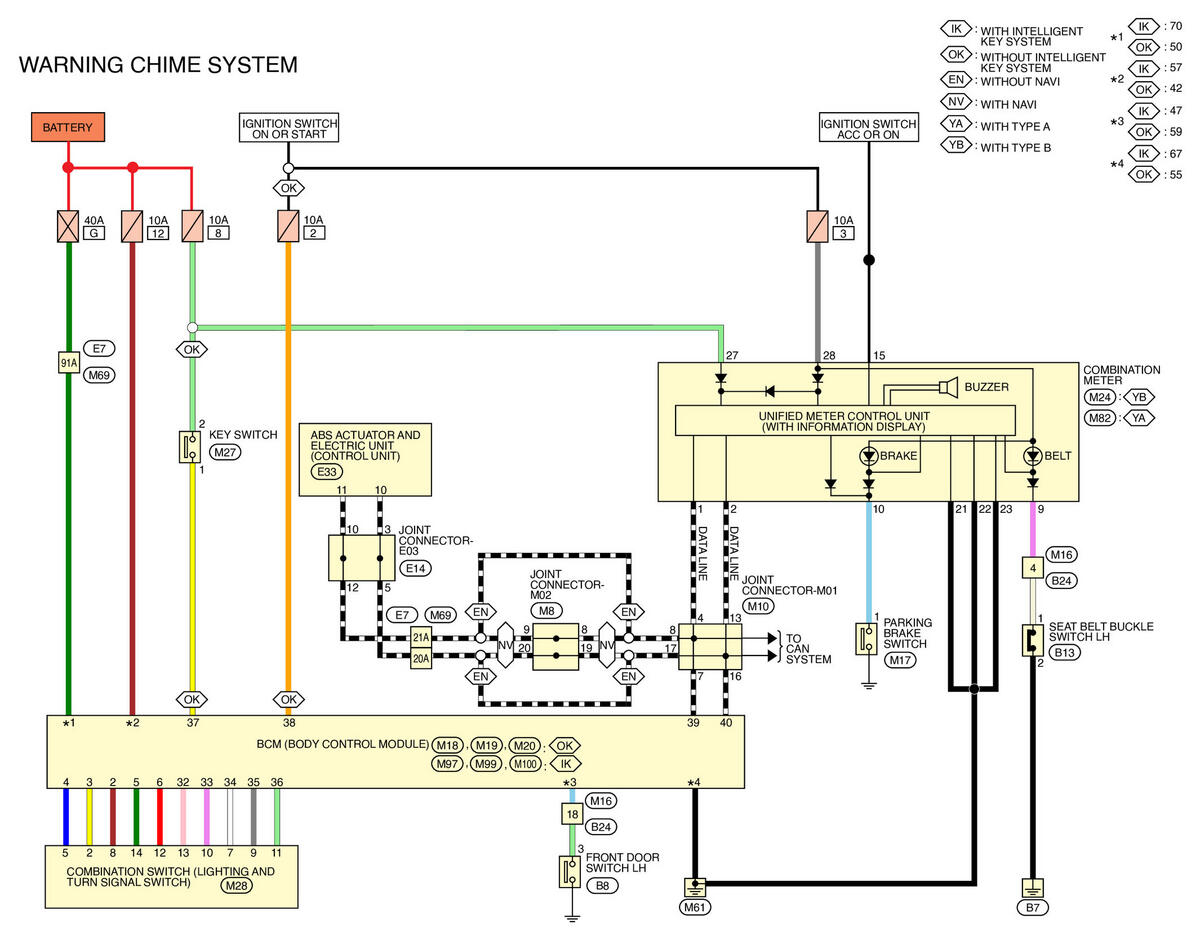

Fig 14: WARNING CHIME SYSTEM
GNSW82781Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

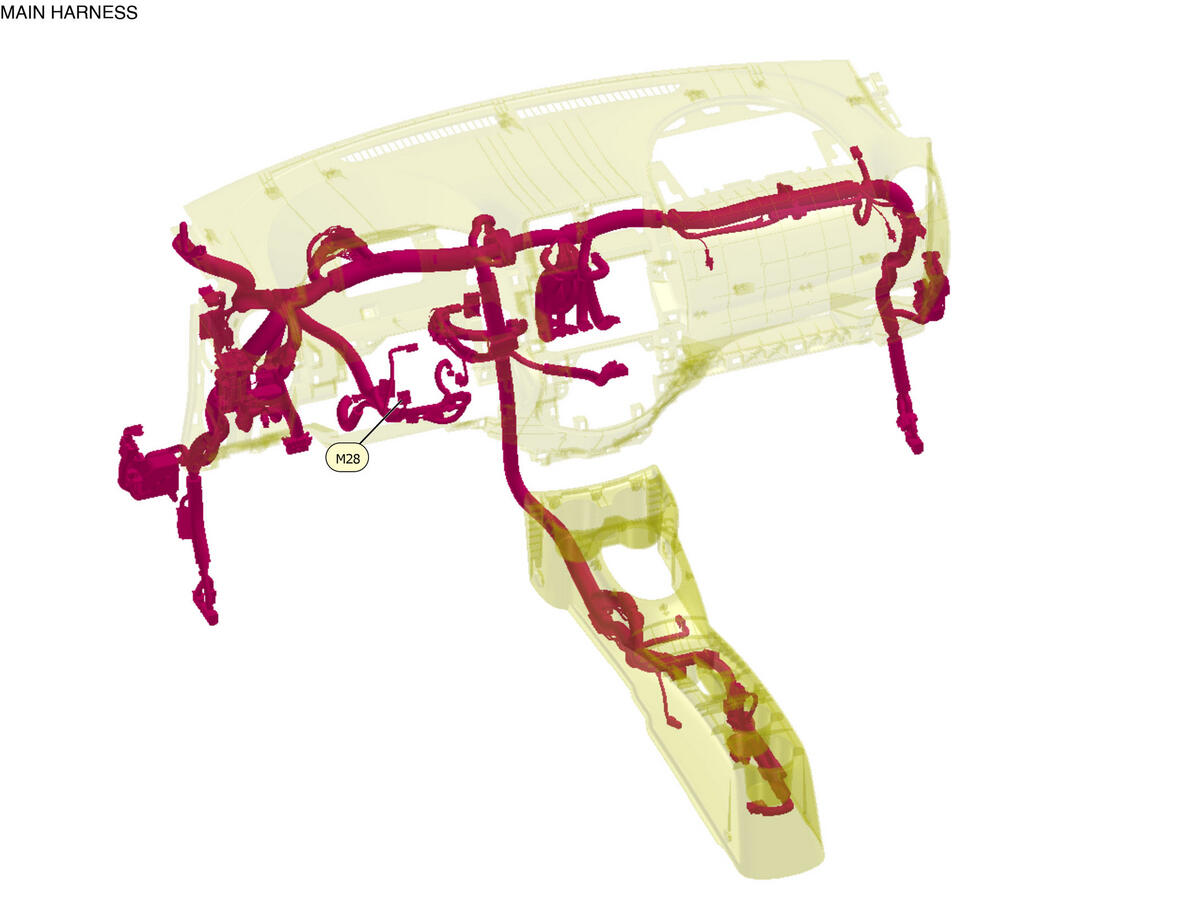

Fig 15: MAIN HARNESS
GNSW83162_LK_M028Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

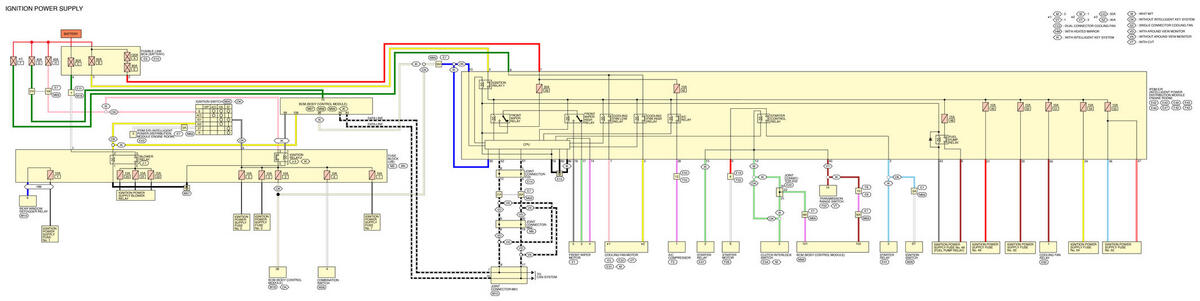

Fig 16: IGNITION POWER SUPPLY
GNSW83180Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  TH16FW-NH
