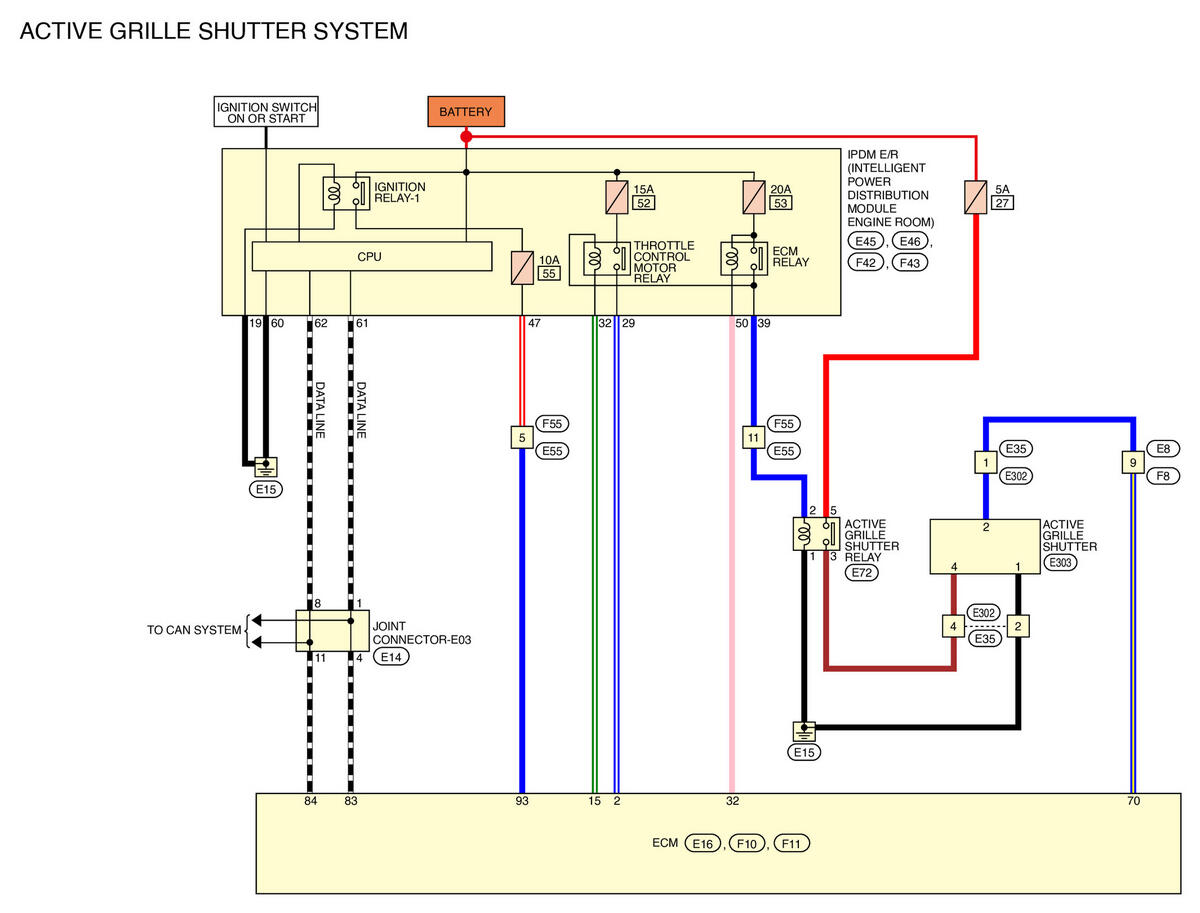

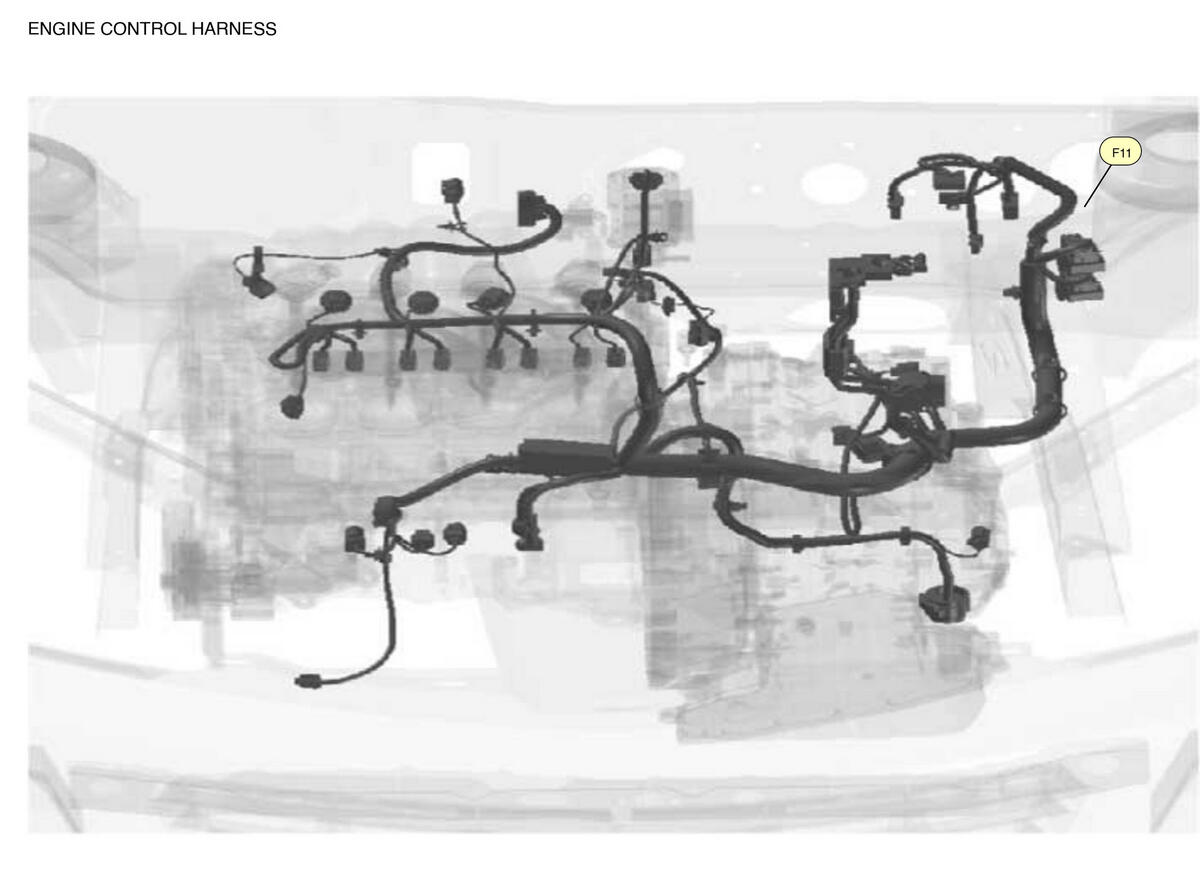

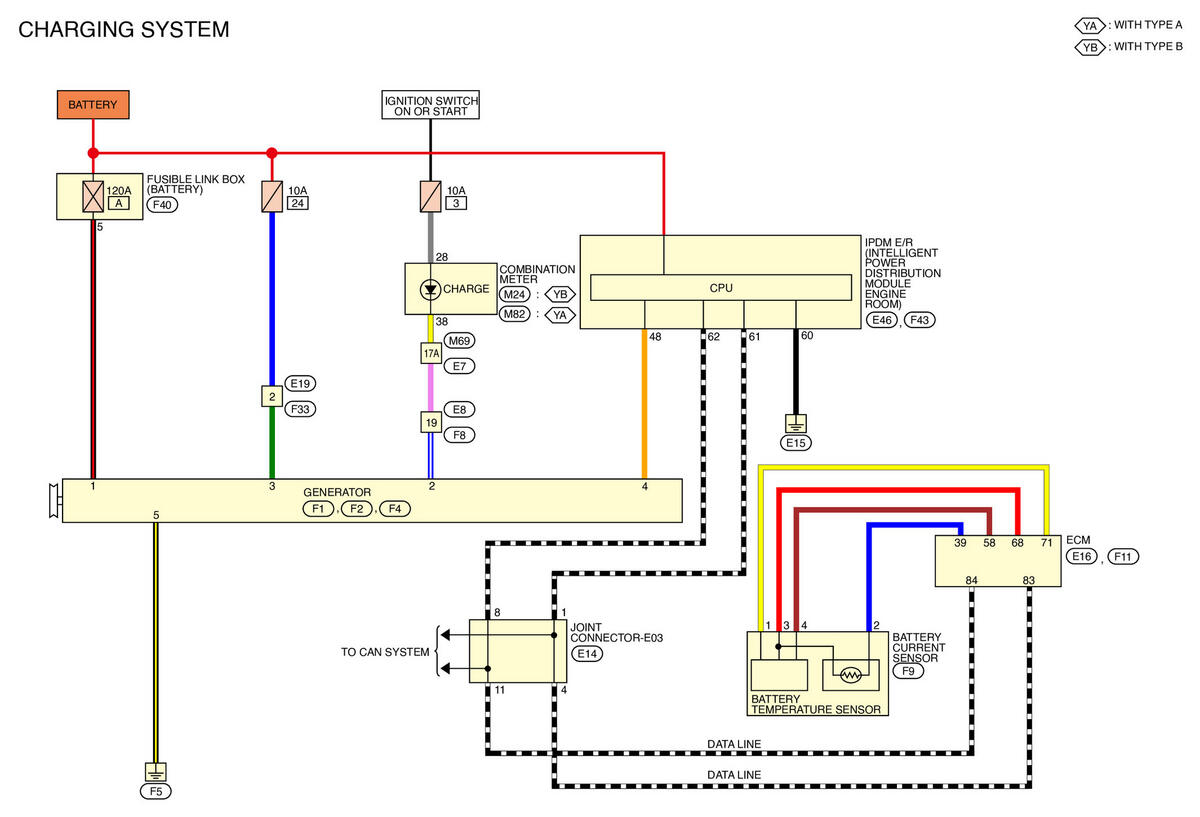

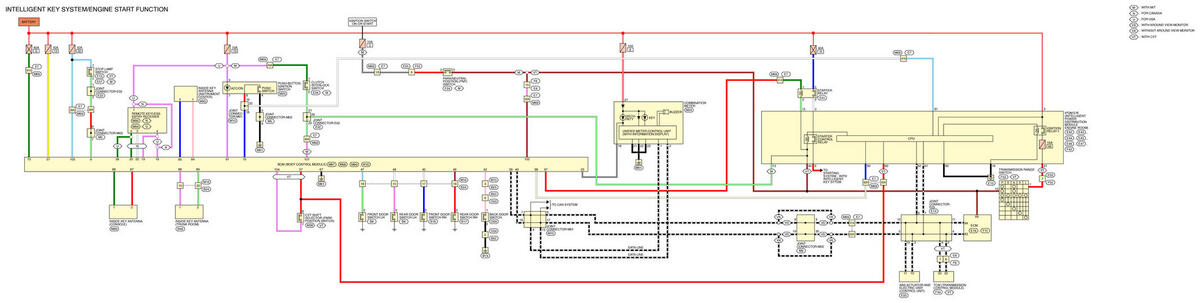

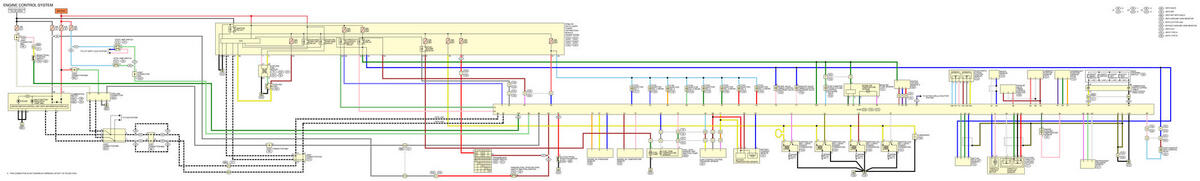

ECM Connector End View (F11)

Connector Color: BROWN

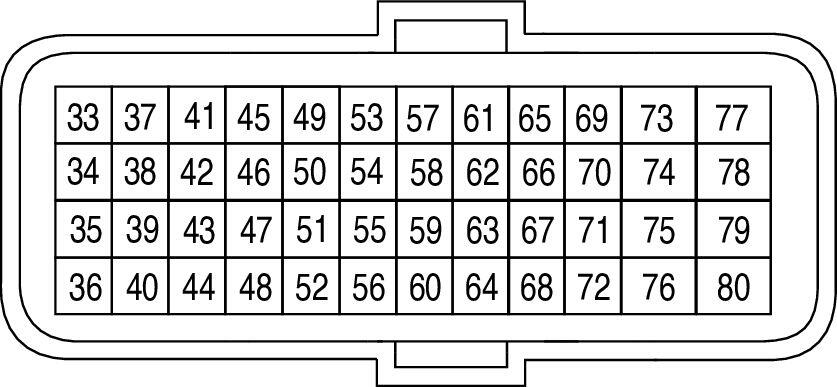

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

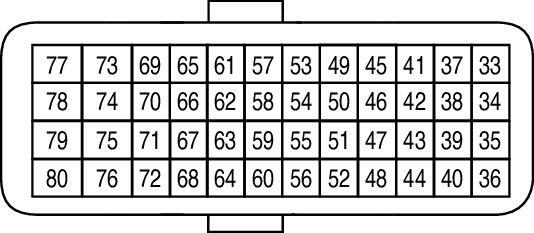

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
33	W	THROTTLE POSITION SENSOR 1
34	B	THROTTLE POSITION SENSOR 2
35	-	-
36	R	SENSOR GROUND (TP SENSOR)
37	W	KNOCK SENSOR
38	LG/B	ENGINE COOLANT TEMPERATURE SENSOR
39	L	BATTERY TEMPERATURE SENSOR
40	L	SENSOR GROUND (KNOCK SENSOR)
41	-	-
42	L	FUEL TANK TEMPERATURE SENSOR
43	SB	EVAP CONTROL SYSTEM PRESSURE SENSOR
44	P	SENSOR GROUND (ECT SENSOR)
45	G/B	MASS AIR FLOW SENSOR
46	V	NTAKE AIR TEMPERATURE SENSOR
47	Y	ENGINE OIL PRESSURE SENSOR
48	W/R	EXHAUST VALVE TIMING CONTROL POSITION SENSOR
49	G	A/F SENSOR 1
50	L/R	HEATED OXYGEN SENSOR 2
51	P	SENSOR GROUND (FUEL TANK TEMPERATURE SENSOR)
52	LG	SENSOR GROUND (MAF SENSOR/IAT SENSOR)
53	L	A/F SENSOR 1
54	BR	SENSOR GROUND (EOT SENSOR)
55	G/L	SENSOR GROUND (IAT SENSOR)
56	-	-
57	P	ENGINE OIL TEMPERATURE SENSOR
58	BR	BATTERY CURRENT SENSOR
59	L/Y	SENSOR GROUND (HO2S 2)
60	L	SENSOR GROUND (EOP SENSOR)
61	L/O	CRANKSHAFT POSITION SENSOR
62	G	SENSOR GROUND (CKP SENSOR)
63	W	SENSOR GROUND (CMP SENSOR / EXHAUST VALVE TIMING POSITION SENSOR)
64	-	-
65	R/W	CAMSHAFT POSITION SENSOR
66	-	-
67	-	-
68	R	SENSOR GROUND (BATTERY CURRENT SENSOR)
69	BR	PARK/NEUTRAL POSITION SIGNAL
70	L/Y	ENGINE COMMUNICATION LINE
71	Y	SENSOR POWER SUPPLY (BATTERY CURRENT SENSOR)
72	G	SENSOR POWER SUPPLY (TP SENSOR)
73	P	INTAKE VALVE TIMING CONTROL SOLENOID VALVE
74	O	SENSOR POWER SUPPLY (EOP SENSOR)
75	O	SENSOR POWER SUPPLY (CKP SENSOR)
76	-	-
77	P/W	EXHAUST VALVE TIMING CONTROL SOLENOID VALVE
78	BR	SENSOR POWER SUPPLY (CMP SENSOR / EXHAUST VALVE TIMING POSITION SENSOR)
79	-	-
80	-	-
