USB INTERFACE Connector End View (M47)
Connector Color:
BLACK
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
- (WITHOUT NAVI) |
| 1 |
W |
- (WITH NAVI) |
| 2 |
R |
- |
| 3 |
G |
- (WITHOUT NAVI) |
| 3 |
L |
- (WITH NAVI) |
| 4 |
W |
- |
| 5 |
R |
- (WITHOUT NAVI) |
| 5 |
G |
- (WITH NAVI) |
| 6 |
SHIELD |
- |

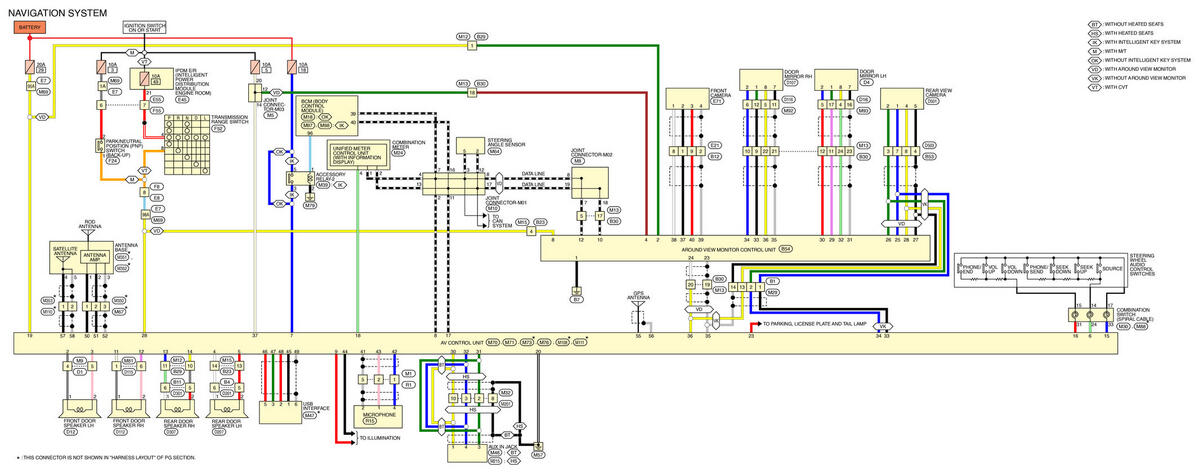

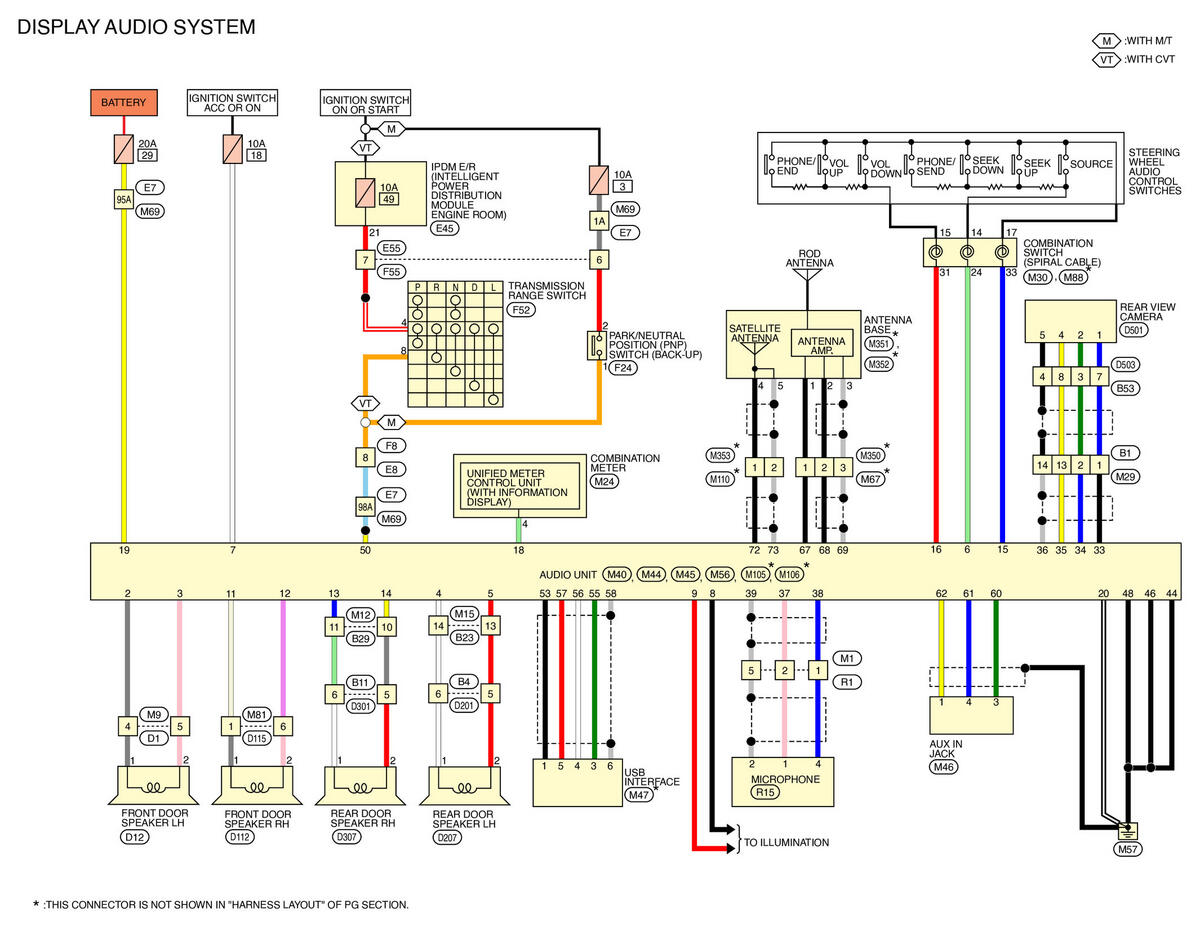

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Harness Layout
Connector Types:
111014-9000
