WASHER FLUID LEVEL SWITCH Connector End View (E50)
Connector Color:
BROWN
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
R |
- |
| 2 |
B |
- |

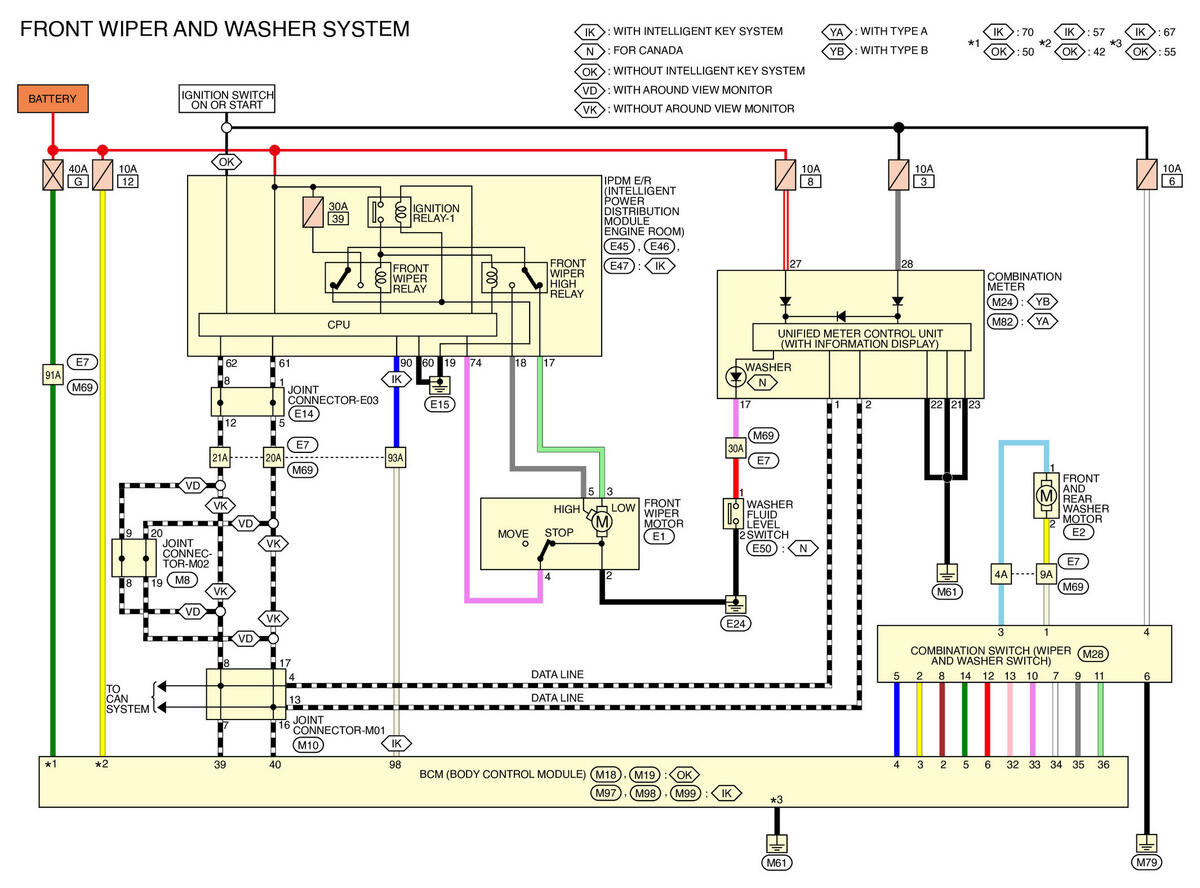

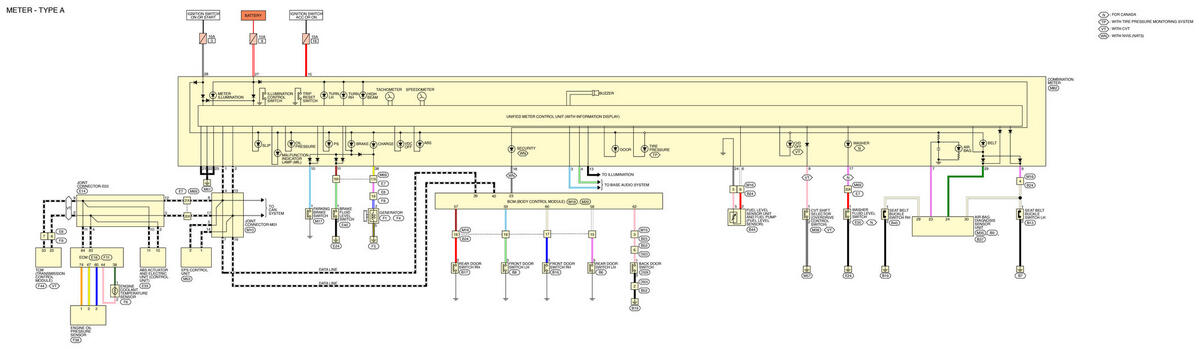

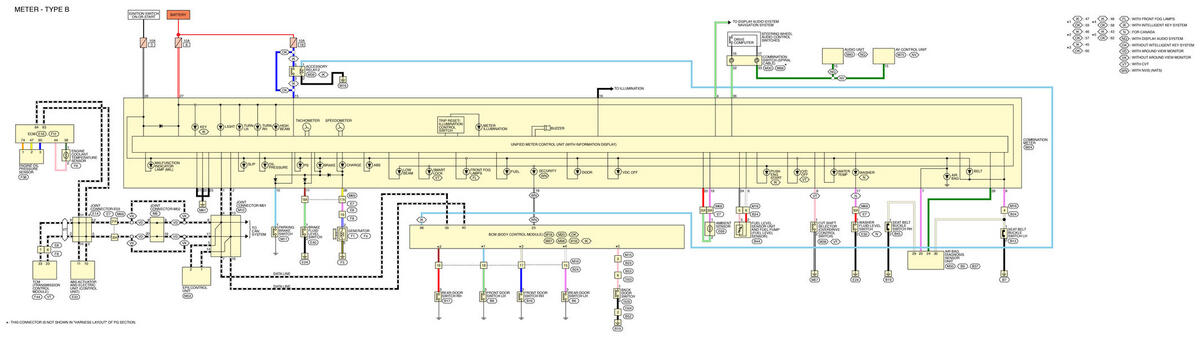

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.

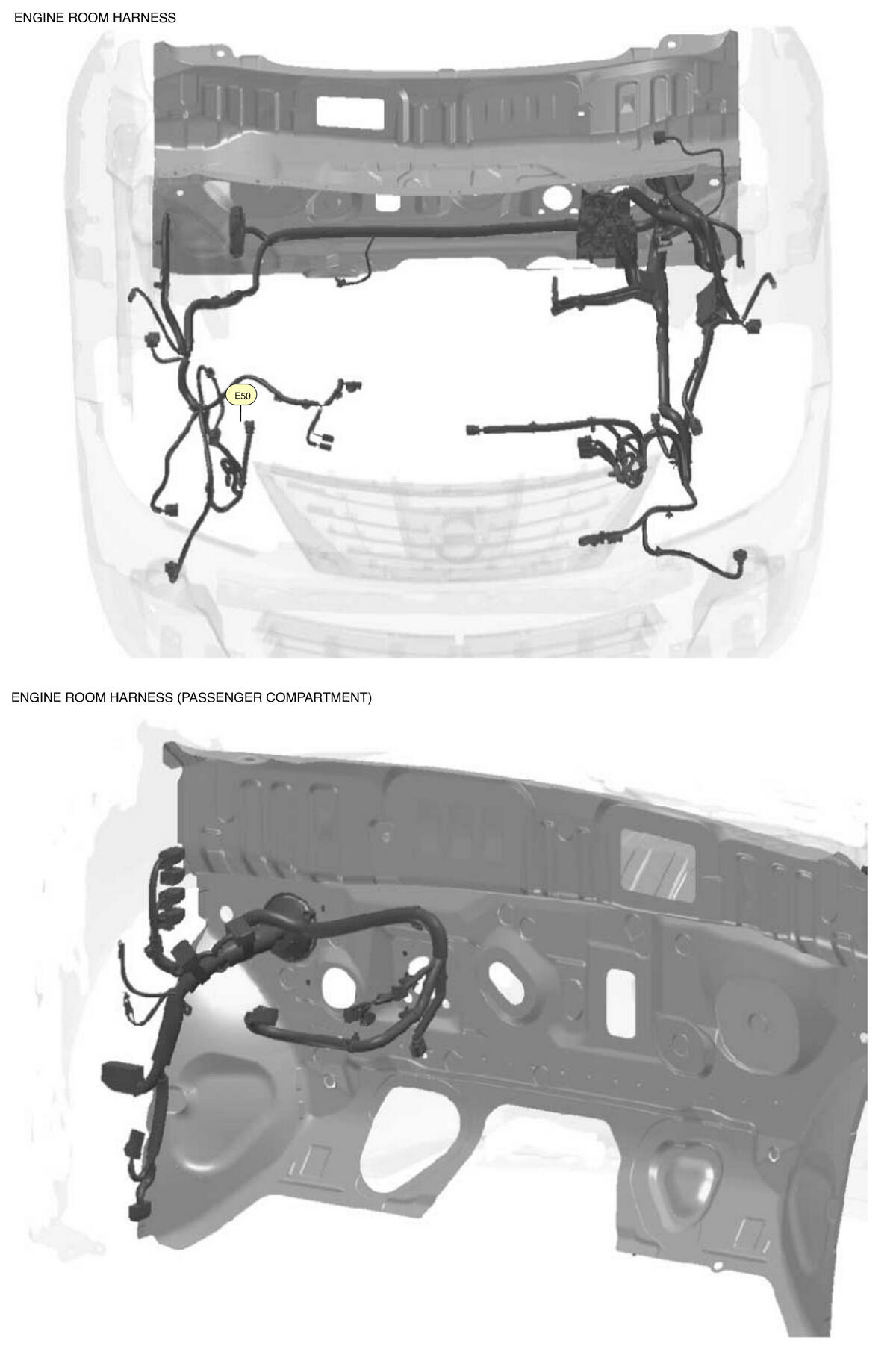

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
Z02FBR
