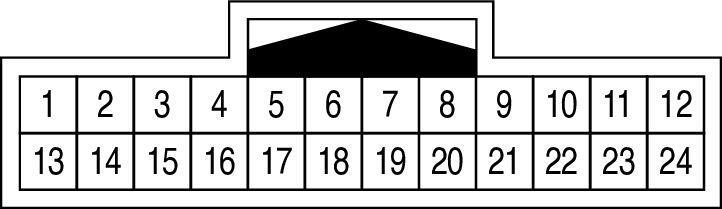

WIRE TO WIRE Connector End View (E8)

Connector Color:  WHITE

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

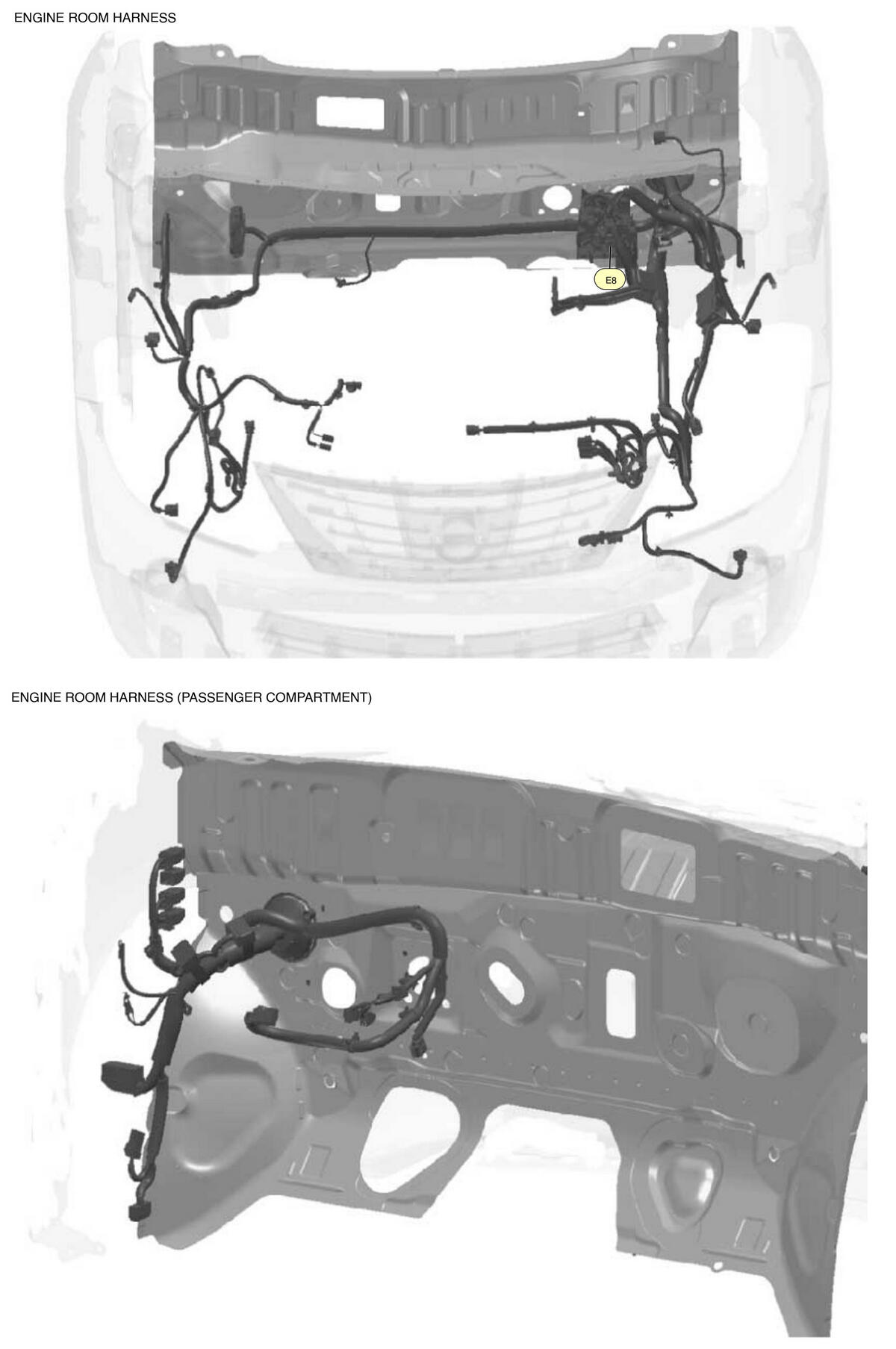

Harness Layout

Fig 3: ENGINE ROOM HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  TH24MW-NH
