WIRE TO WIRE Connector End View (M13)
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
- |
- |
| 2 |
L |
- |
| 3 |
P |
- |
| 4 |
G |
- |
| 5 |
L |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
B |
- |
| 10 |
L |
- |
| 11 |
V |
- |
| 12 |
R |
- |
| 13 |
- |
- |
| 14 |
- |
- |
| 15 |
O |
- |
| 16 |
SHIELD |
- |
| 17 |
P |
- |
| 18 |
G |
- |
| 19 |
SHIELD |
- |
| 20 |
G |
- |
| 21 |
SHIELD |
- |
| 22 |
Y |
- |
| 23 |
SHIELD |
- |
| 24 |
LG |
- |

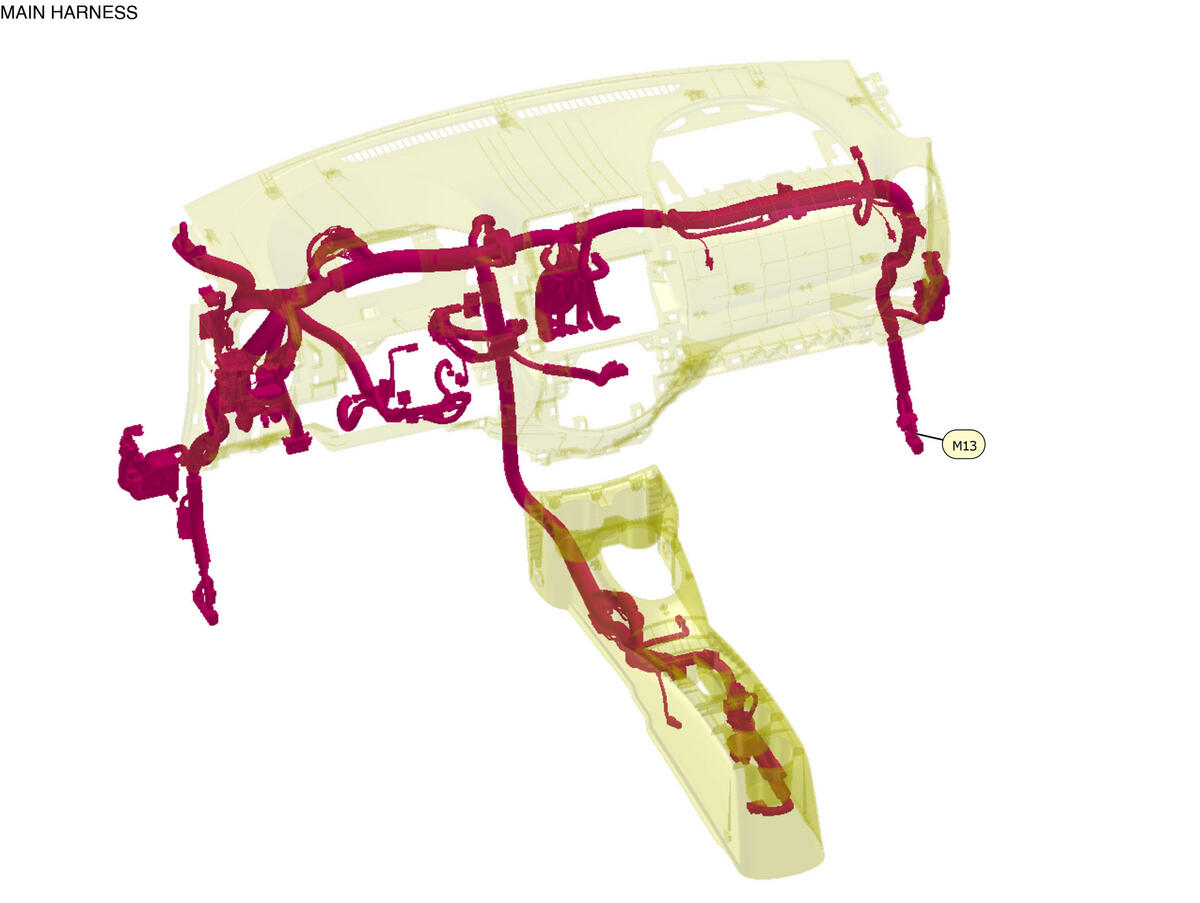

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
TH24FW-NH
