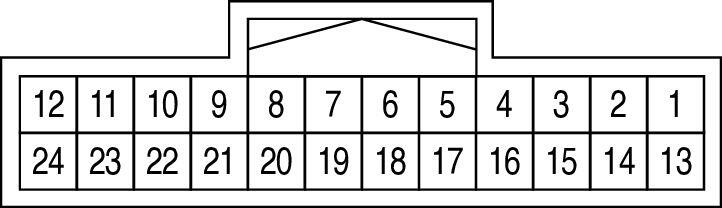

WIRE TO WIRE Connector End View (M29)
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | B | - |
| 2 | L | - |
| 3 | - | - |
| 4 | SHIELD | - |
| 5 | P | - |
| 6 | G | - |
| 7 | SB | - |
| 8 | V | - |
| 9 | BR | - |
| 10 | BG | - |
| 11 | LG | - |
| 12 | P | - |
| 13 | Y | - |
| 14 | SHIELD | - |
| 15 | - | - |
| 16 | L | - |
| 17 | SHIELD | - |
| 18 | R | - |
| 19 | LG | - |
| 20 | GR | - |
| 21 | L | - |
| 22 | R | - |
| 23 | L | - |
| 24 | SB | - |

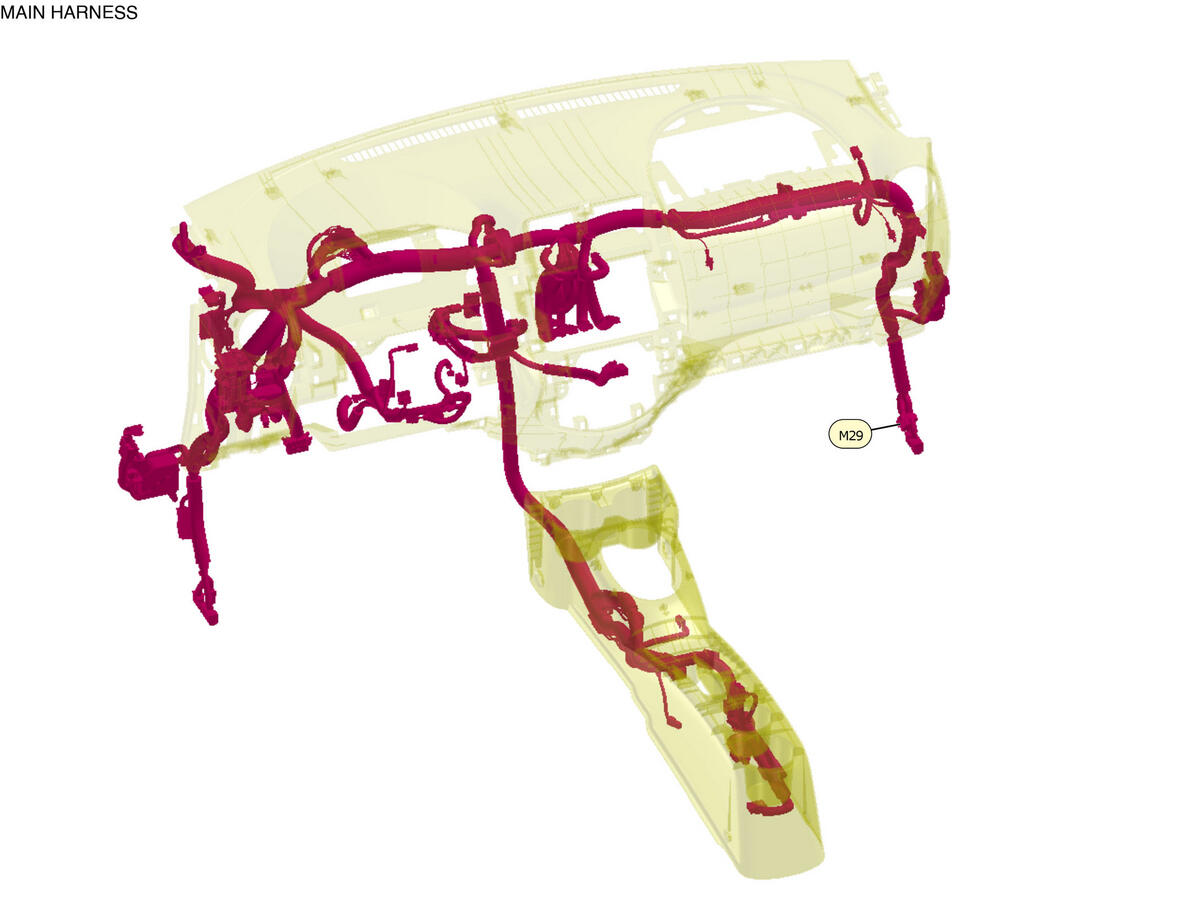

Harness Layout
Connector Types: TH24FW-NH
