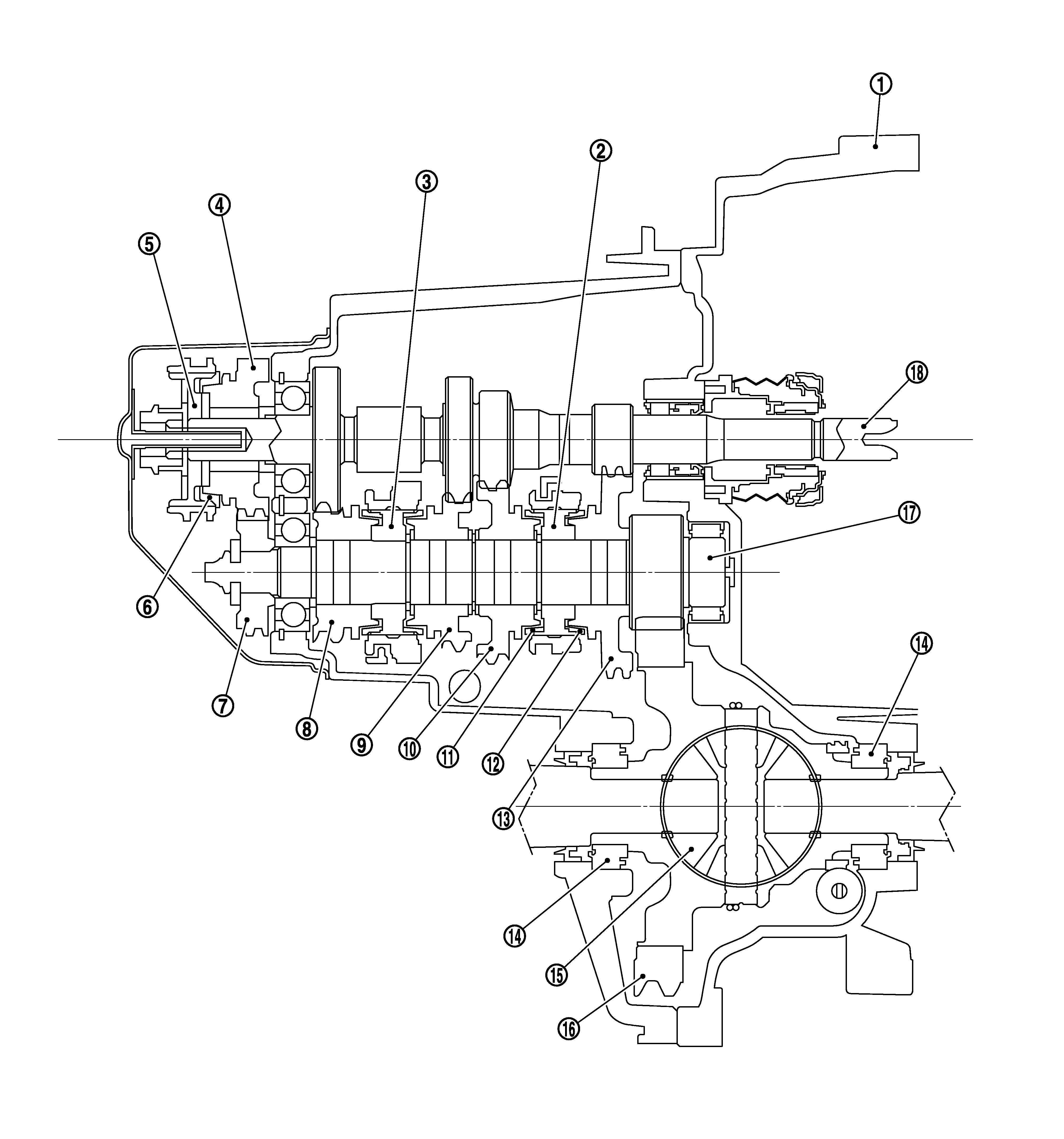

Sectional View
| 1. | Clutch housing | 2. | 1st-2nd synchronizer hub assembly | 3. | 3rd-4th synchronizer hub assembly |
| 4. | 5th input gear | 5. | 5th-reverse synchronizer hub assembly | 6. | 5th-reverse baulk ring |
| 7. | 5th main gear | 8. | 4th main gear | 9. | 3rd main gear |
| 10. | 2nd main gear | 11. | 2nd double-cone synchronizer | 12. | 1st double-cone synchronizer |
| 13. | 1st main gear | 14. | Differential side bearing | 15. | Differential |
| 16. | Final gear | 17. | Mainshaft | 18. | Input shaft |
