Case And Housing

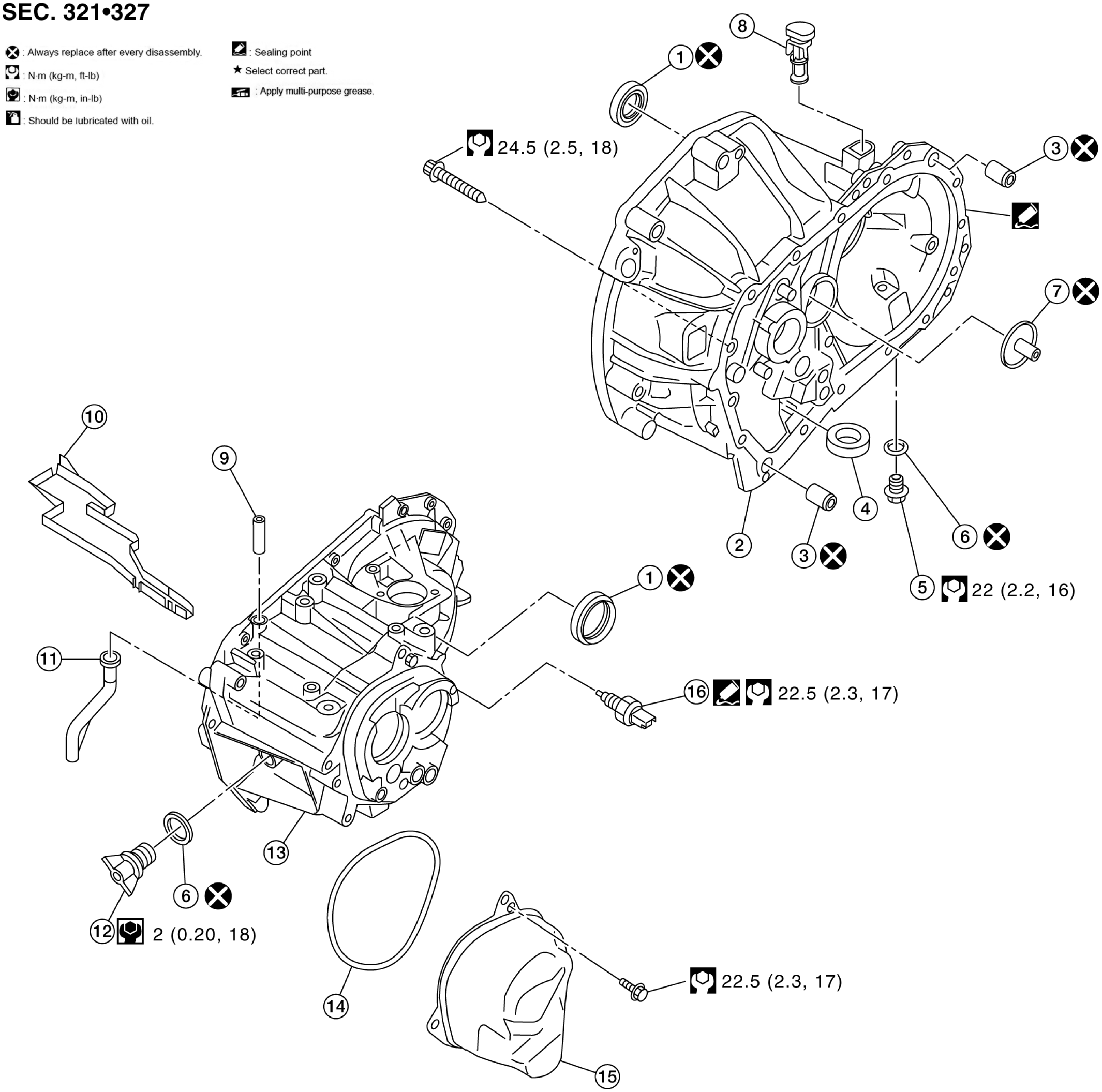

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Differential side oil seal	2.	Clutch housing	3.	Dowel pin
4.	Magnet	5.	Drain plug	6.	Gasket
7.	Oil channel	8.	Plug	9.	2-way connector
10.	Oil gutter	11.	Air breather inner tube	12.	Filler plug
13.	Transaxle case	14.	O-ring	15.	Rear housing
16.	Position switch
: Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
