Exploded View With Torque Specifications

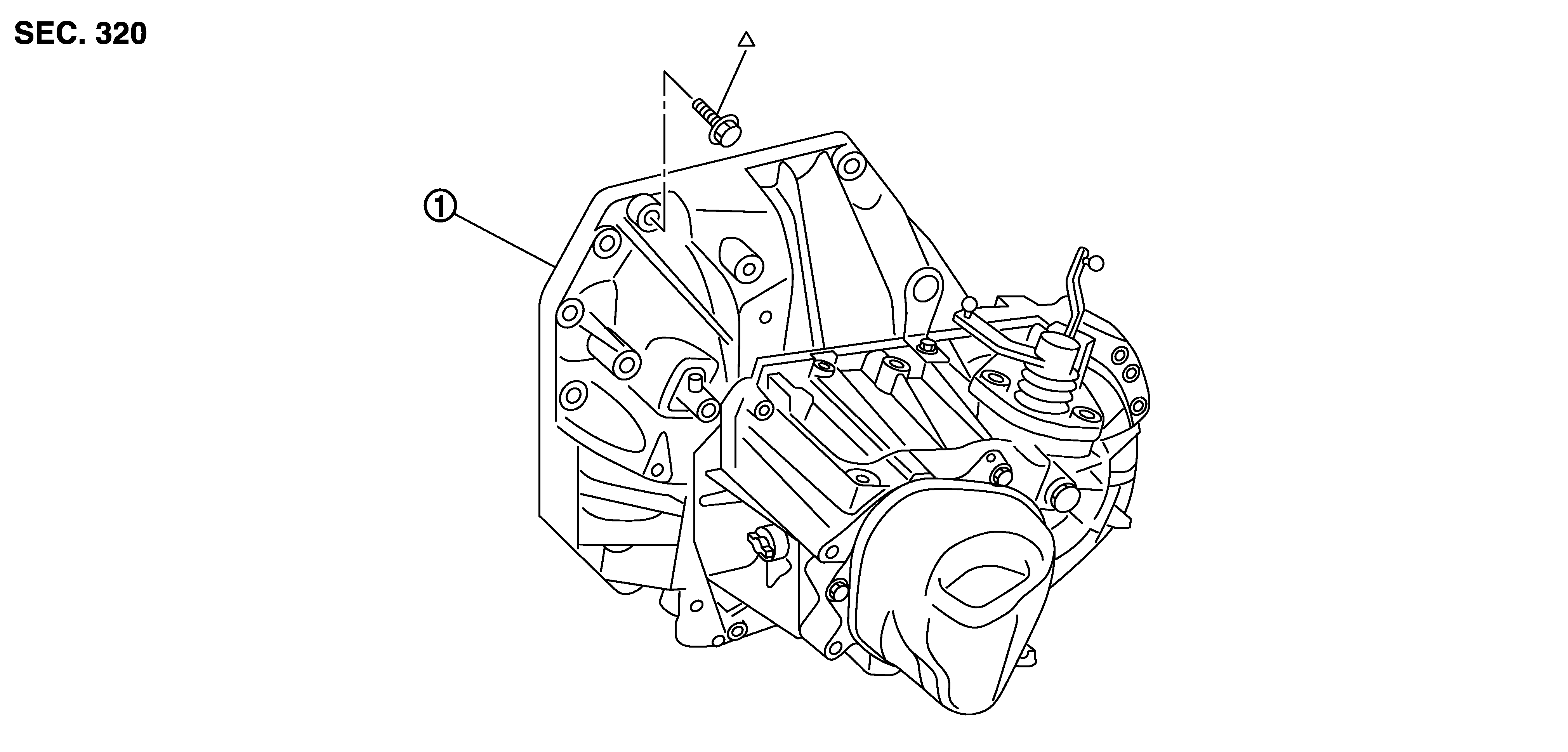

Fig 1: Exploded View Of Transaxle Assembly
GNSJPDIC0478ZZ-478Courtesy of NISSAN NORTH AMERICA, INC.
1. Transaxle assembly
UTRI : Refer to "INSTALLATION" in REMOVAL AND INSTALLATION  for the locations and tightening torque.
