Exploded View With Torque Specifications

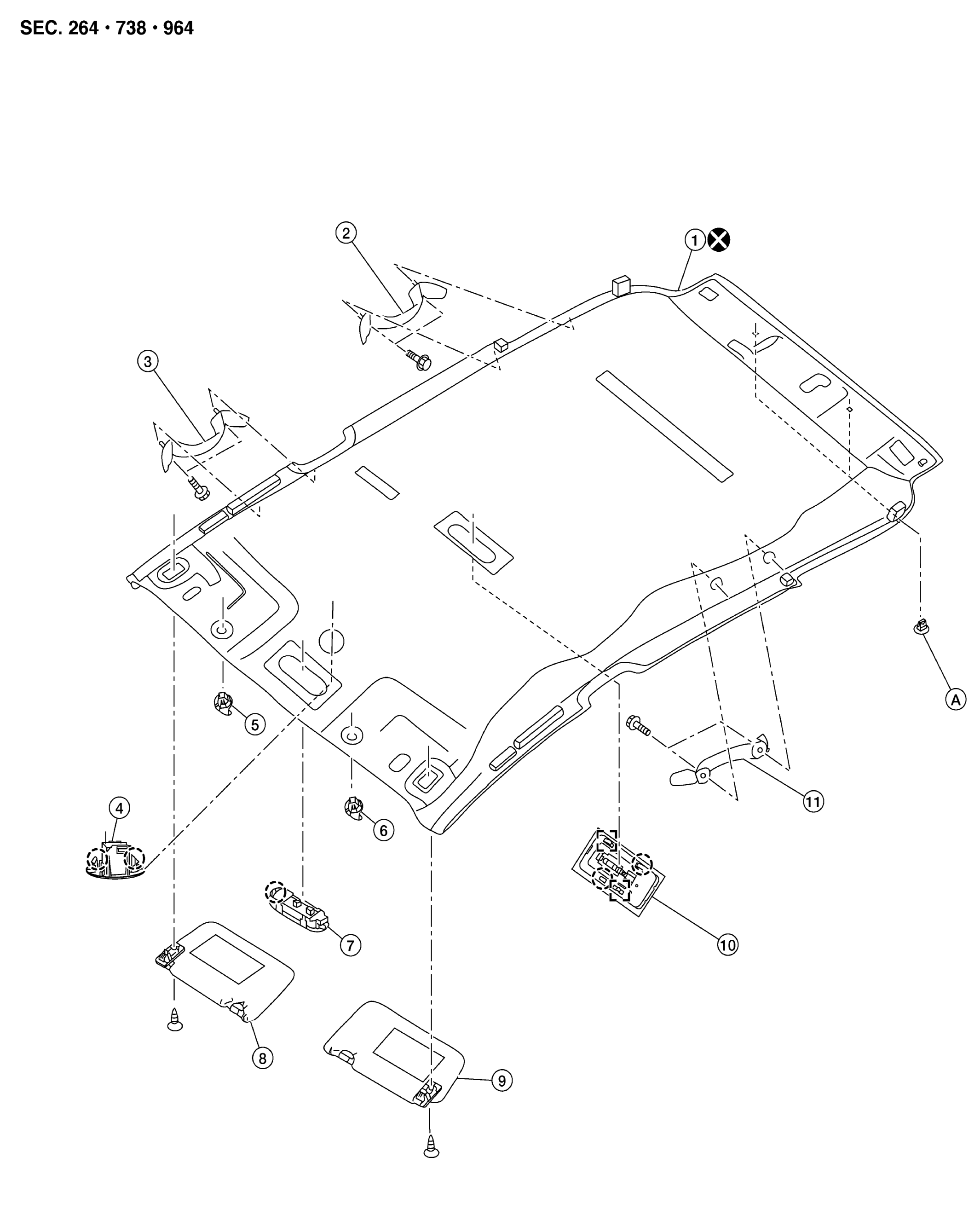

Fig 1: Exploded View Of Headlining

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining	2.	Rear assist grip (RH)	3.	Front assist grip (RH)
4.	Microphone (if equipped)	5.	Sun visor holder (RH)	6.	Sun visor holder (LH)
7.	Map lamp	8.	Sun visor (RH)	9.	Sun visor (LH)
10.	Interior room lamp	11.	Rear assist grip (LH)	A.	Headlining clip
	Pawl		Metal clip
