Removal And Installation: Removal

  1. Remove rear power window switch door handle pull escutcheon.
  2. Remove screw (A) from rear power window switch finisher.

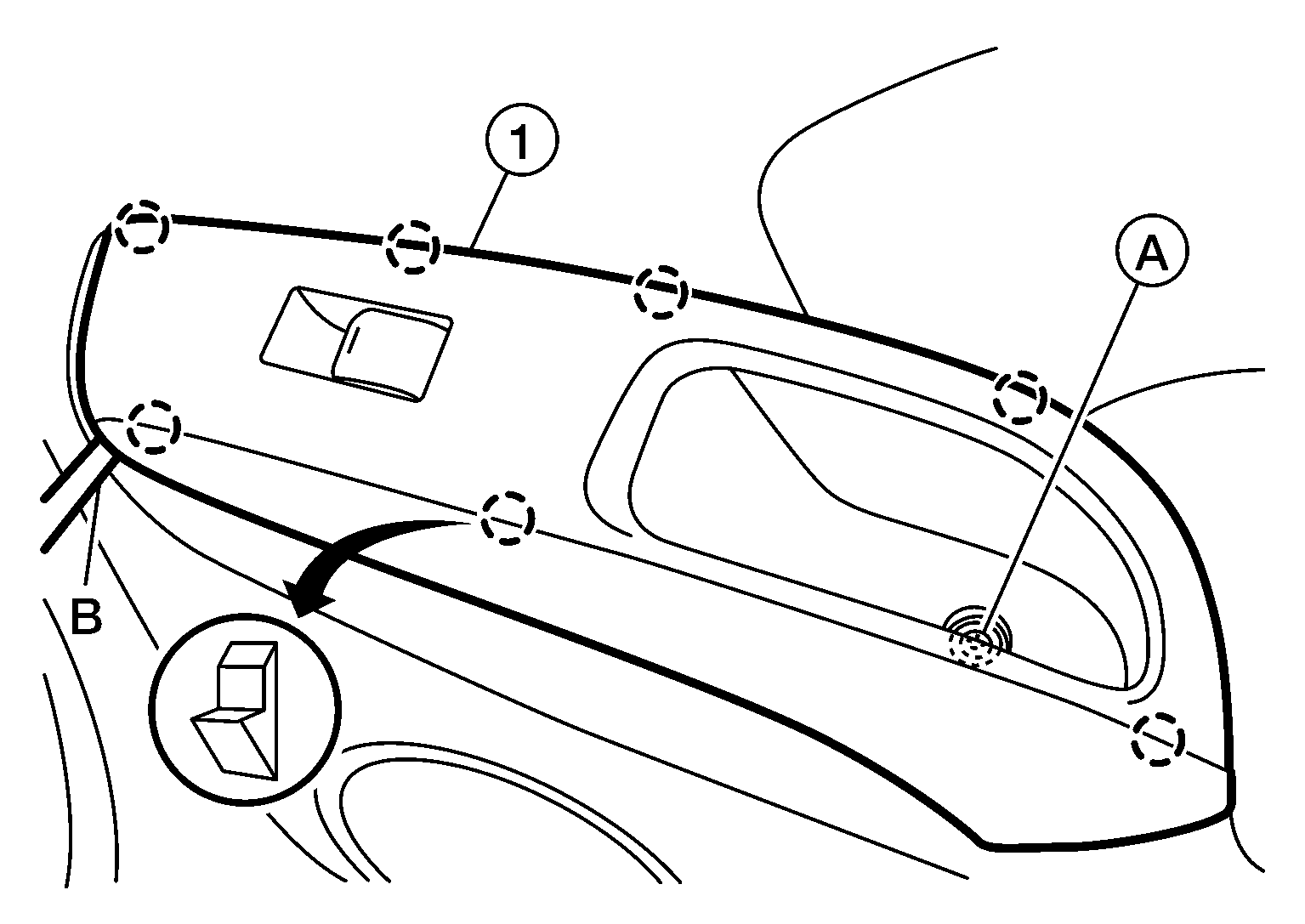

    Fig 1: Screw (A) And Rear Power Window Switch Finisher
    GNSAWKIA2510ZZ-510Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove rear power window switch finisher (1) using a suitable tool (B).

    MARU-H : Pawl

  4. Disconnect the harness connector from the rear power window switch.
  5. Release pawls and remove rear power window switch (1) from rear power window switch finisher (2) using a suitable tool.

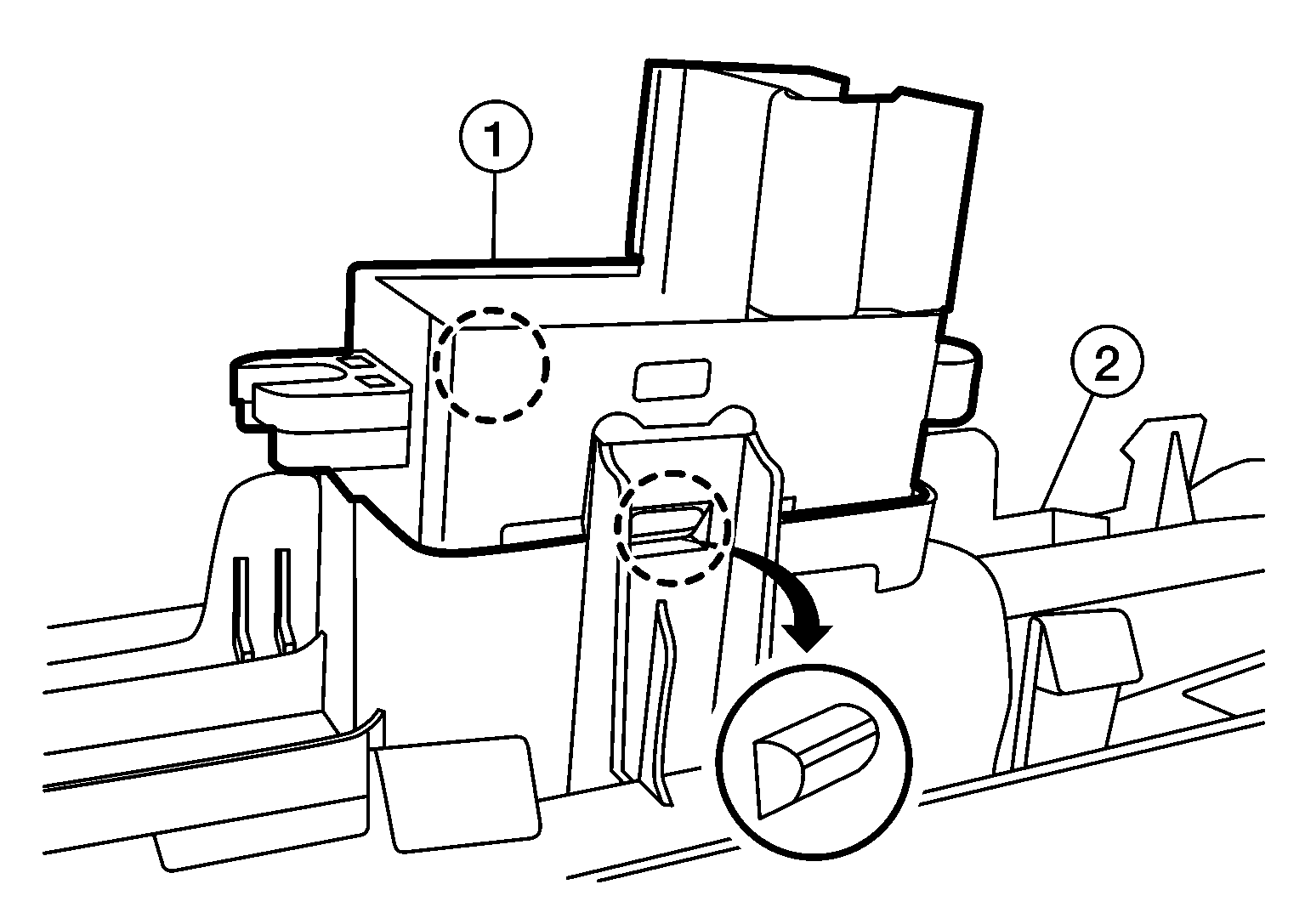

    Fig 2: Removing Rear Power Window Switch From Rear Power Window Switch Finisher Using Suitable Tool
    G09604545Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Do not bend back the pawls on the switch finisher too far or damage may occur.
