Exploded View With Torque Specifications

TYPE 1

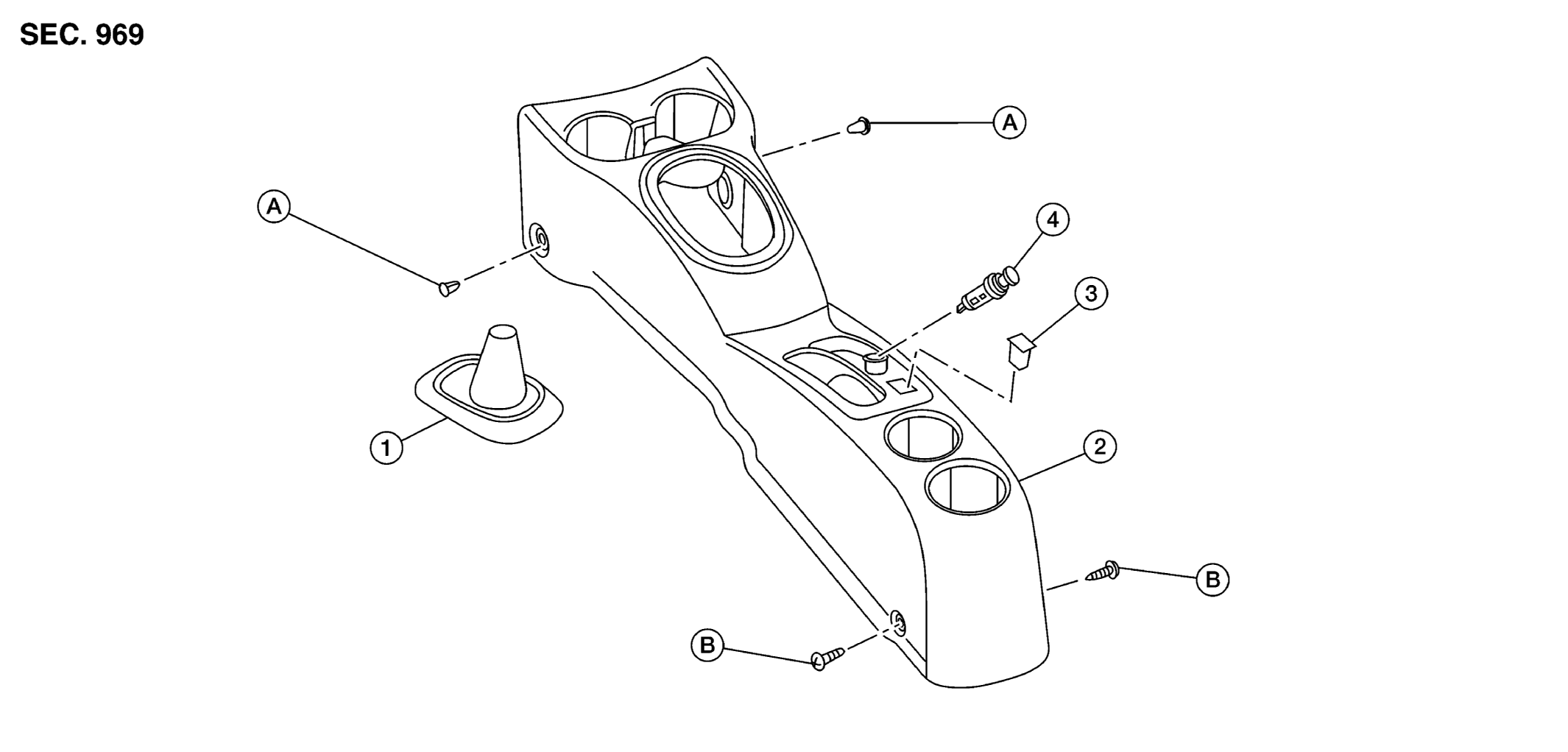

Fig 1: Exploded View Of Center Console Assembly (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift selector boot (5MT: RS5F91R)	2.	Center console assembly	3.	USB connector (if equipped)
4.	Power socket	A.	Clip	B.	Screw

TYPE 2

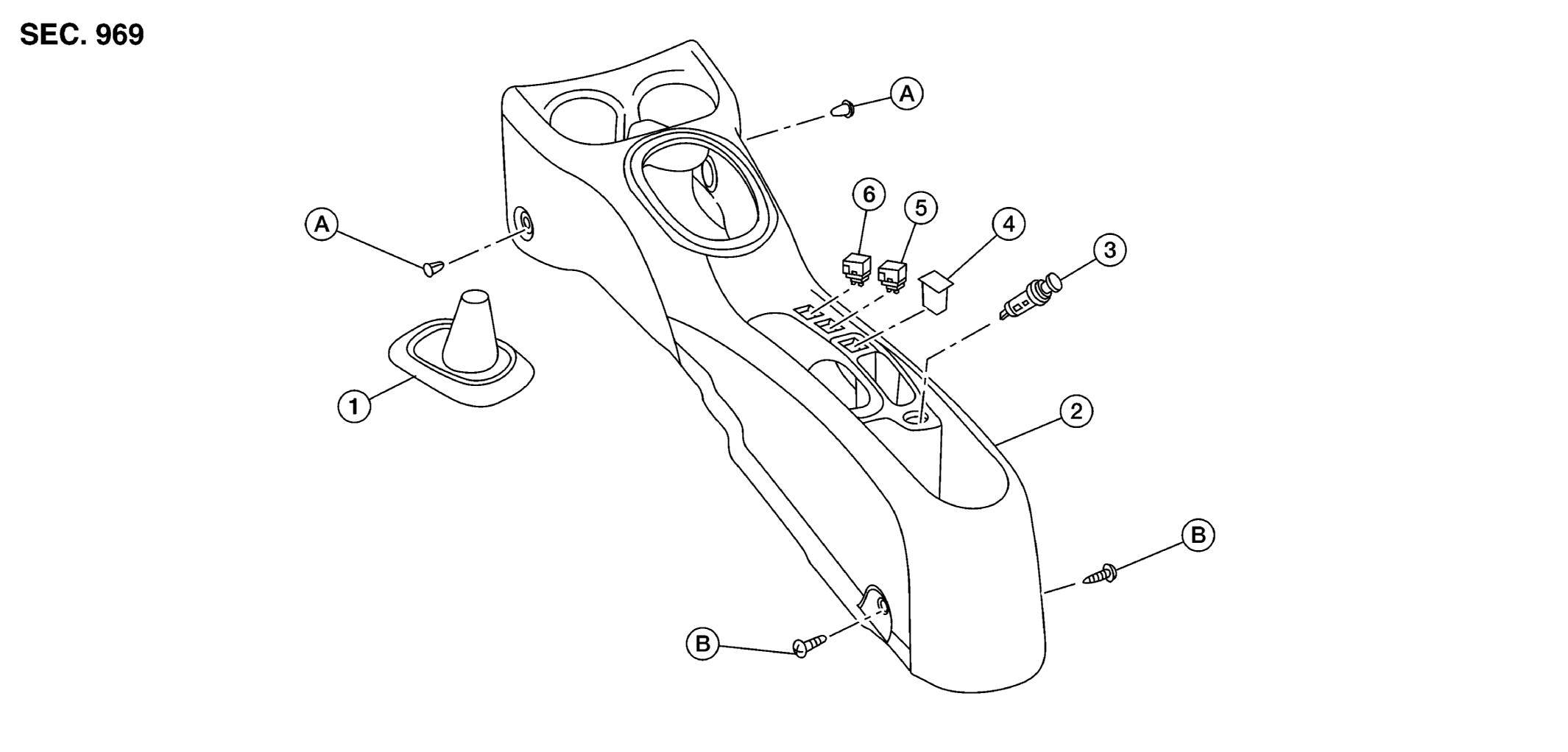

Fig 2: Exploded View Of Center Console Assembly (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift selector boot (5MT: RS5F91R)	2.	Center console assembly	3.	Power socket
4.	USB connector (if equipped)	5.	Heated seat switch (RH) (if equipped)	6.	Heated seat switch (LH) (if equipped)
A.	Clip	B.	Screw
