Exploded View With Torque Specifications

M/T model

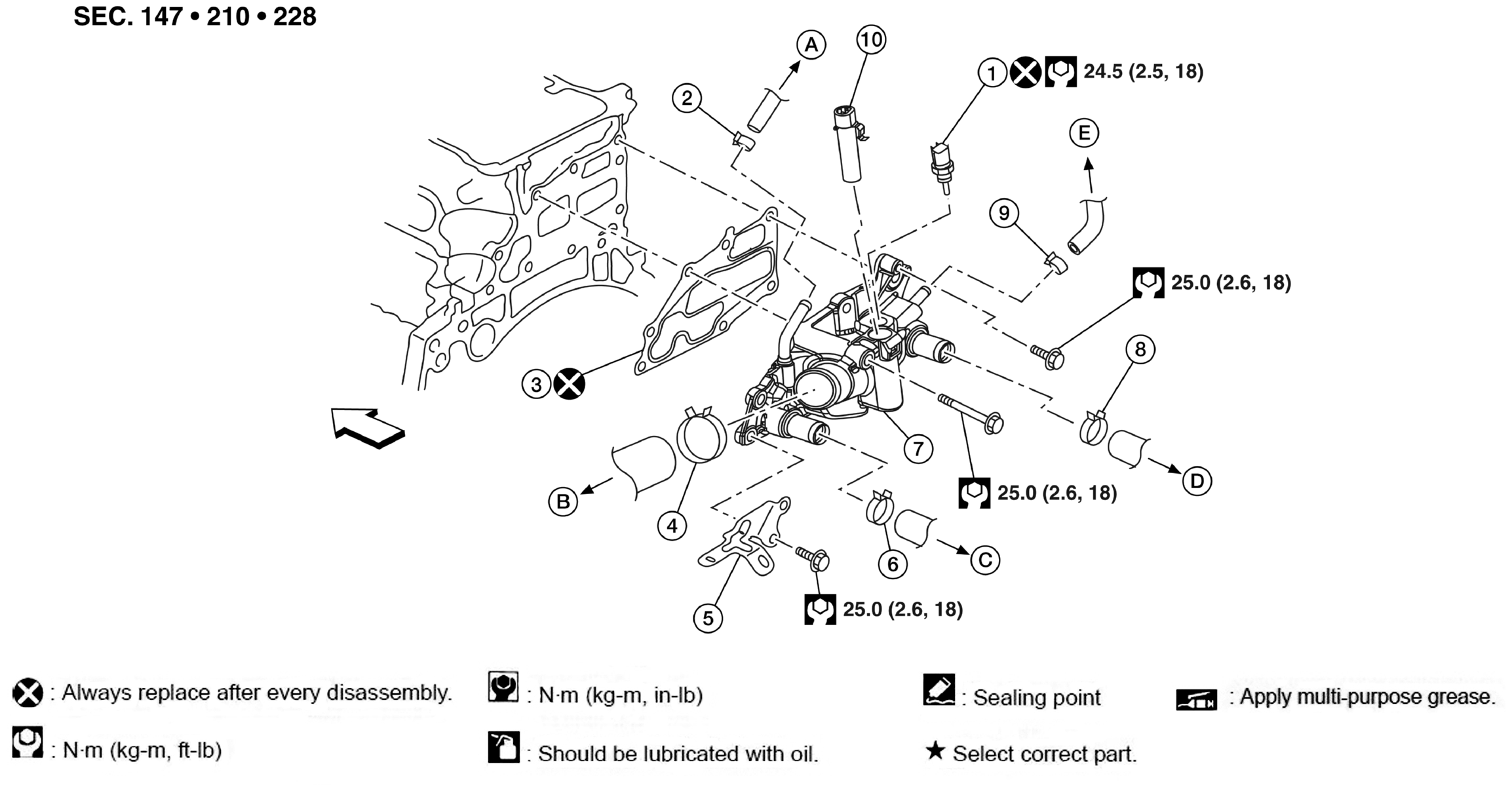

Fig 1: Exploded View Of Water Outlet With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine coolant temperature sensor	2.	Clamp	3.	Gasket
4.	Clamp	5.	Bracket	6.	Clamp
7.	Water outlet	8.	Clamp	9.	Clamp
10.	Cylinder block heater (Canada)	A.	From electric throttle control actuator	B.	To radiator
C.	From heater core	D.	To heater core	E.	To electric throttle control actuator
	Engine front

CVT model

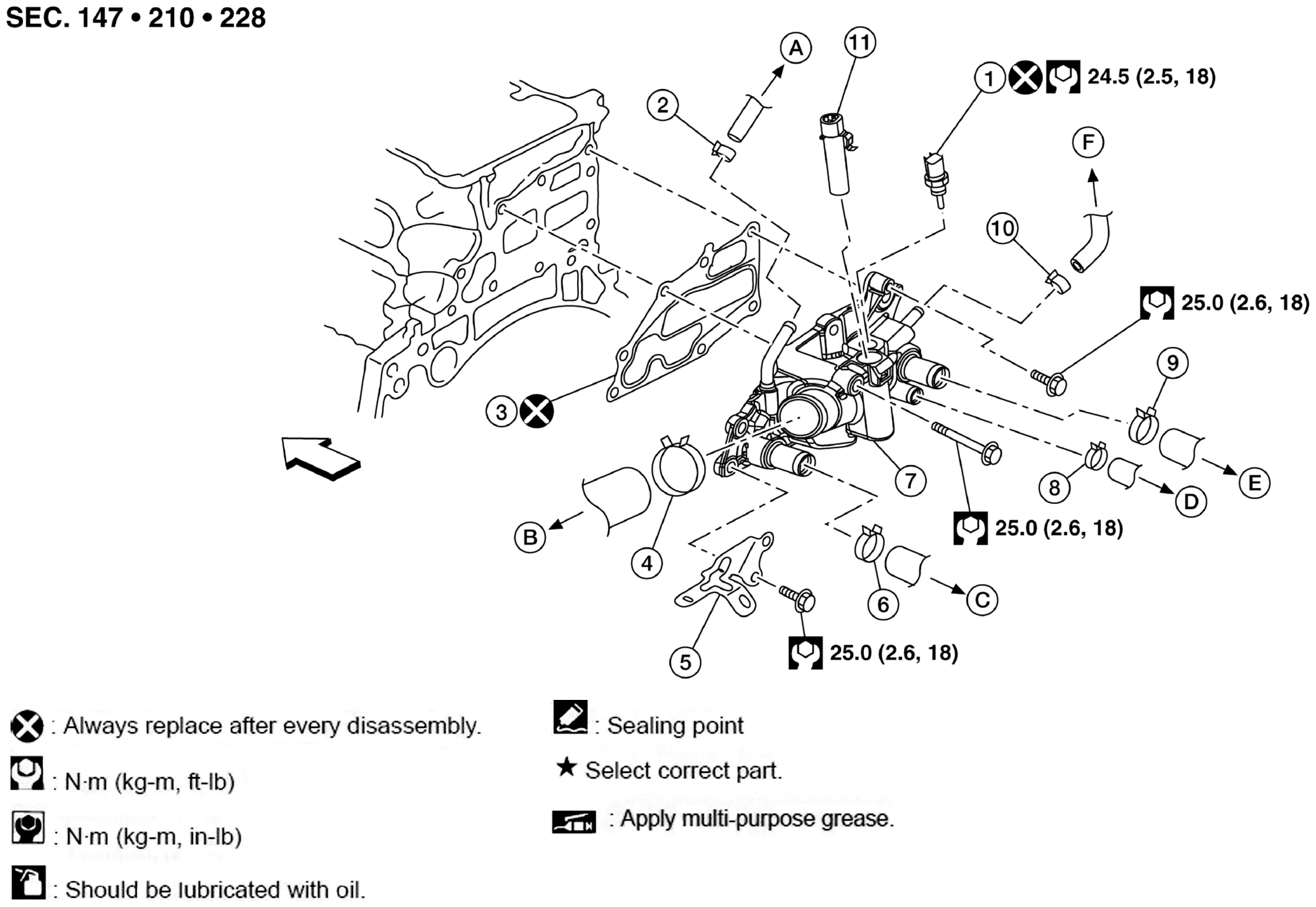

Fig 2: Exploded View Of Water Outlet With Torque Specification (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine coolant temperature sensor	2.	Clamp	3.	Gasket
4.	Clamp	5.	Bracket	6.	Clamp
7.	Water outlet	8.	Clamp	9.	Clamp
10.	Clamp	11.	Cylinder block heater (Canada)	A.	From electric throttle control actuator
B.	To radiator	C.	To heater core / CVT oil warmer	D.	To CVT oil warmer
E.	To heater core	F.	To electric throttle control actuator		Engine front
