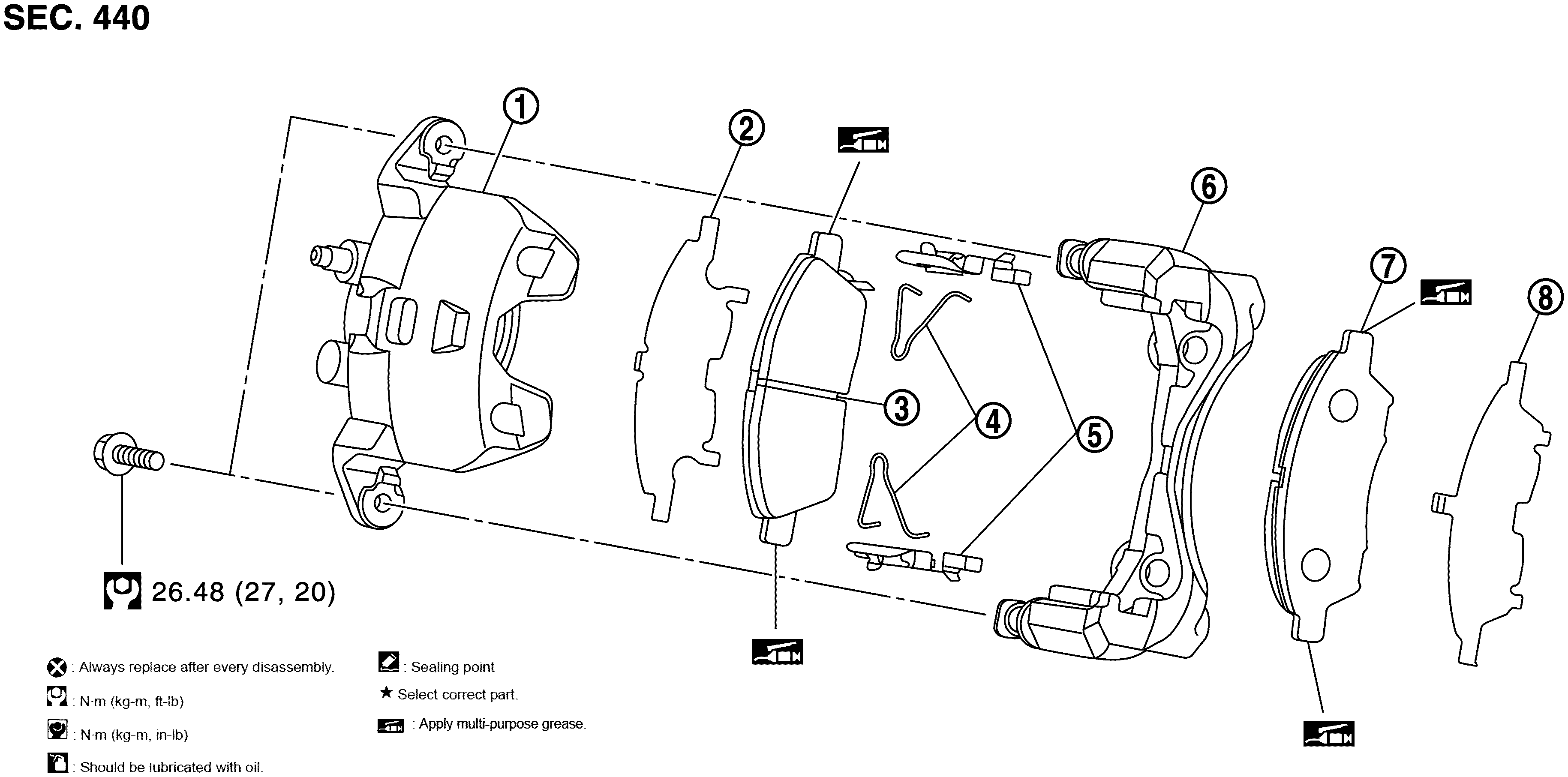

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Cylinder body |
2. |
Inner shim |
3. |
Inner pad (with pad wear sensor) |
| 4. |
Pad return spring |
5. |
Pad retainer |
6. |
Torque member |
| 7. |
Outer pad |
8. |
Outer shim |
|
|
: Apply MOLYKOTE®
7439 or equivalent. |
