Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

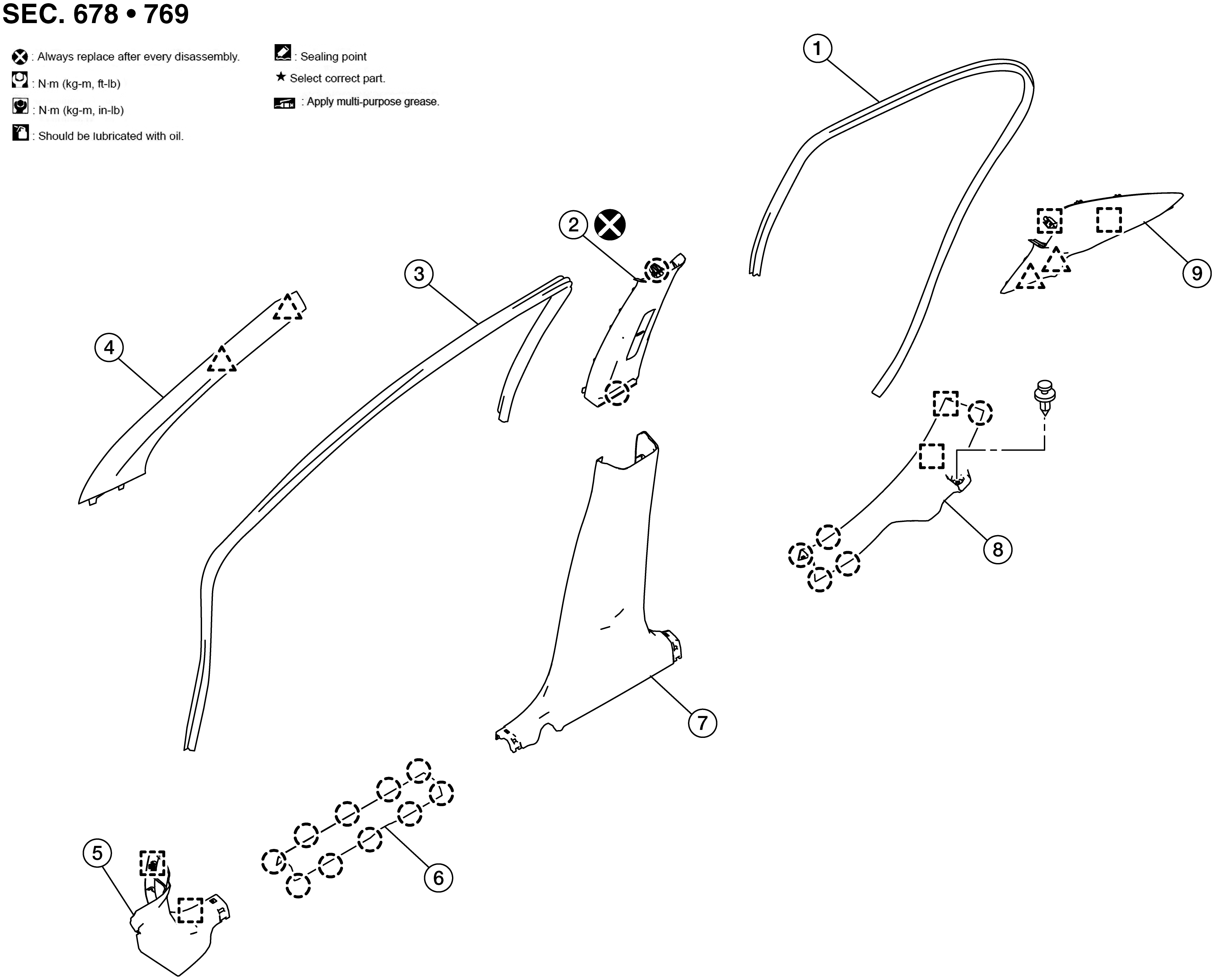

Fig 1: Exploded View Of Body Side Trim

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear body side welt	2.	Center pillar upper finisher	3.	Front body side welt
4.	Front pillar finisher	5.	Dash side finisher	6.	Front kicking plate
7.	Center pillar lower finisher	8.	Rear kicking plate	9.	Rear pillar finisher
	Clip		Pawl		Metal clip
