Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

M/T models

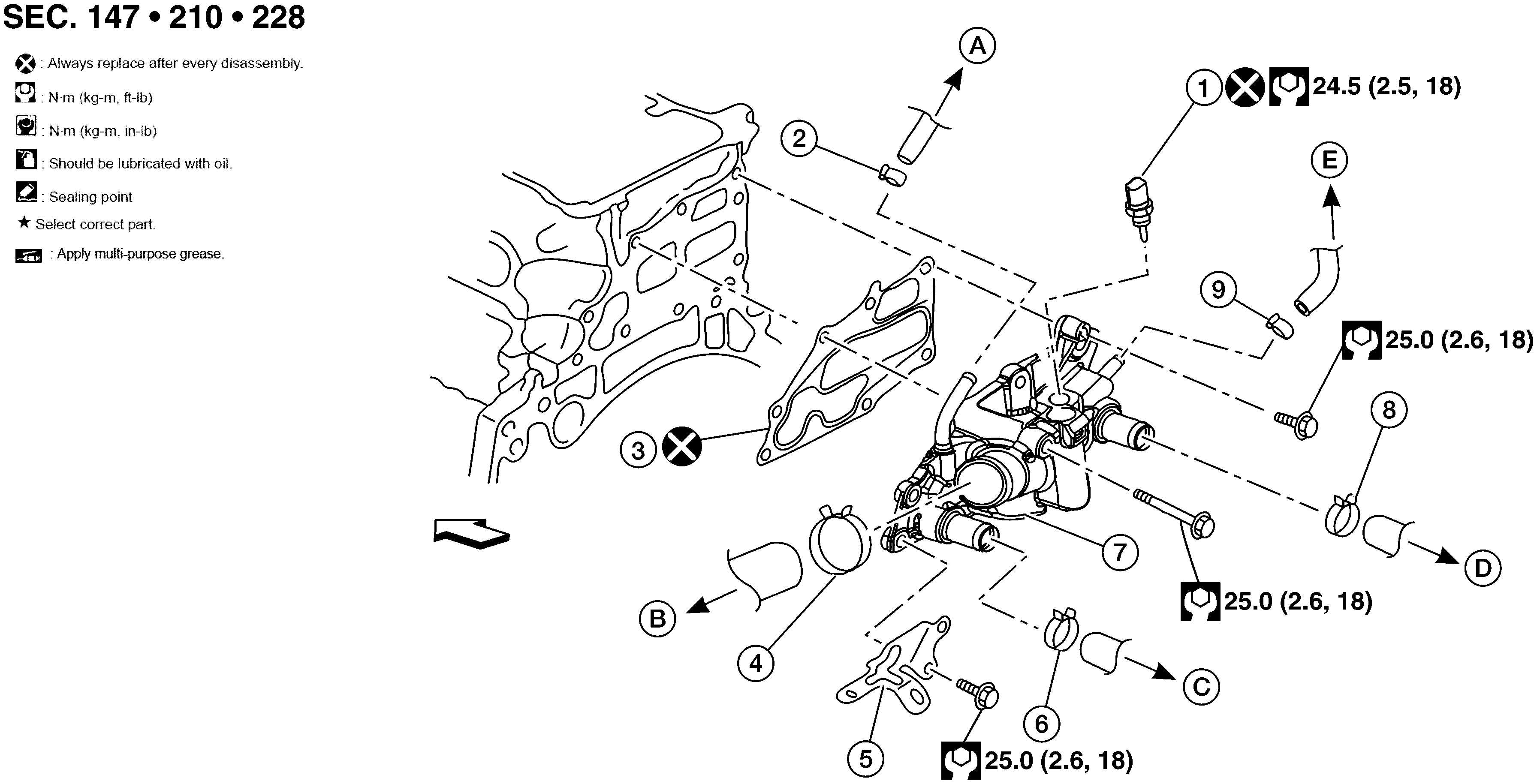

Fig 1: Exploded View Of Water Outlet With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine coolant temperature sensor	2.	Clamp	3.	Gasket
4.	Clamp	5.	Bracket	6.	Clamp
7.	Water outlet	8.	Clamp	9.	Clamp
A.	From electric throttle control actuator	B.	To radiator	C.	From heater core
D.	To heater core	E.	To electric throttle control actuator		Engine front

CVT and A/T models

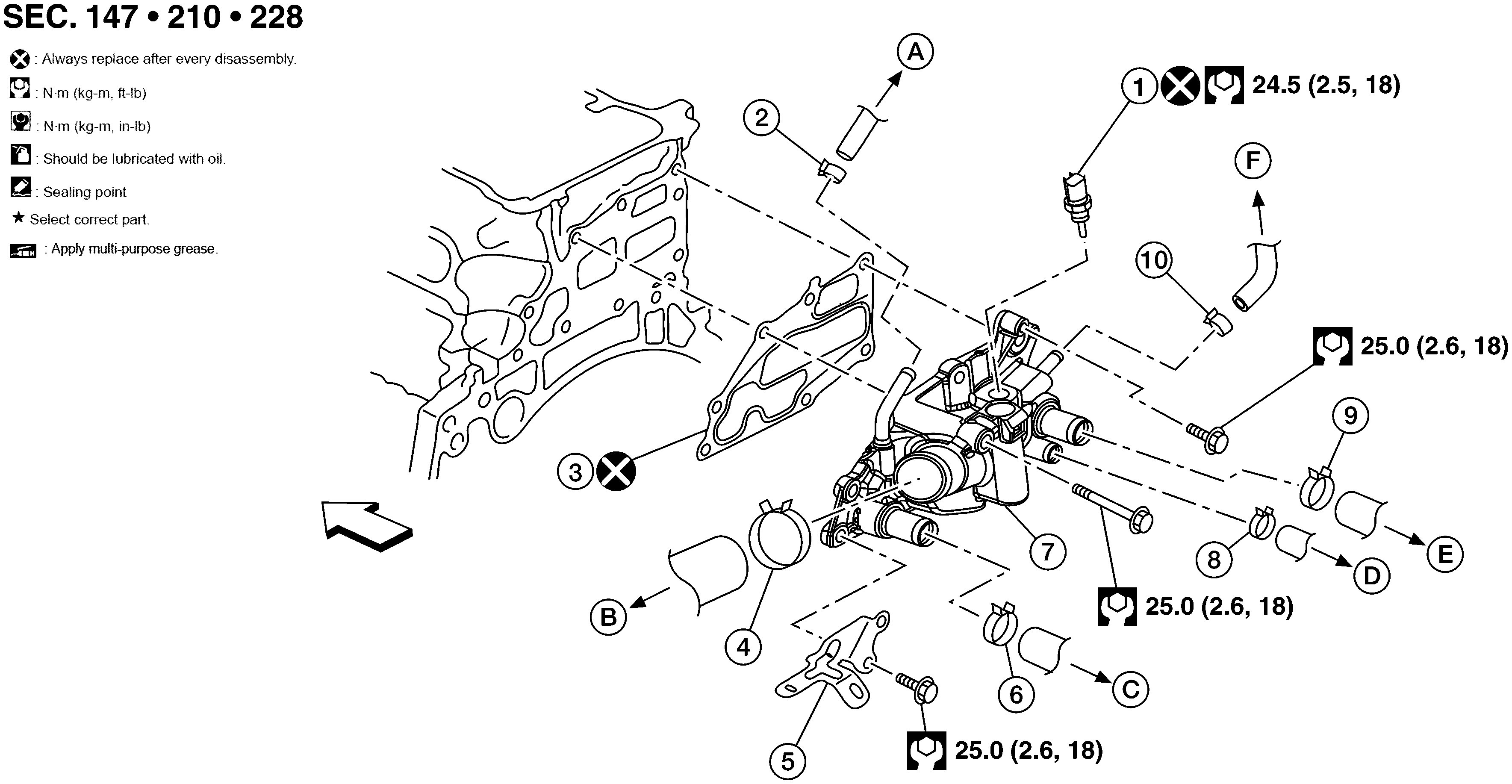

Fig 2: CVT and A/T Models With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine coolant temperature sensor	2.	Clamp	3.	Gasket
4.	Clamp	5.	Bracket	6.	Clamp
7.	Water outlet	8.	Clamp	9.	Clamp
10.	Clamp	A.	From electric throttle control actuator	B.	To radiator
C.	To heater core / CVT oil warmer	D.	To CVT oil warmer	E.	To heater core
F.	To electric throttle control actuator		Engine front
