Section 64 (Interior Lighting System)
›
Removal And Installation
›
Map Lamp
›
Exploded View With Torque Specifications
Exploded View With Torque Specifications
WARNING:
This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

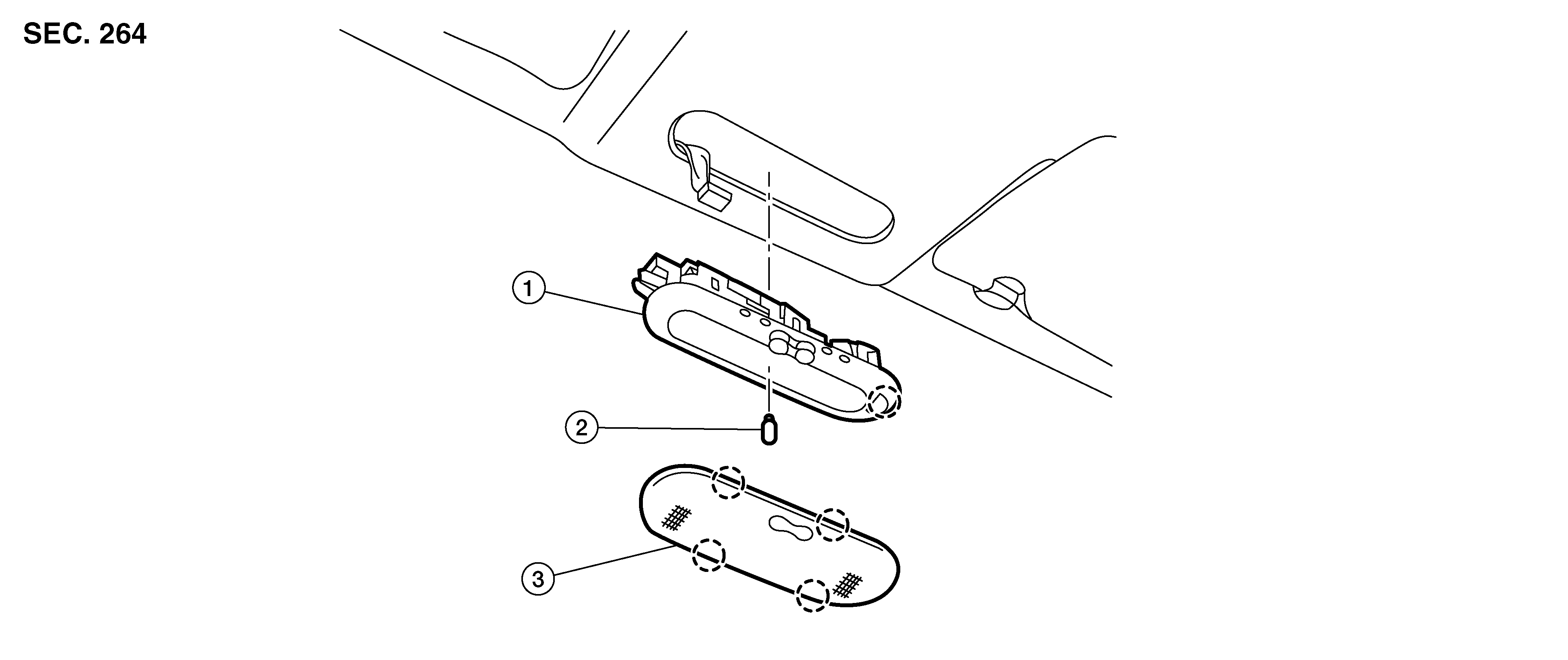

Fig 1: Exploded View Of Map Lamp
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Map lamp bulb housing
2.
Bulb
3.
Lens
Pawl
