Exploded View With Torque Specifications

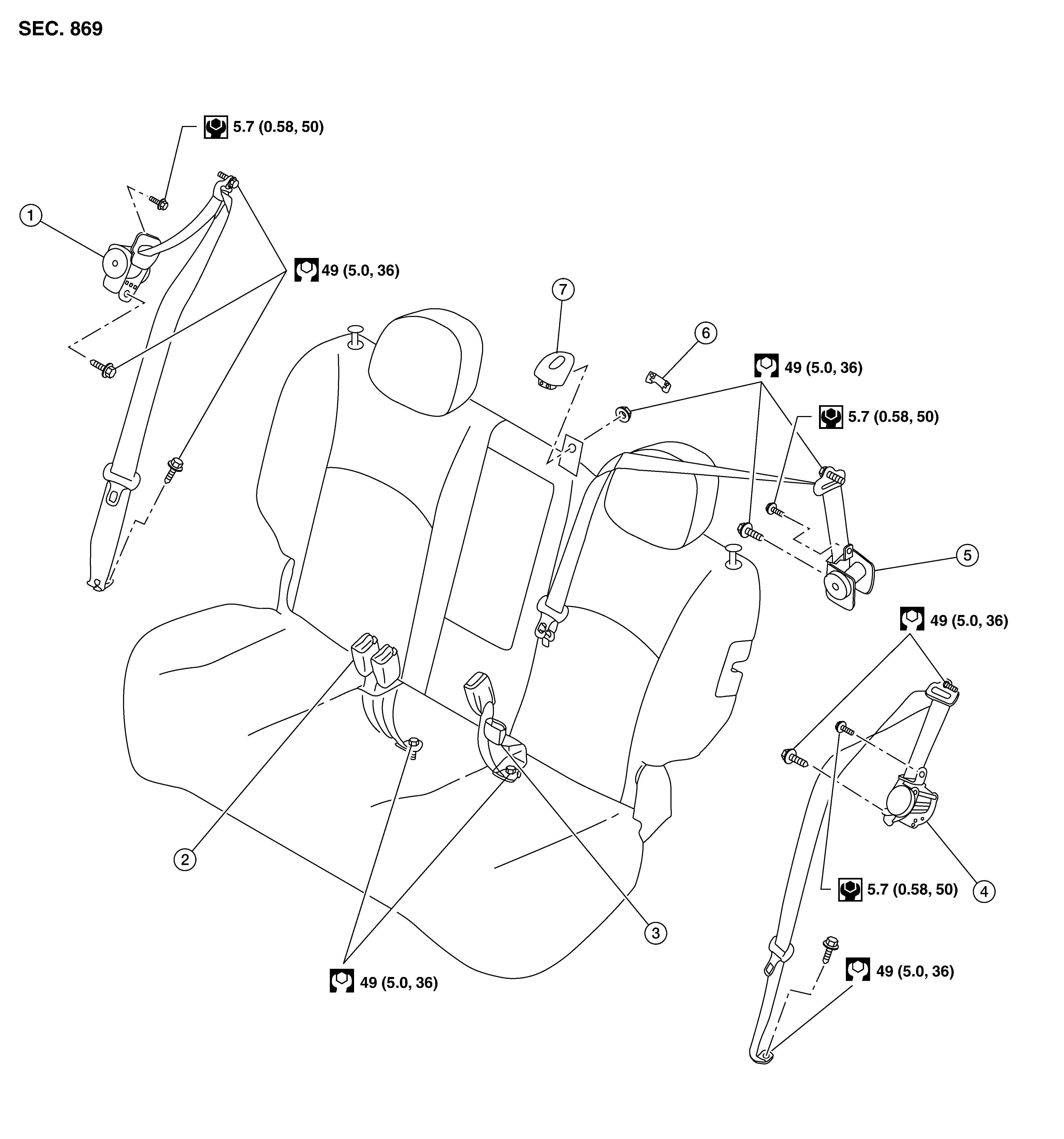

Fig 1: Exploded View Of Rear Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt retractor (RH)	2.	Seat belt buckle (RH/center)	3.	Seat belt buckle (LH)
4.	Seat belt retractor (LH)	5.	Seat belt retractor (center)	6.	Seat belt guide finisher
7.	Seat belt guide
