Exploded View With Torque Specifications

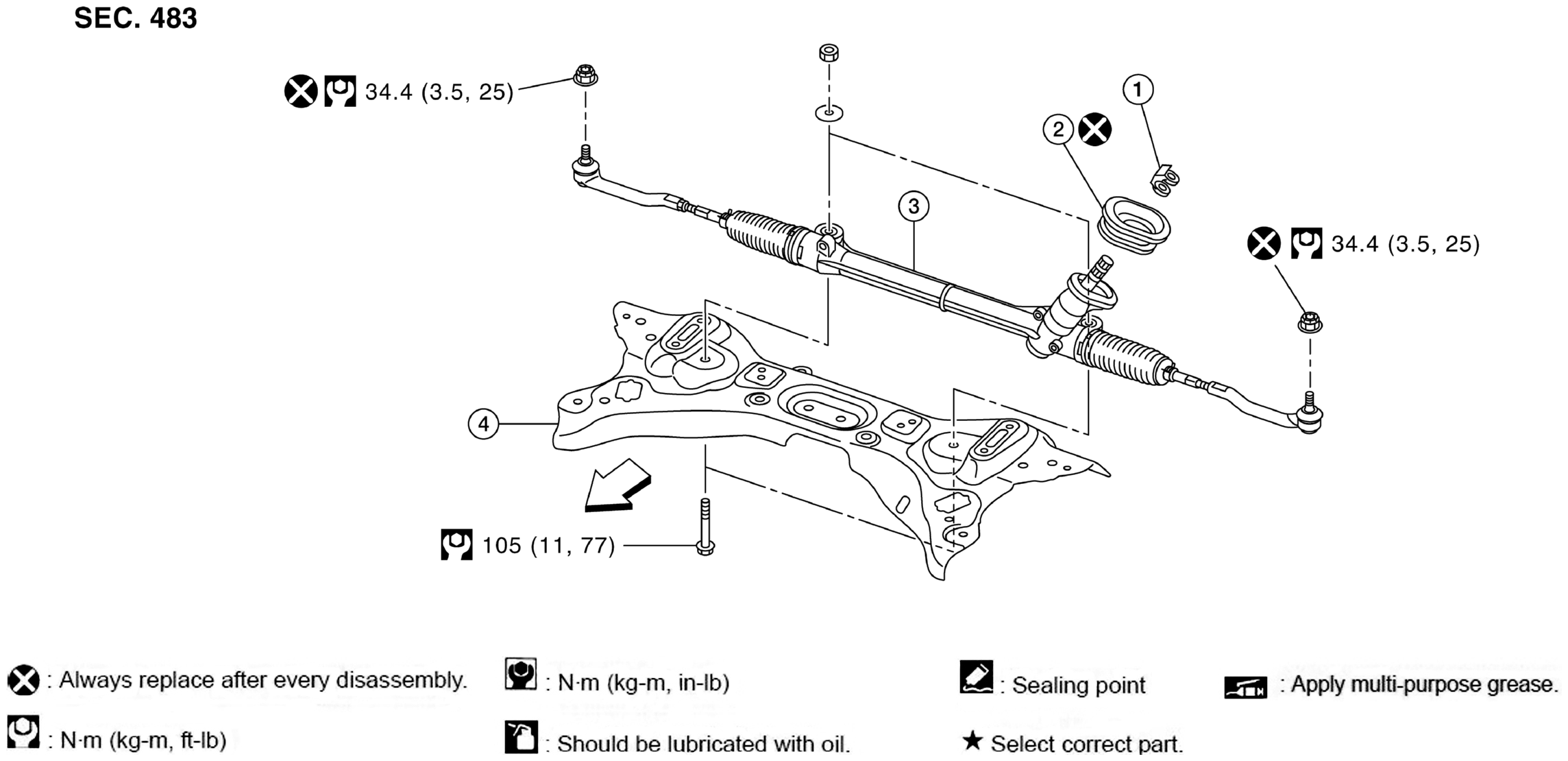

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Guide	2.	Cowl seal	3.	Steering gear
4.	Front suspension member		Front
