Exploded View With Torque Specifications

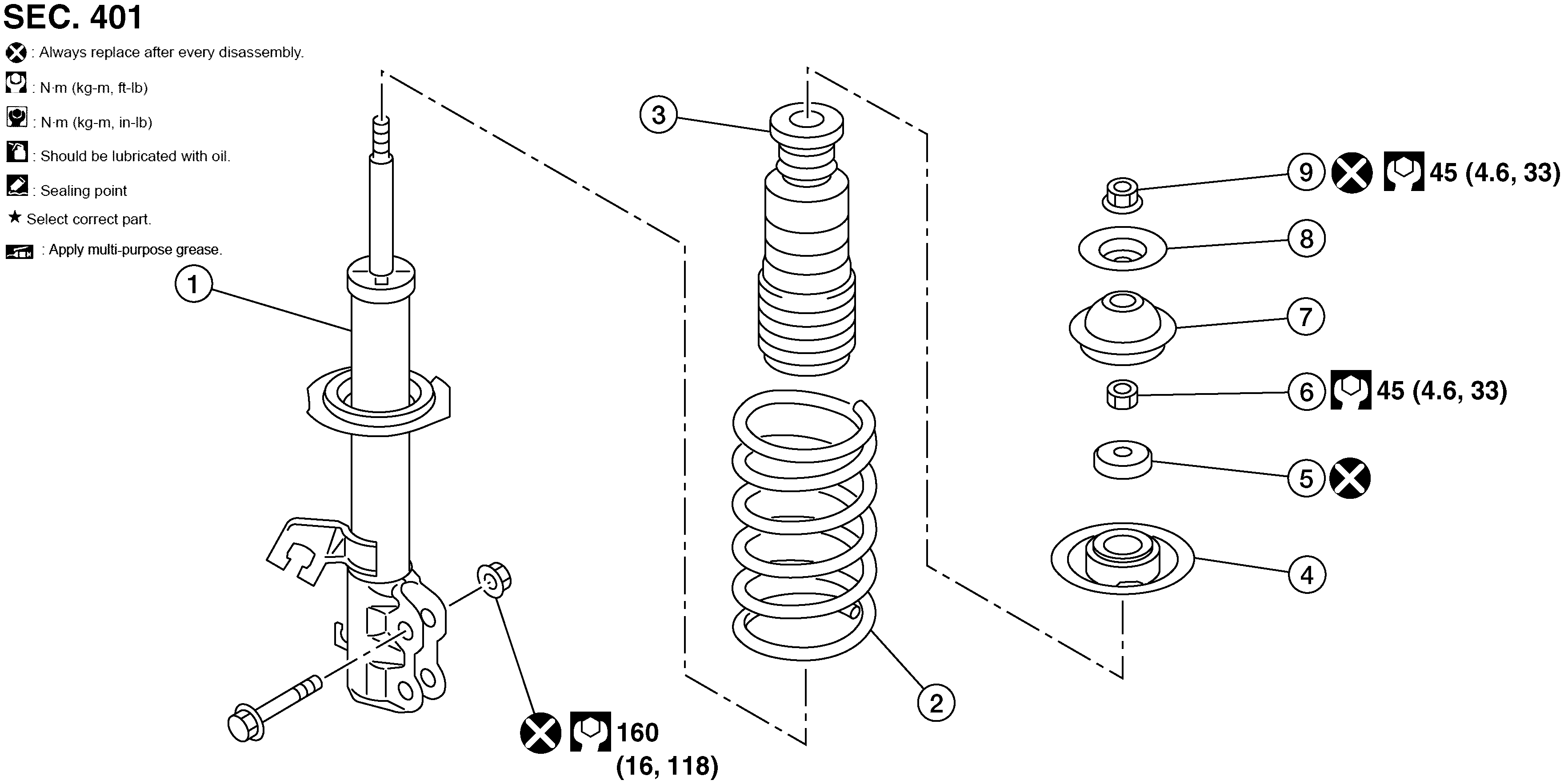

Fig 1: Exploded View Of Front Coil Spring And Strut With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Strut	2.	Coil spring	3.	Bound bumper
4.	Spring upper seat	5.	Strut mount bearing	6.	Piston rod lock nut
7.	Strut mount insulator	8.	Stopper insulator	9.	Stopper insulator lock nut
