Exploded View With Torque Specifications

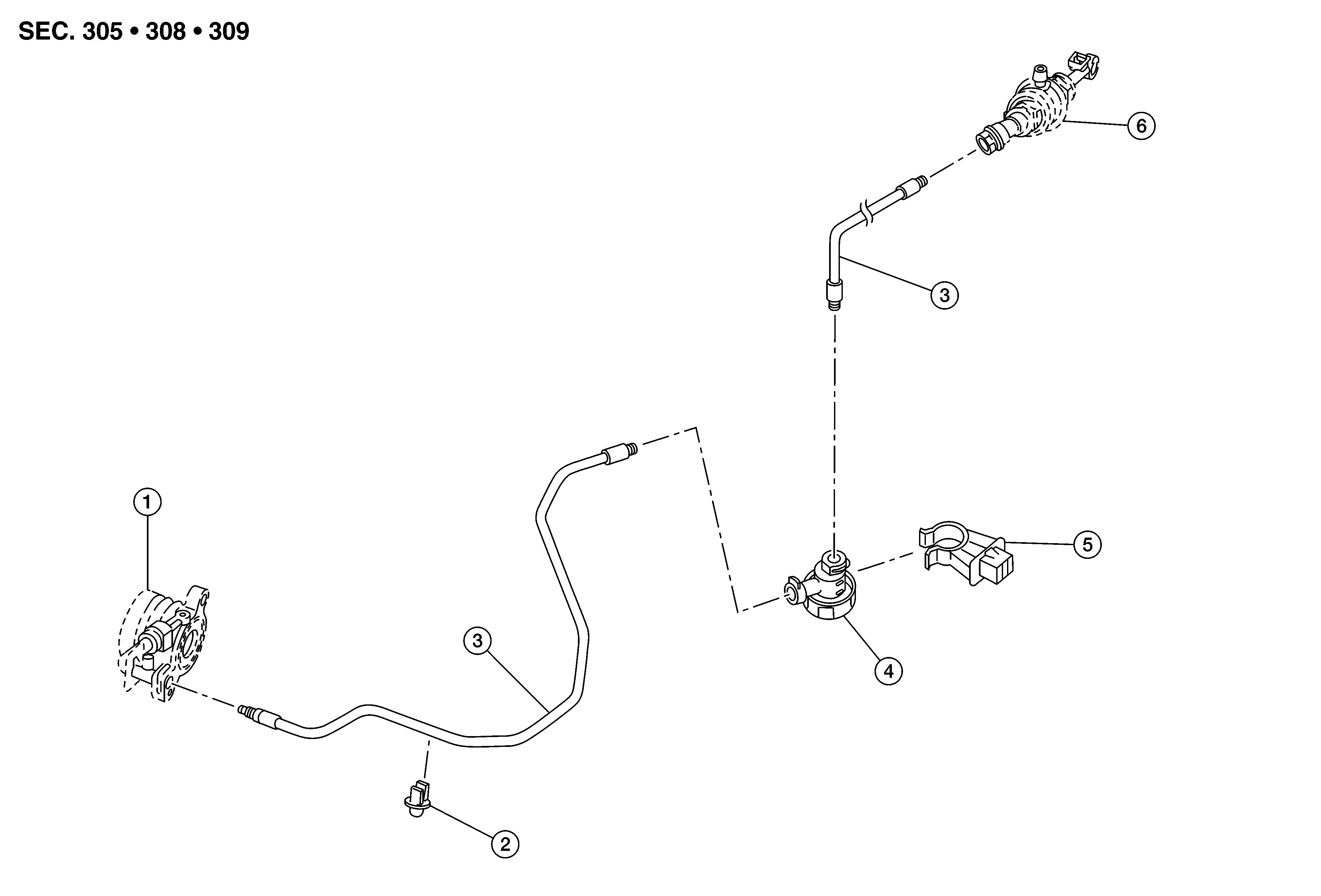

Fig 1: Exploded View Of Clutch Piping

Courtesy of NISSAN NORTH AMERICA, INC.

1.	CSC (Concentric Slave Cylinder)	2.	Clip	3.	Clutch tube
4.	Clutch damper	5.	Bracket	6.	Master cylinder
