Engine Lubrication System Schematic

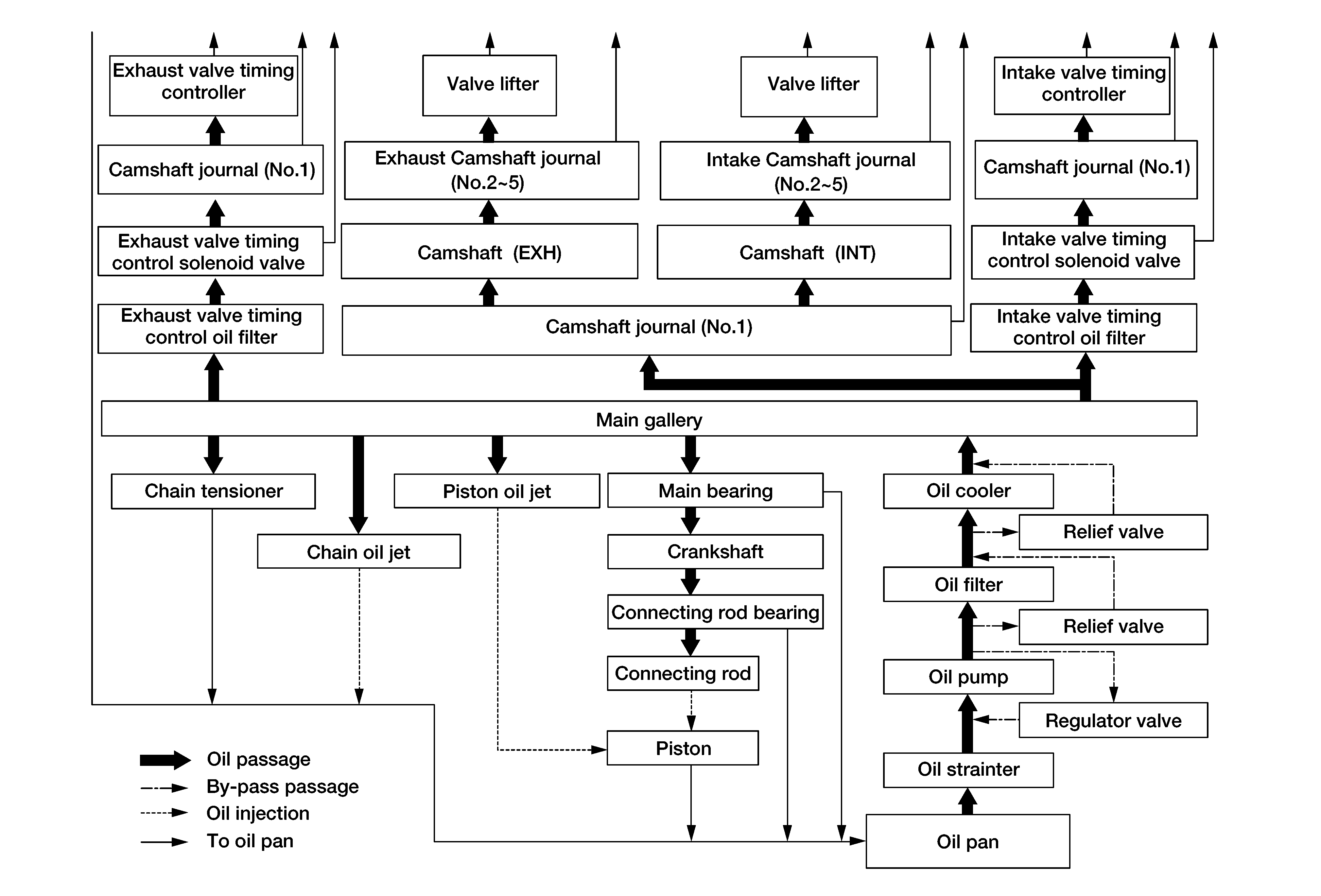

Fig 1: Engine Lubrication System Schematic
G09617488Courtesy of NISSAN NORTH AMERICA, INC.
