Net Seat
CAUTION:

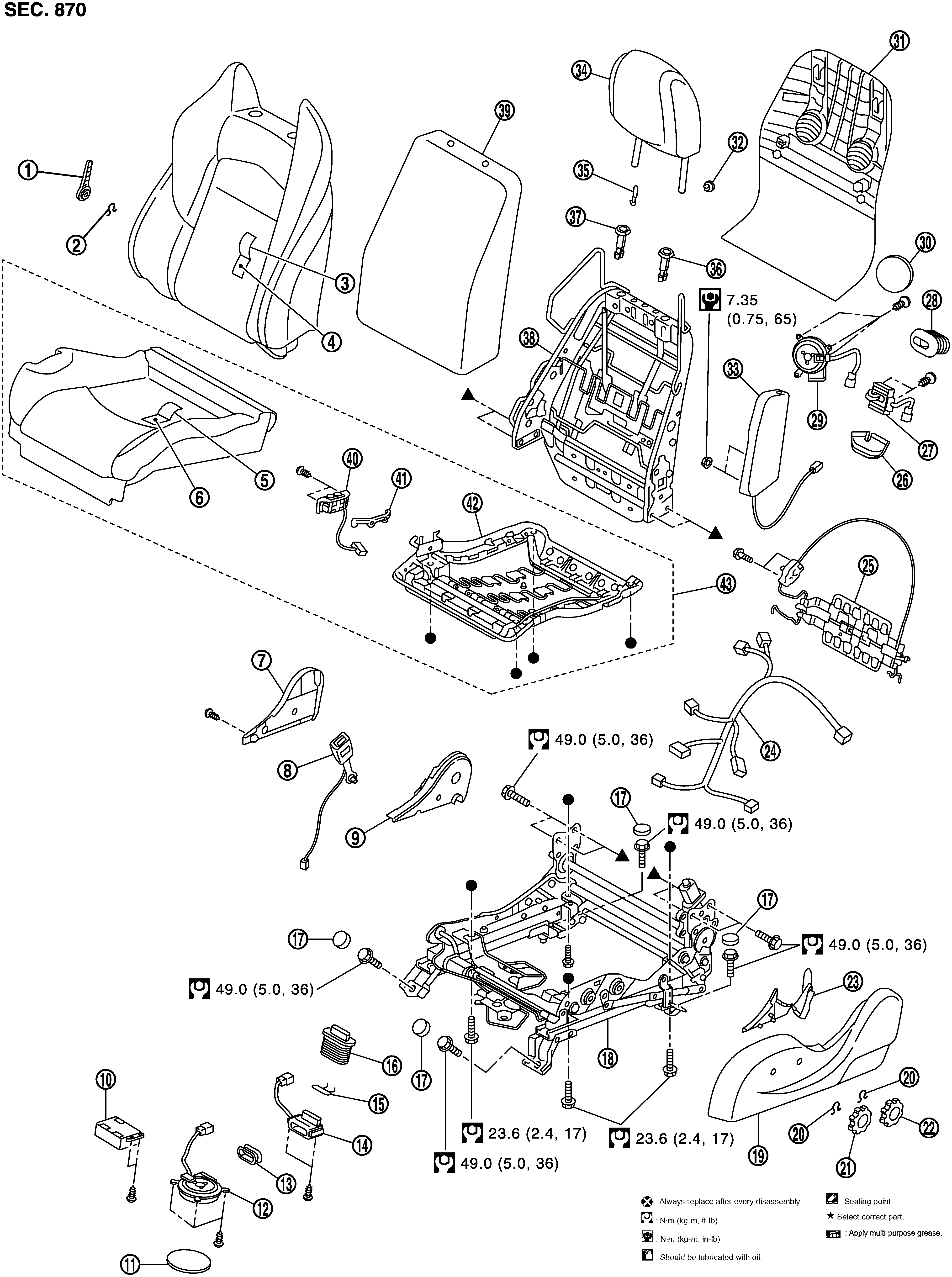

Never disassembly the COMPONENT only from passenger seat in the dotted lines shown in the illustration below. (USA/Canada model only)
| 1. | Lumbar support lever knob (Driver seat only) | 2. | Snap ring (Driver seat only) | 3. | Seatback trim |
| 4. | Seatback pad | 5. | Seat cushion trim | 6. | Seat cushion pad |
| 7. | Seat cushion inner finisher | 8. | Seat belt buckle | 9. | Reclining device inner cover |
| 10. | Climate controlled seat control unit | 11. | Blower filter | 12. | Seat cushion blower motor |
| 13. | Seat cushion duct A | 14. | Seat cushion thermal electric device (TED) | 15. | Clamp wire |
| 16. | Seat cushion duct B | 17. | Bolt cap | 18. | Seat adjuster assembly |
| 19. | Seat cushion outer finisher | 20. | Snap ring (Driver seat only) | 21. | Thigh support dial (Driver seat only) |
| 22. | Lifter dial (Driver seat only) | 23. | Reclining device outer cover | 24. | Seat harness |
| 25. | Lumbar support unit (Driver seat only) | 26. | Seatback duct A | 27. | Seatback thermal electric device (TED) |
| 28. | Seatback duct B | 29. | Seatback blower motor | 30. | Blower filter |
| 31. | Seatback board | 32. | Clip | 33. | Side air bag module |
| 34. | Headrest | 35. | Headrest stopper | 36. | Headrest holder (locked) |
| 37. | Headrest holder (free) | 38. | Seatback frame | 39. | Seatback silencer |
| 40. | Power seat switch | 41. | Switch bracket cover | 42. | Seat cushion frame |
| 43. | Seat cushion assembly (USA/Canada model passenger only) | ||||
| : N•m (kg - m, ft - lb) | |||||
| : N•m (kg - m, in - lb) | |||||
