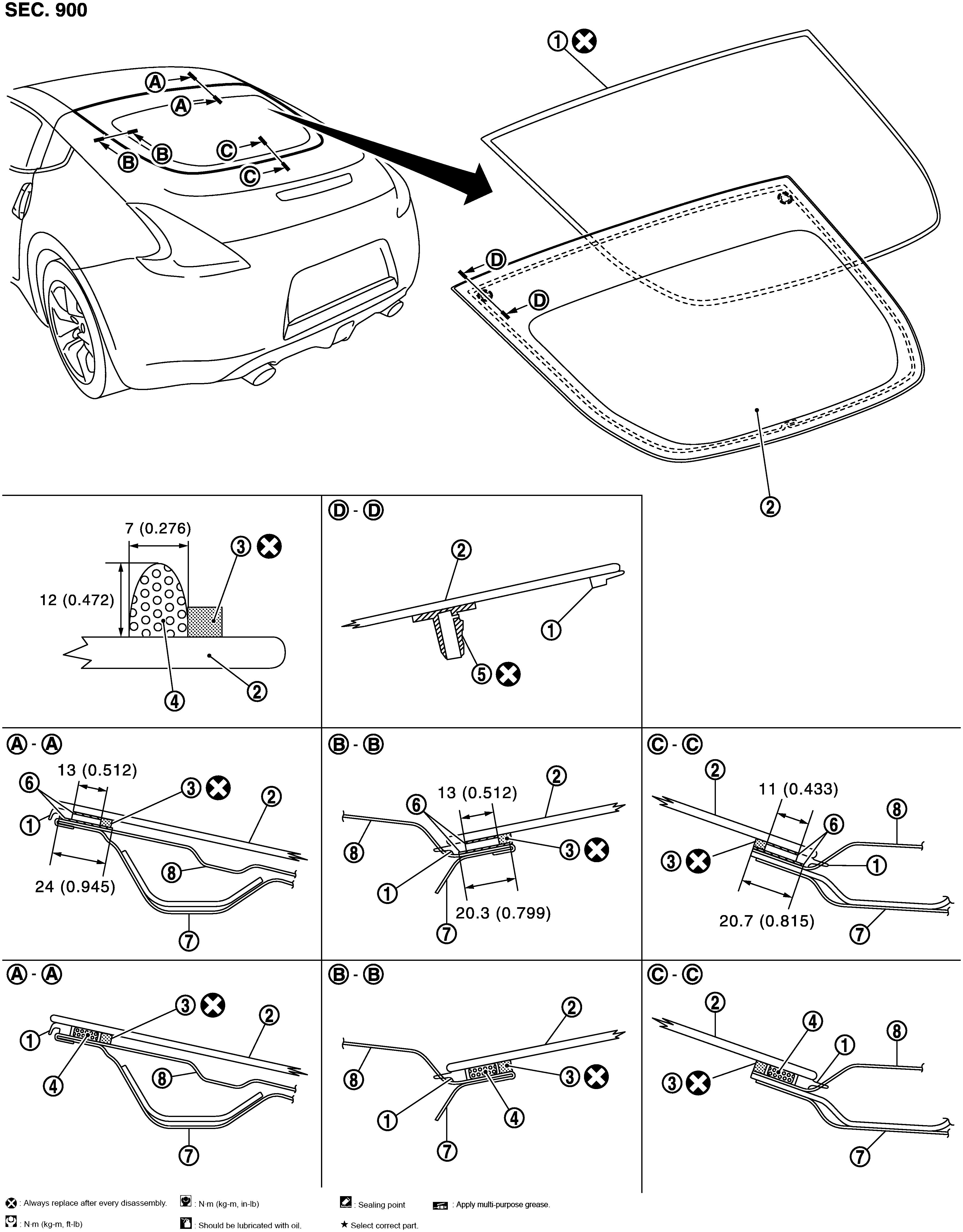

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back door glass molding	2.	Back door window glass assembly	3.	Dam sealant rubber
4.	Adhesive	5.	Back door glass holder	6.	Primer
7.	Back door inner	8.	Back door outer
Unit	: mm (in)
	: Always replace after every disassembly.
