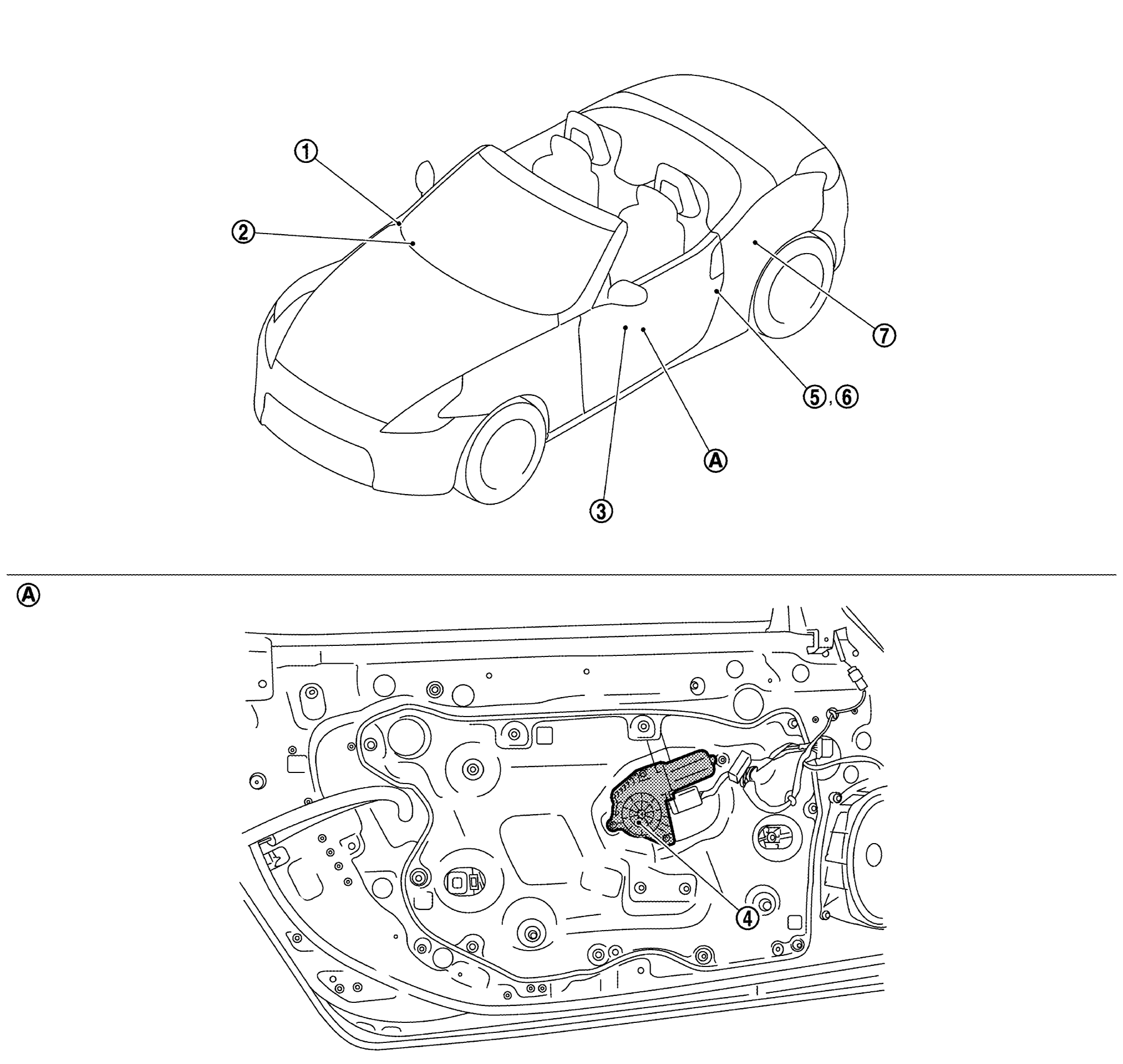

Component Location
| 1. | BCM COMPONENT LOCATION |
2. | Remote keyless entry receiver COMPONENT LOCATION |
3. | Power window main switch |
| 4. | Driver side power window motor | 5. | Driver side door lock assembly (door key cylinder switch) |
6. | Driver side door switch |
| 7. | Soft top control unit COMPONENT LOCATION |
||||
| A. | View with door finisher removed |
