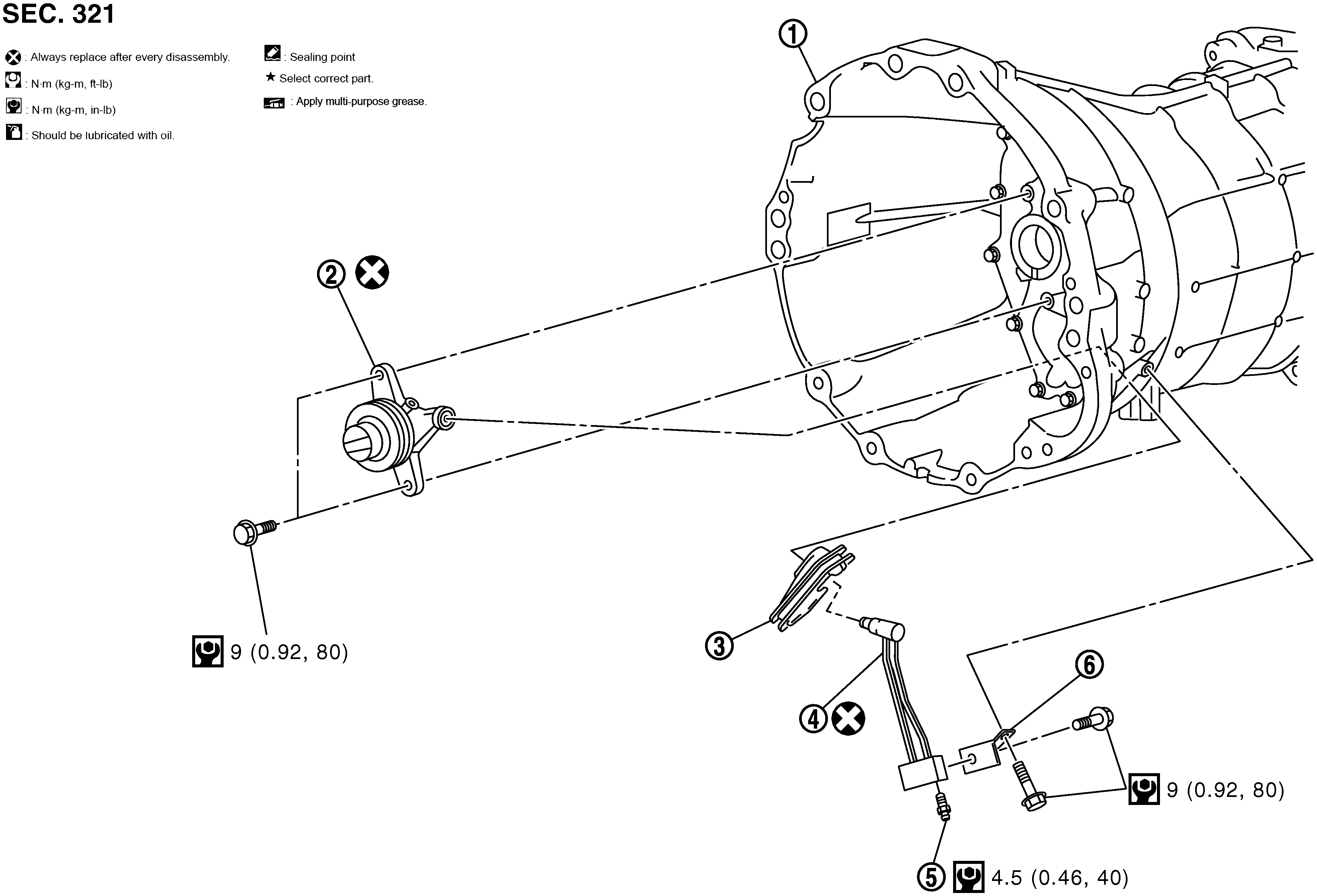

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transmission assembly	2.	CSC (Concentric Slave Cylinder) body	3.	Dust cover
4.	CSC (Concentric Slave Cylinder) tube	5.	Air bleeder valve	6.	Bracket
Refer to COMPONENTS for the symbols in the illustration.
