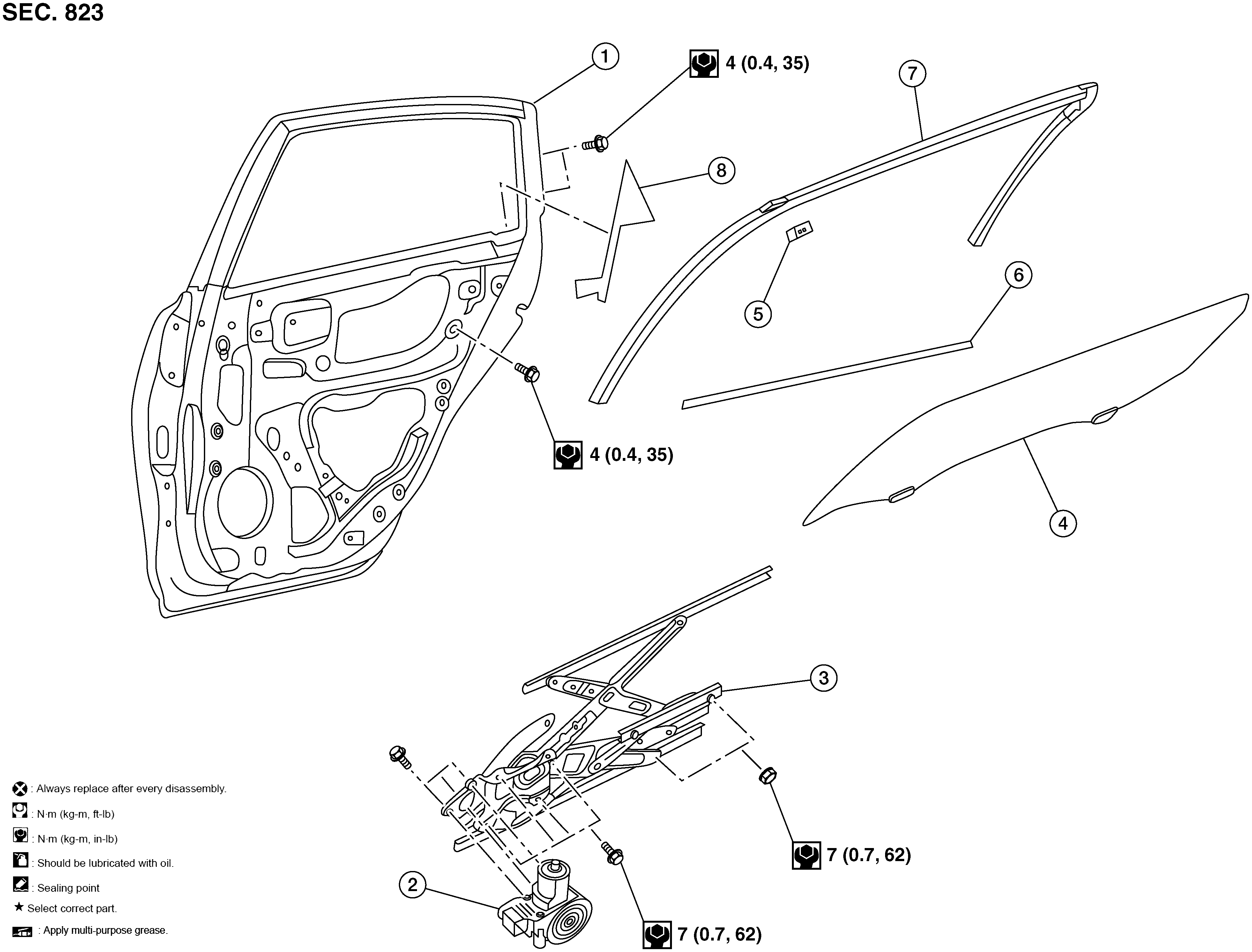

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Rear door glass regulator motor	3.	Rear door glass regulator
4.	Rear door glass	5.	Rear door sash clip	6.	Rear door inside window seal
7.	Rear door glass rubber run	8.	Rear door glass rear run channel
