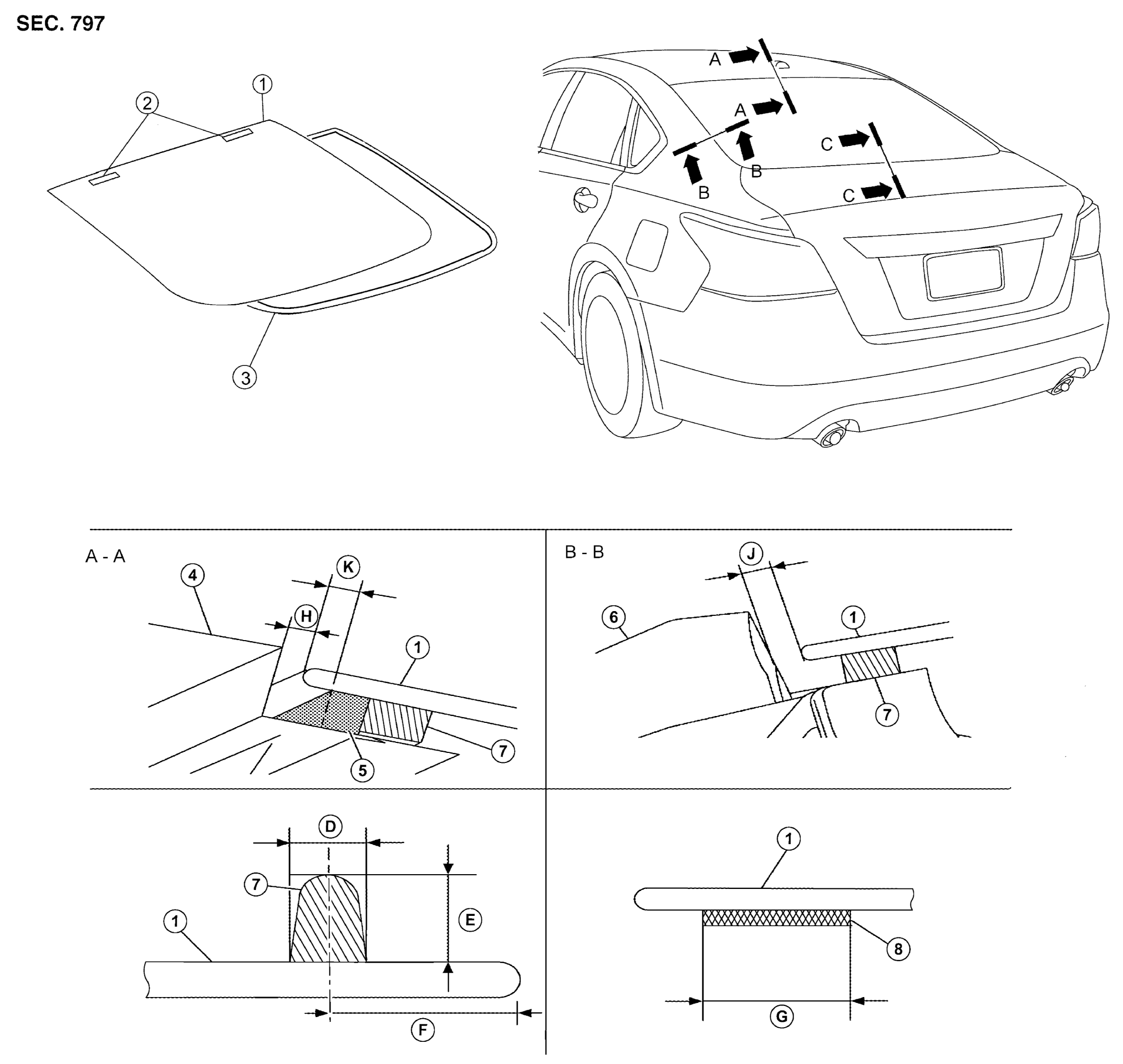

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear window glass	2.	Spacer	3.	Seal
4.	Roof panel	5.	Rubber dam	6.	Body side outer
7.	Adhesive	8.	Primer	D.	7.0 +2 mm (0.3 +0.1 in)
E.	12.0 +2 mm (0.5+ 0.1 in)	F.	8.5 mm (0.33 in)	G.	8.0 mm (0.3 in)
H.	3.0 +-1.5 mm (0.1 +-0.06 in)	J.	3.0 +-2.1 mm (0.1 +-0.08 in)	K.	5.0 mm (0.2 in)
