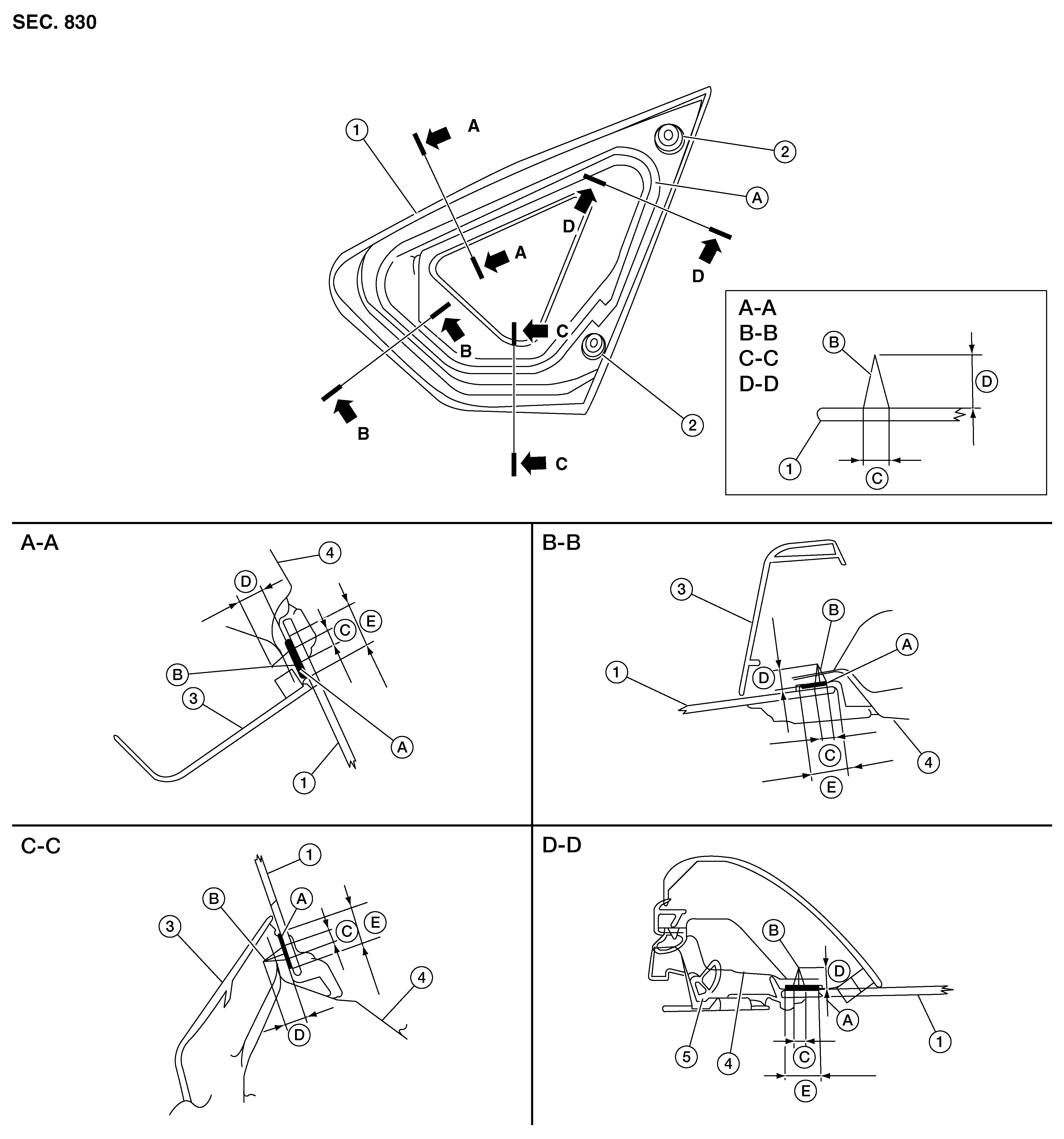

Side Window Glass: Components

GNSAWKIA3778ZZ-778

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side window glass	2.	Spacer	3.	Rear pillar finisher
4.	Rear body pillar	5.	Seal	A.	Primer
B.	Adhesive	C.	7 mm (0.3 in)	D.	12 mm (0.5 in)
E.	20 mm (0.8 in)
