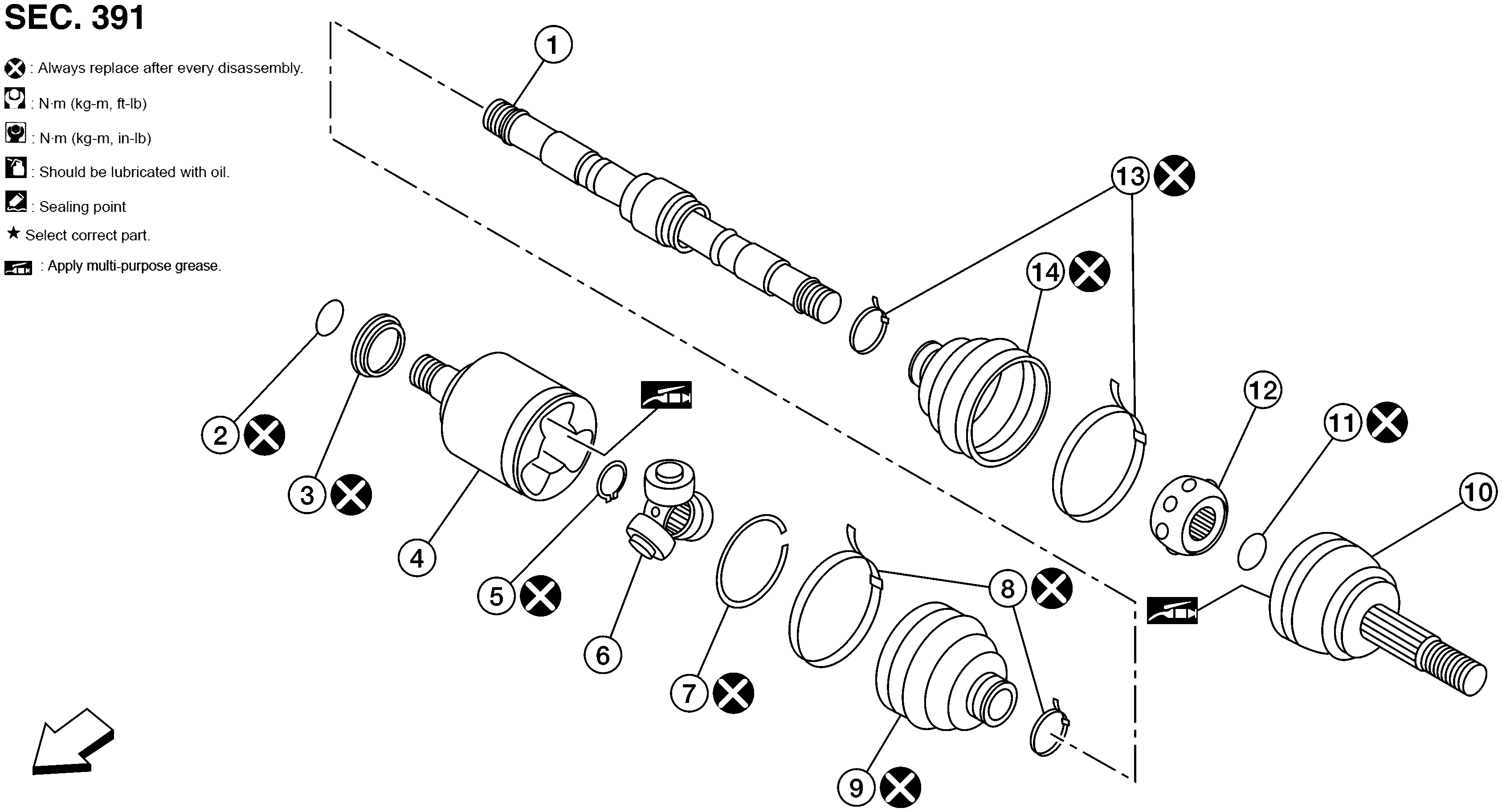

Exploded View (LH)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shaft	2.	Circlip	3.	Dust shield
4.	Slide joint housing	5.	Snap ring	6.	Spider assembly
7.	Stopper ring	8.	Boot band	9.	Boot
10.	Joint sub-assembly	11.	Circlip	12.	Ball cage / Steel ball / Inner race assembly
13.	Boot band	14.	Boot		Front
