Exploded View (RH)

QR25DE

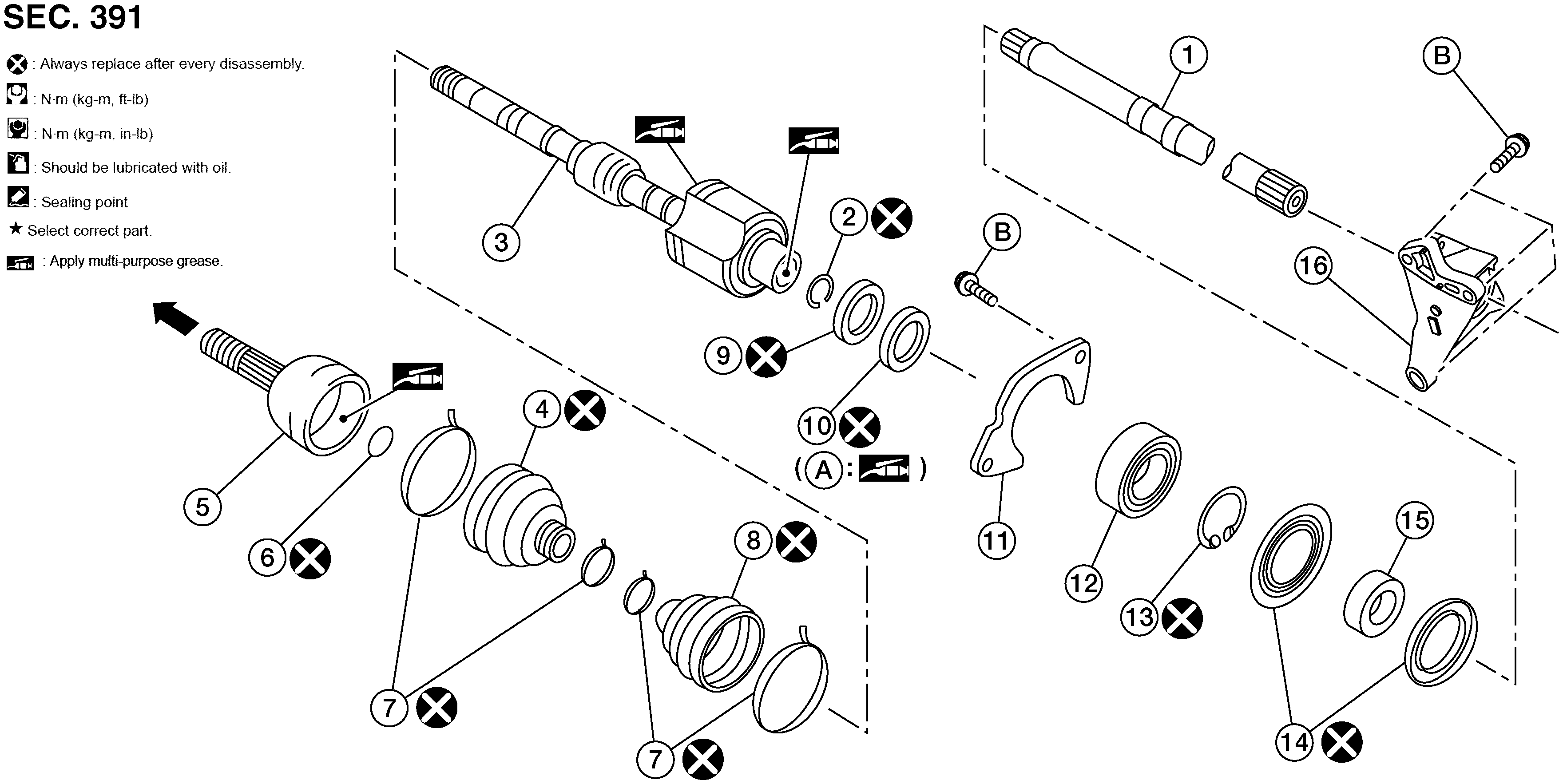

GNSAWDIA1181ZZ-181Courtesy of NISSAN NORTH AMERICA, INC.
1. Link shaft 2. Circular clip 3. Housing assembly
4. Boot 5. Joint sub-assembly 6. Circular clip
7. Boot band 8. Boot 9. Dust shield
10. Oil seal 11. Bearing retainer 12. Bearing
13. Snap ring 14. Dust shield 15. Collar
16. Support bearing bracket A. Oil seal lip B: Refer to FRONT DRIVE SHAFT INSTALLATION
ARROWF Wheel side GREASE Fill NISSAN Genuine grease or equivalent.

VQ35DE

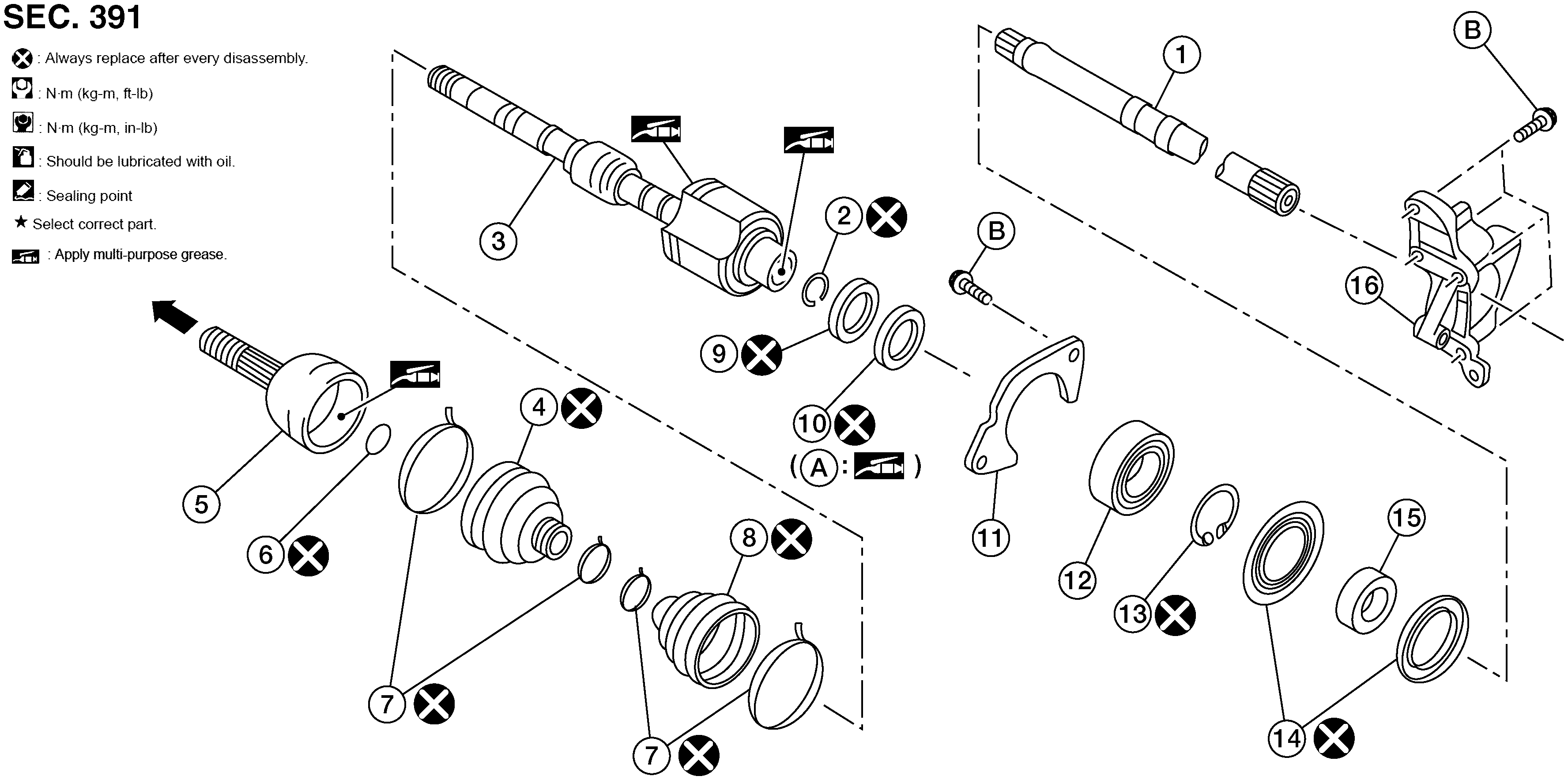

GNSAWDIA1174ZZ-174Courtesy of NISSAN NORTH AMERICA, INC.
1. Link shaft 2. Circular clip 3. Housing assembly
4. Boot 5. Joint sub-assembly 6. Circular clip
7. Boot band 8. Boot 9. Dust shield
10. Oil seal 11. Bearing retainer 12. Bearing
13. Snap ring 14. Dust shield 15. Collar
16. Support bearing bracket A. Oil seal lip B: Refer to FRONT DRIVE SHAFT INSTALLATION
ARROWF Wheel side GREASE Fill NISSAN Genuine grease or equivalent.
