Exploded View

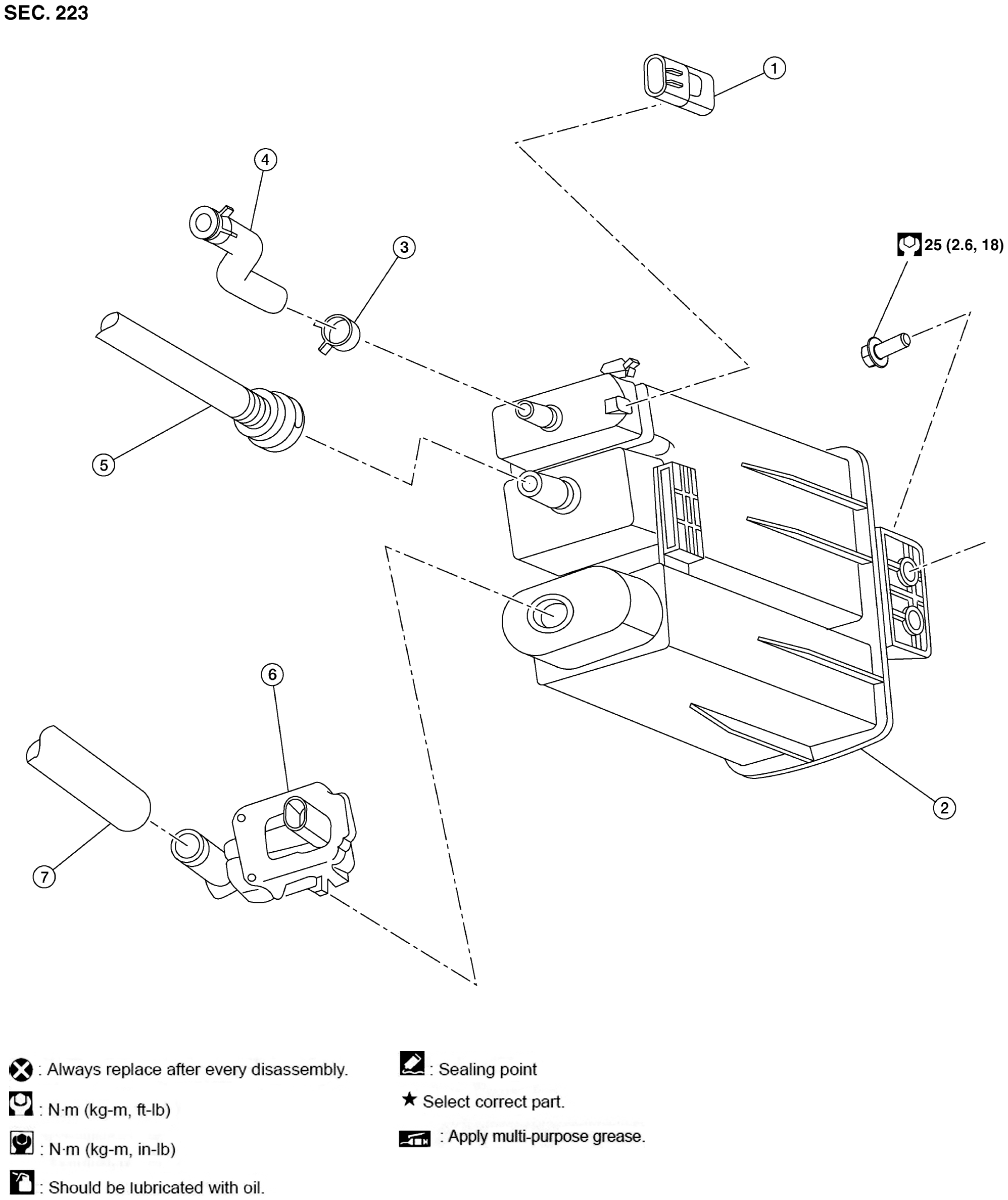

Fig 1: EVAP CANISTER With Torque Specifications
GNSAWBIA2947ZZ-947Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP canister control pressure sensor 2. EVAP canister 3. Hose clamp
4. EVAP canister purge hose 5. EVAP canister vent line 6. EVAP canister vent control valve
7. EVAP canister vent control valve hose
