Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

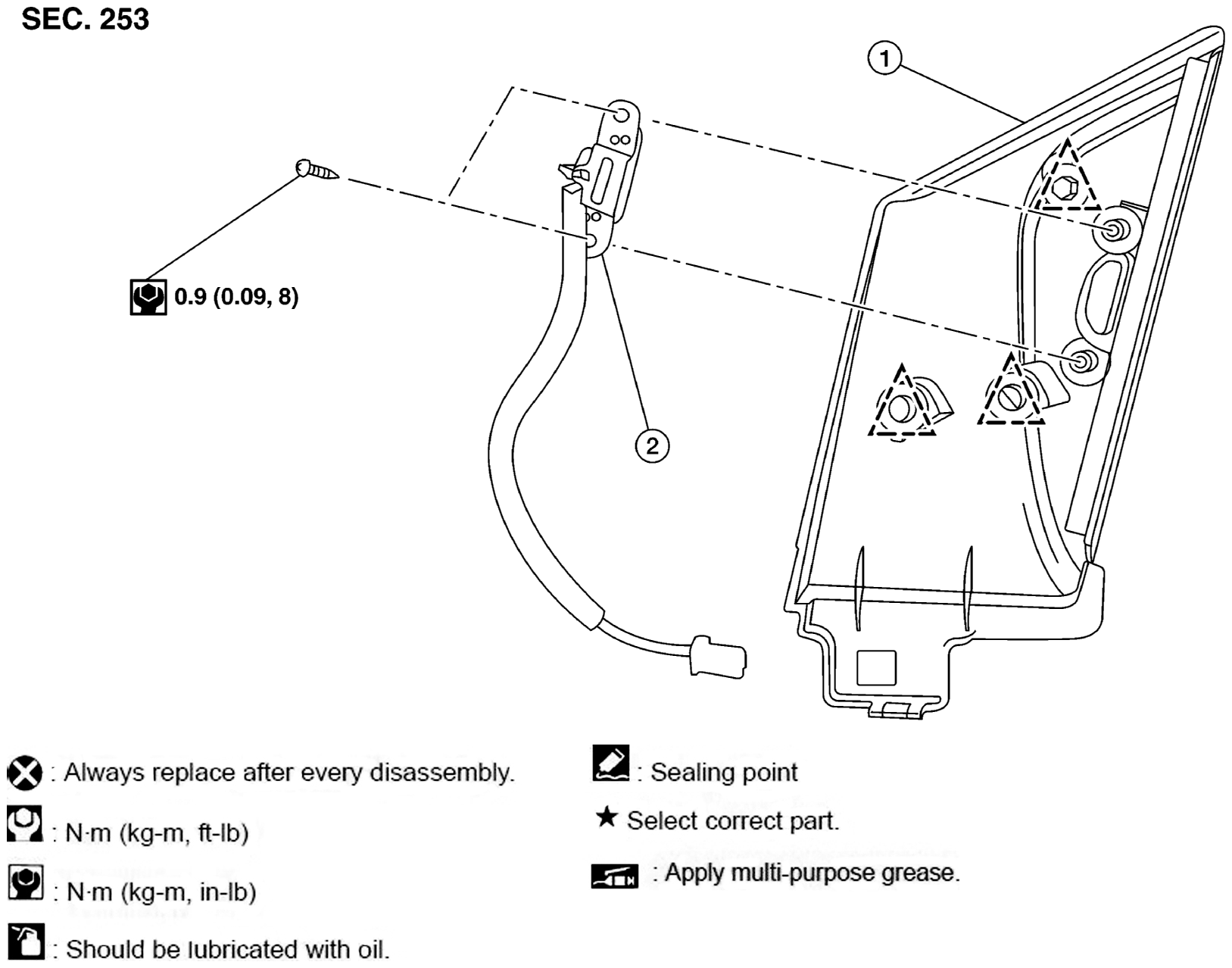

Fig 1: Blind Spot Warning Indicator With Torque Specifications
GNSAWOIA0246ZZ-246Courtesy of NISSAN NORTH AMERICA, INC.
1. Door Mirror Corner Finisher 2. Blind Spot Warning Indicator SANKAKU-H Clip
