Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

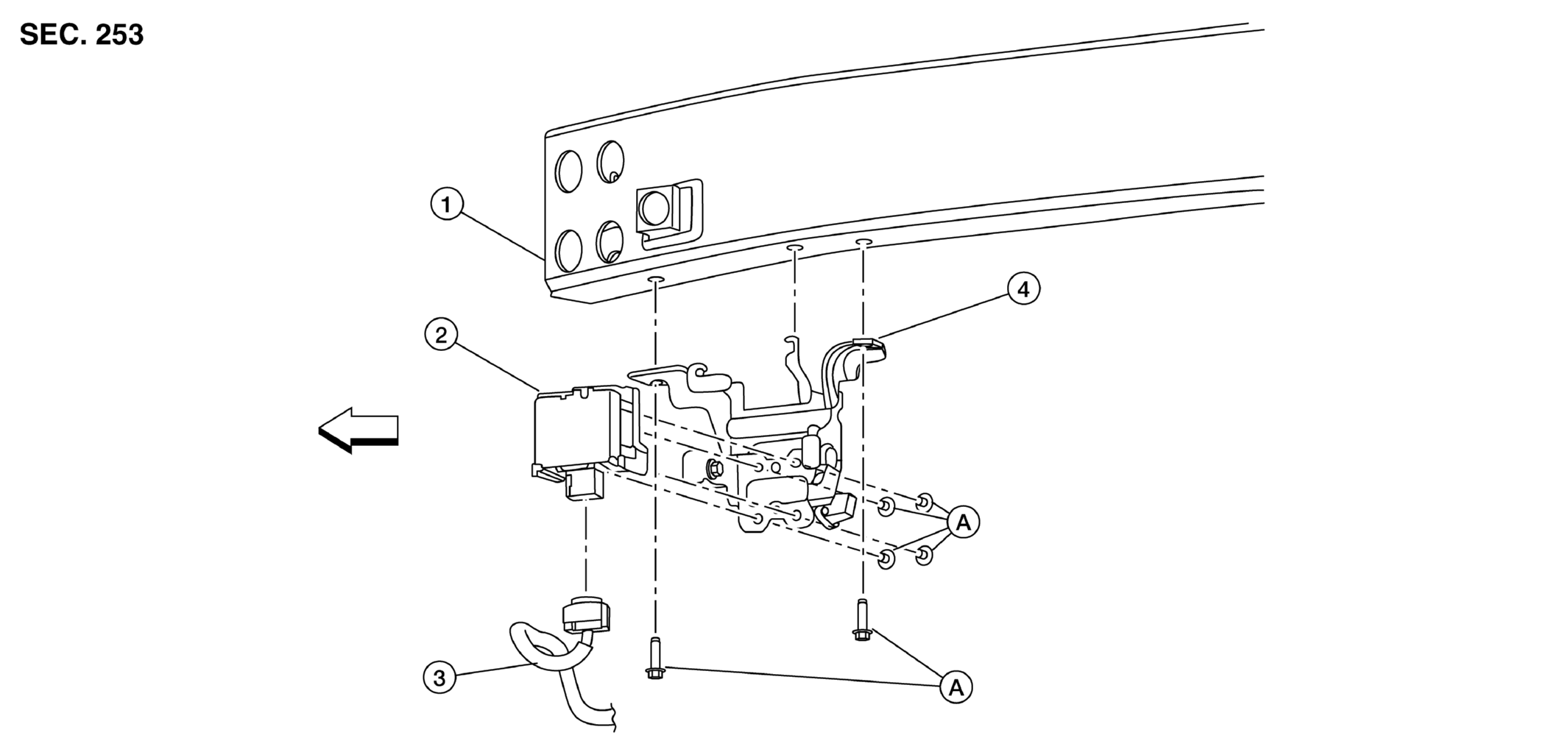

Fig 1: ICC Sensor Components

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front Bumper Reinforcement	2.	ICC Sensor	3.	ICC Sensor Harness Connector
4.	ICC Sensor Bracket	A.	Refer to INSTALLATION		Front
