Switch Name And Function
WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Switch Name | Description |
|---|---|---|

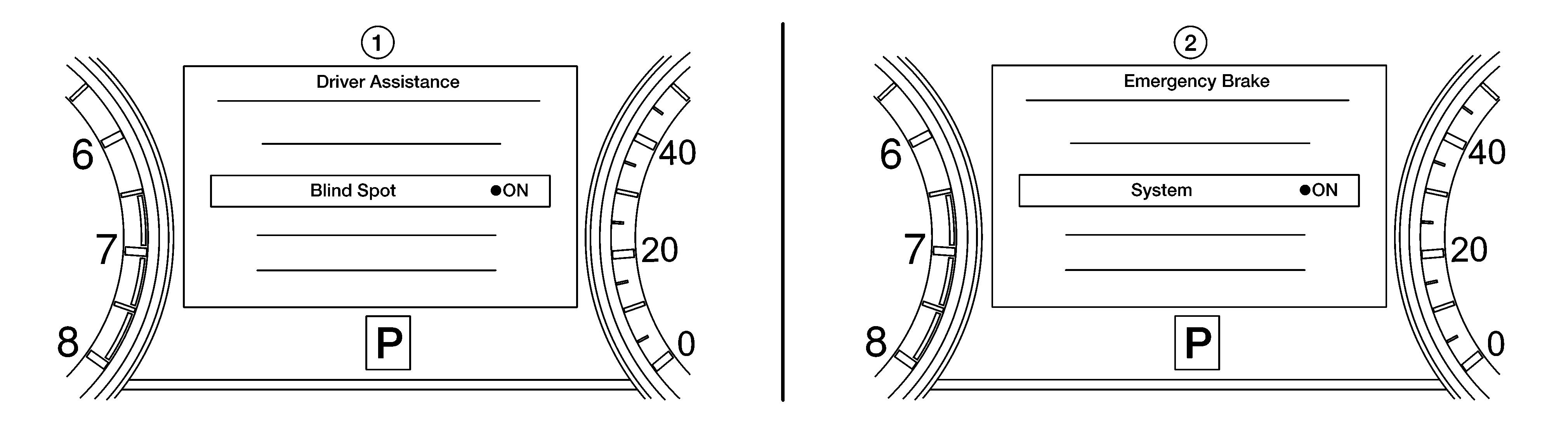

| 1. | BSW/RCTA system setting screen (Integral switch settings screen) |
The setting of BSW/RCTA system can be switched between ON and OFF on the combination meter information display.
NOTE:
When the Blind Spot Warning system is turned ON or OFF, the Rear Cross Traffic Alert system is also turned ON or OFF simultaneously. |
| 2. | PFCW/FEB system setting screen (Integral switch settings screen) |
The setting of PFCW/FEB system can be switched between ON and OFF on the combination meter information display.
NOTE:
When the Forward Emergency Braking system is turned ON or OFF, the Predictive Forward Collision Warning system is also turned ON or OFF simultaneously. |
