Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

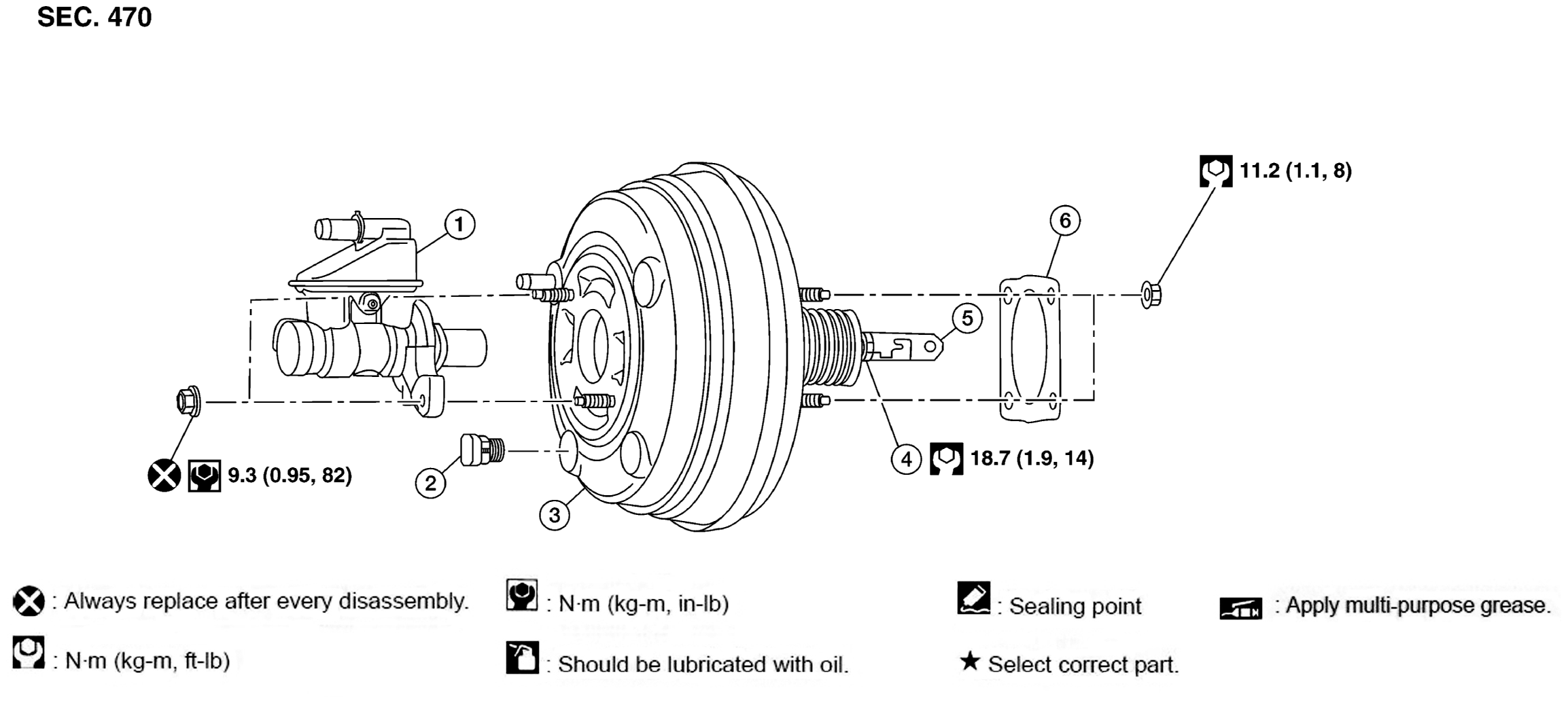

Fig 1: Brake Booster With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Master Cylinder Assembly	2.	Vacuum Sensor	3.	Brake Booster
4.	Lock Nut	5.	Clevis	6.	Gasket
