Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Install bleeder valve and cap.
Apply rubber grease to each piston seal (1), and install them to the brake caliper body.

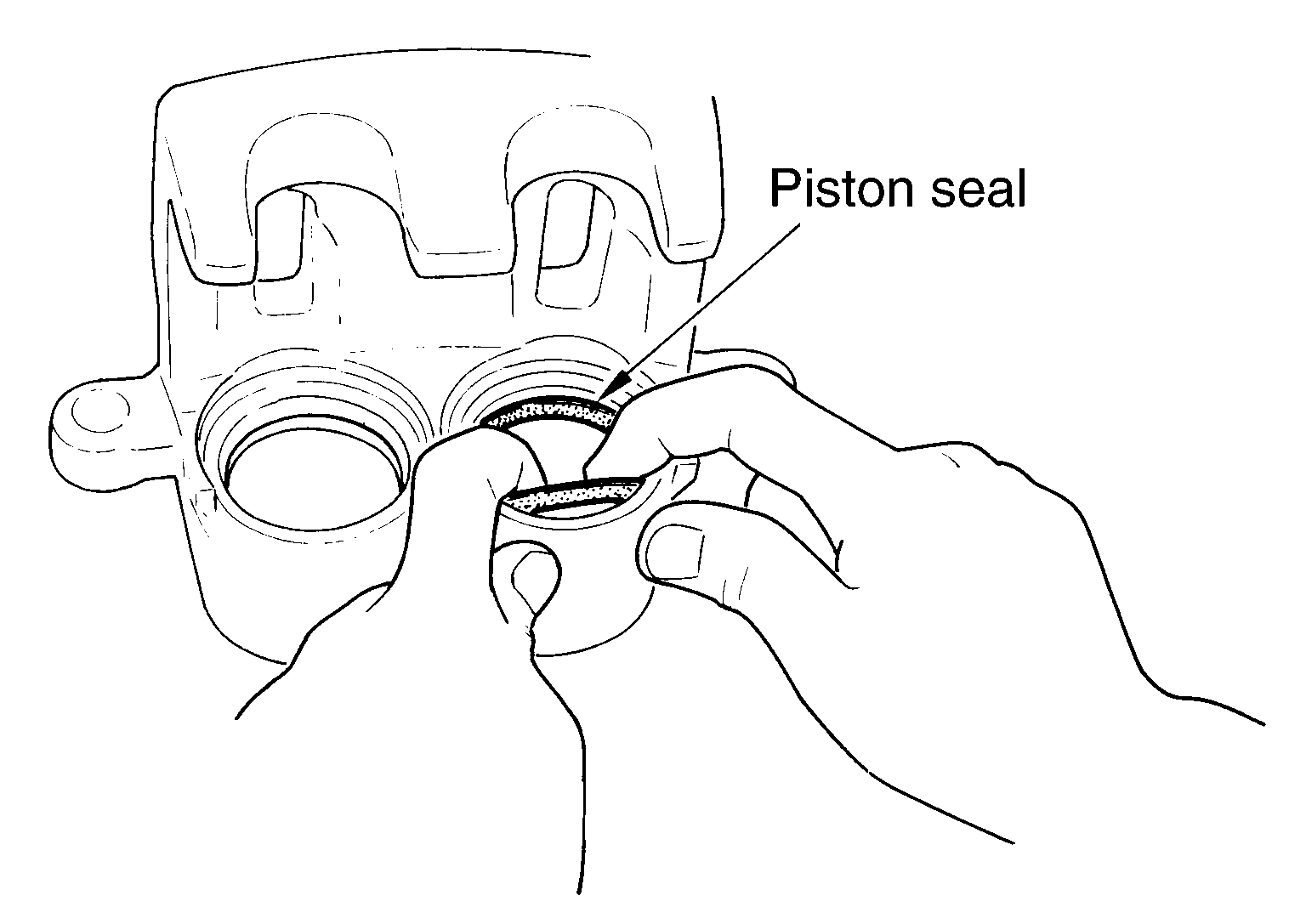

Fig 1: Inserting Piston Seal
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not reuse piston seal.
Apply rubber grease to the piston boots. Cover each piston end with a piston boot, and then install cylinder side lip on piston boot securely into a groove on brake caliper body.

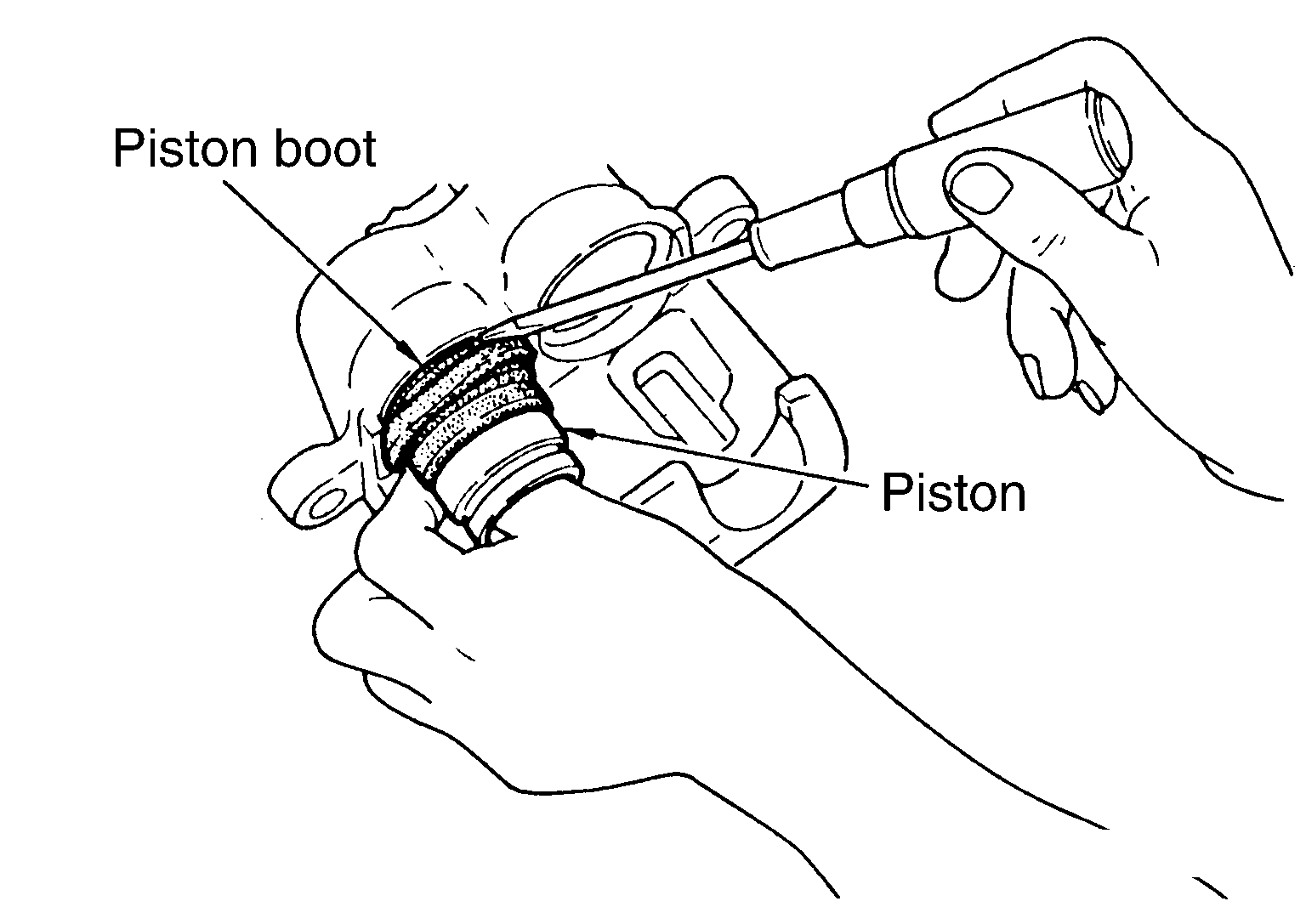

Fig 2: Installing Cylinder Side Lip On Piston Boot
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not reuse piston boots.
Apply brake fluid to each piston (1). Push each piston into cylinder body by hand and push piston boot (2) piston-side lip into the piston groove.

Fig 3: Installing Pistons Into Cylinder Body And Inserting Piston Boots Side Lip Into Piston Groove
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Press the piston evenly and vary the pressing point to prevent cylinder inner wall from being rubbed.
Apply rubber grease to bushing; install bushing to slide pin.
Apply rubber grease to slide pin boots. Install slide pin boots to torque member.
Apply Nigrove Rx-2 to slide pins. Install slide pins to torque member.
Install the brake caliper to the vehicle. Refer to REMOVAL AND INSTALLATION .
