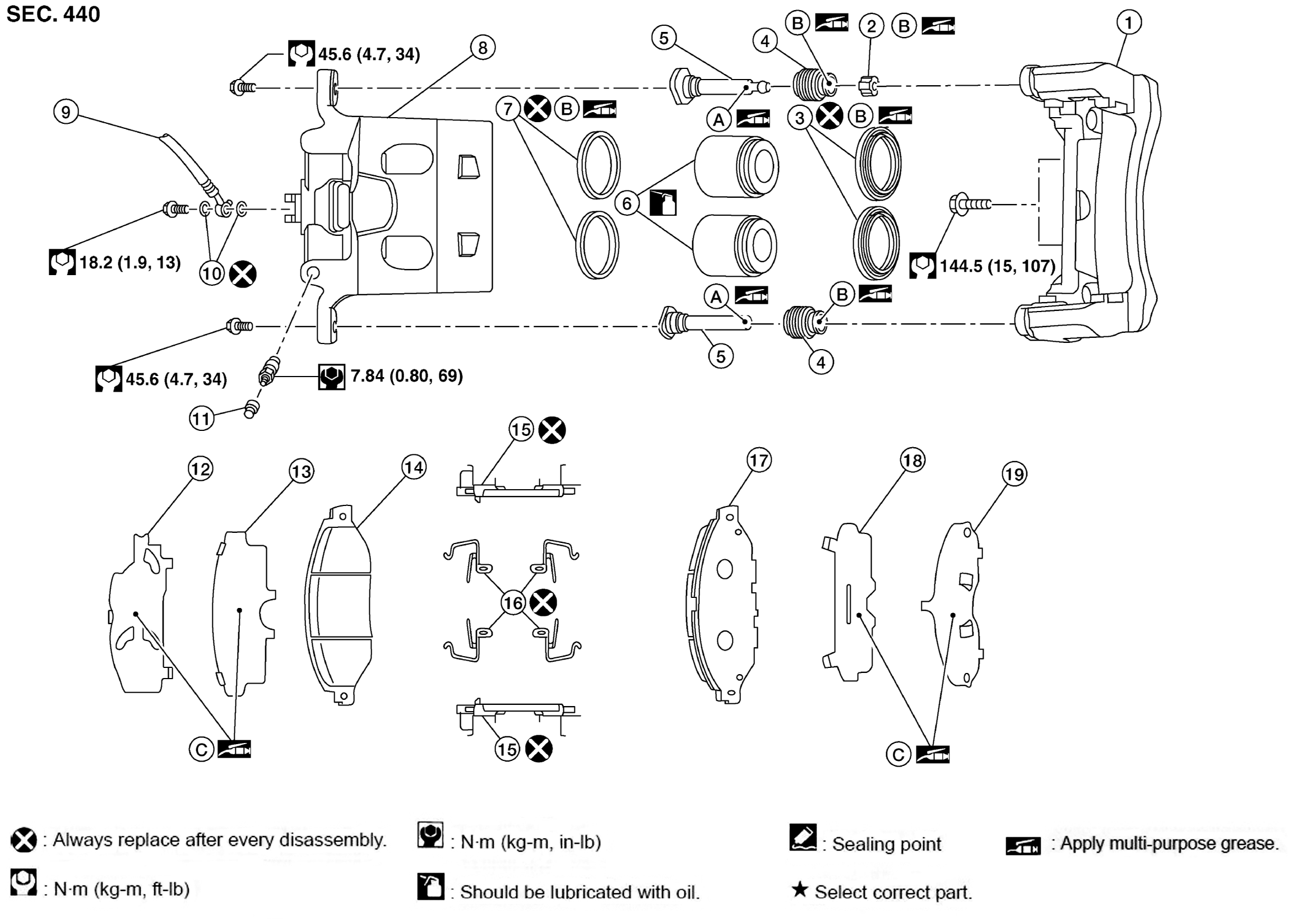

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Torque Member | 2. | Bushing | 3. | Piston Boot |
| 4. | Slide Pin Boot | 5. | Slide Pin | 6. | Piston |
| 7. | Piston Seal | 8. | Brake Caliper Body | 9. | Brake Hose |
| 10. | Copper Sealing Washers | 11. | Bleeder Cap | 12. | Inner Shim Cover |
| 13. | Inner Shim | 14. | Inner Pad | 15. | Pad Retainer |
| 16. | Anti-Rattle Clip | 17. | Outer Pad | 18. | Outer Shim |
| 19. | Outer Shim Cover | A. | Nigrove Rx-2 | B. | Rubber Grease |
| C. | Molykote® AS-880N | ||||
