Exploded View With Torque Specifications: LH

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

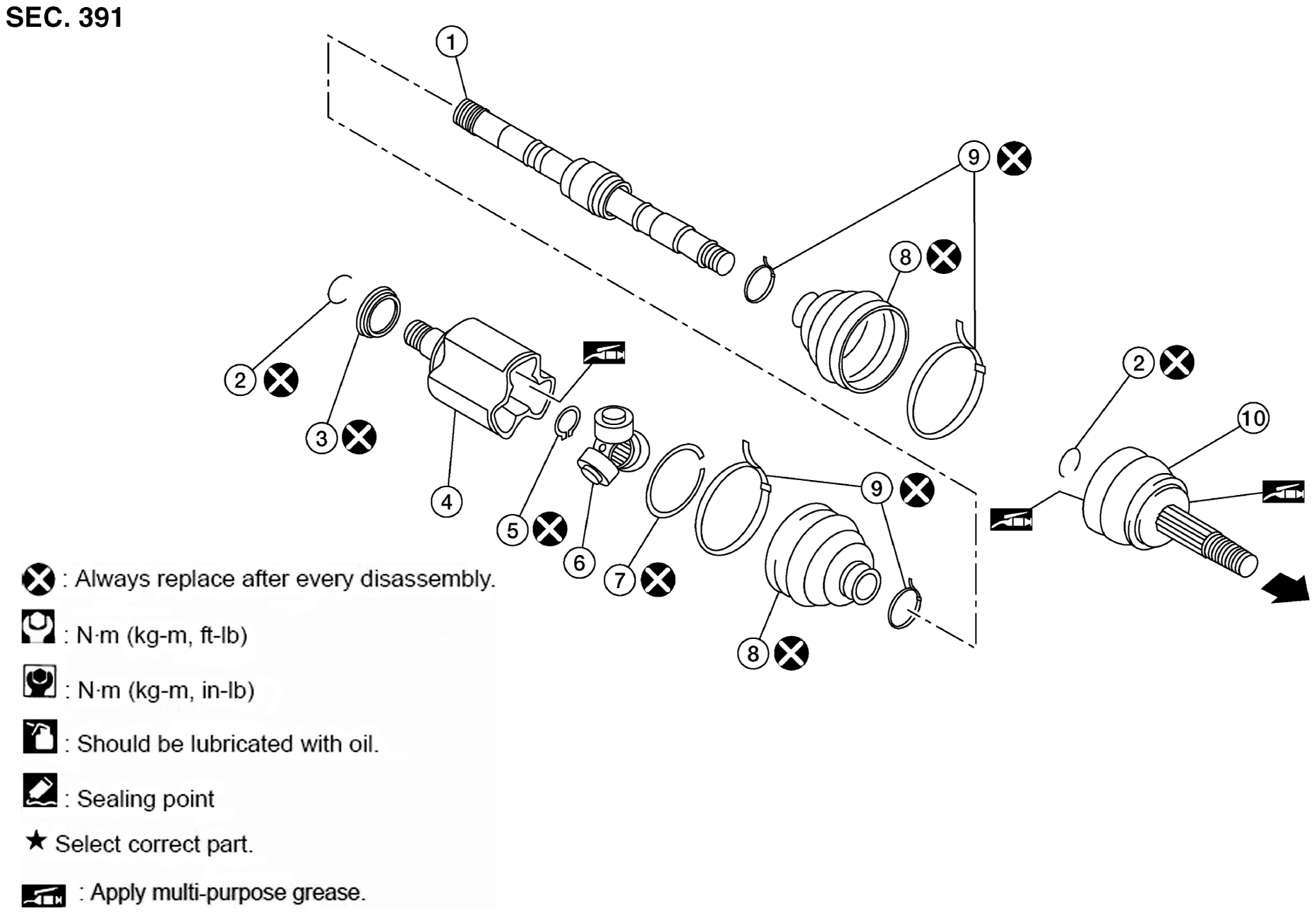

Fig 1: Front Drive Shaft Joints And Boots - LH

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shaft With Damper	2.	Circular Clip	3.	Dust Shield
4.	Housing	5.	Snap Ring	6.	Spider Assembly
7.	Stopper Ring	8.	Boot	9.	Boot Band
10.	Joint Sub-Assembly		Wheel Side		Fill with Genuine NISSAN grease.
