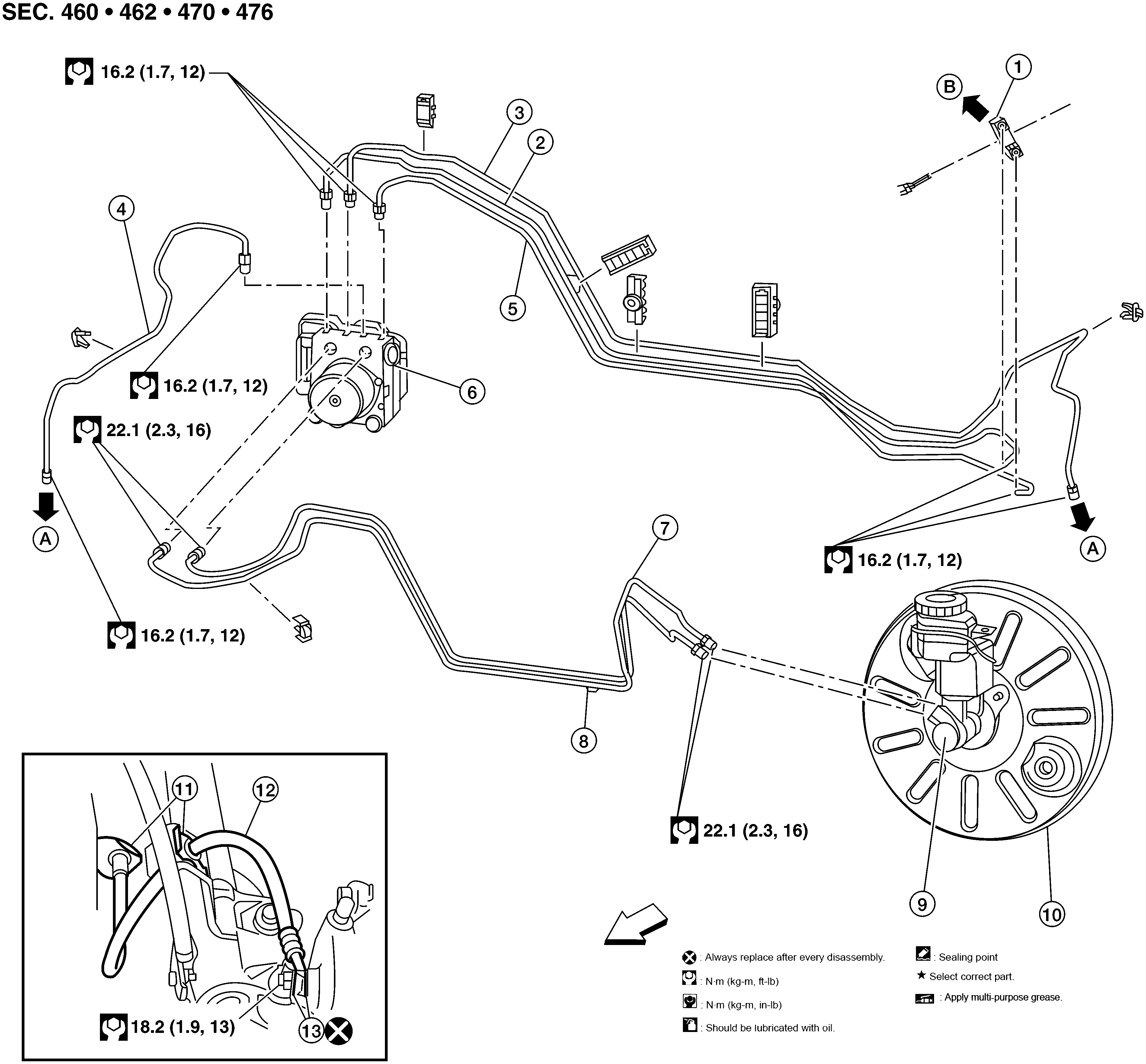

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Brake pipe connector | 2. | ABS actuator to connector brake pipe assembly (RH) | 3. | Front brake pipe assembly (LH) |
| 4. | Front brake pipe assembly (RH) | 5. | ABS actuator to connector brake pipe assembly (LH) | 6. | ABS actuator and electric unit (control unit) |
| 7. | Master cylinder primary to ABS actuator brake tube | 8. | Master cylinder secondary to ABS actuator brake tube | 9. | Master cylinder assembly |
| 10. | Brake booster | 11. | Lock plate | 12. | Front brake hose |
| 13. | Copper sealing washers | A. | To front brake hose | B. | To rear brake pipe |
| Front |
