Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

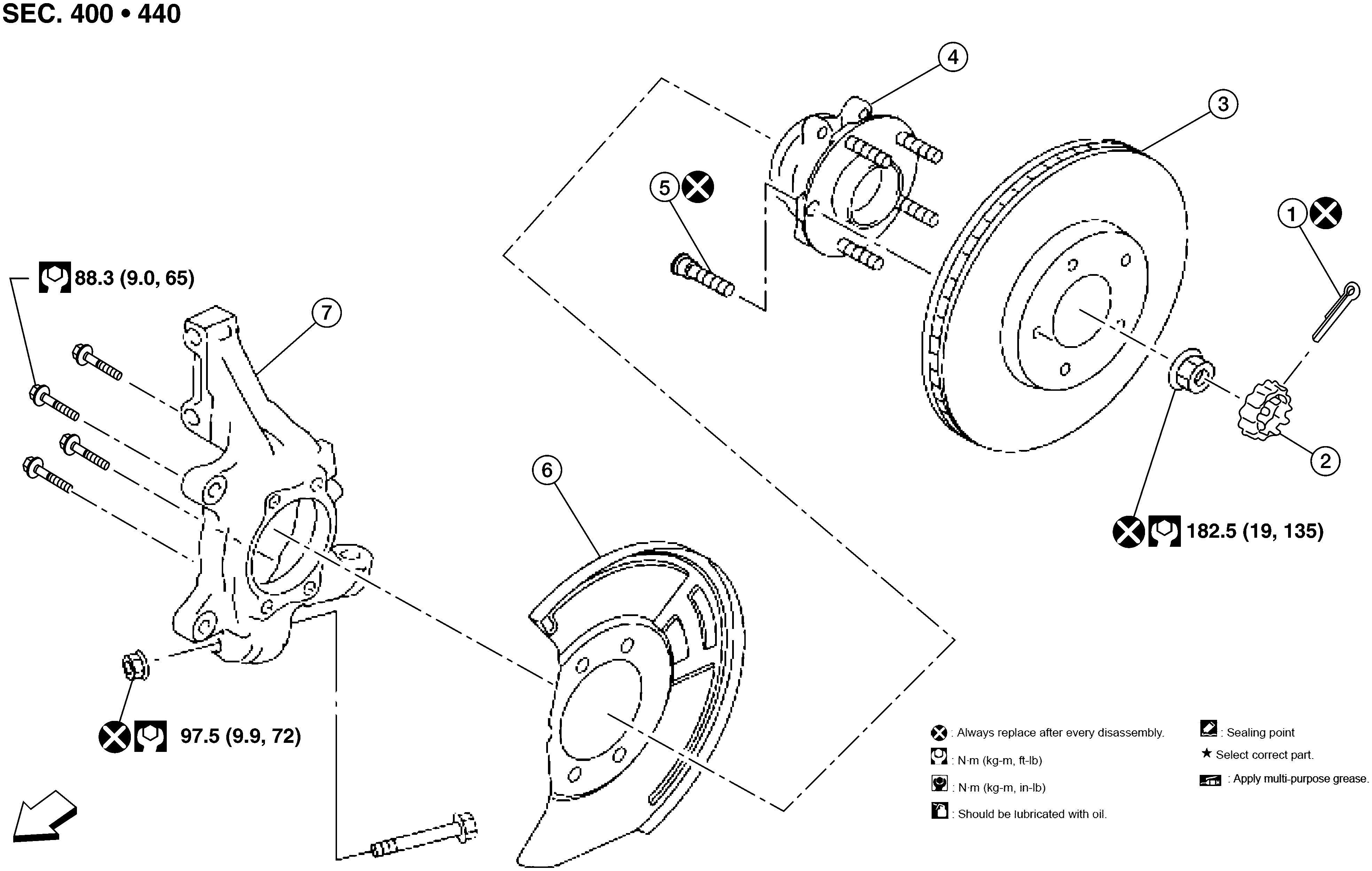

Fig 1: Exploded View Of Steering Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Nut retainer	3.	Disc brake rotor
4.	Wheel hub and bearing	5.	Wheel stud	6.	Splash guard
7.	Steering knuckle		Front
