Component Location
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

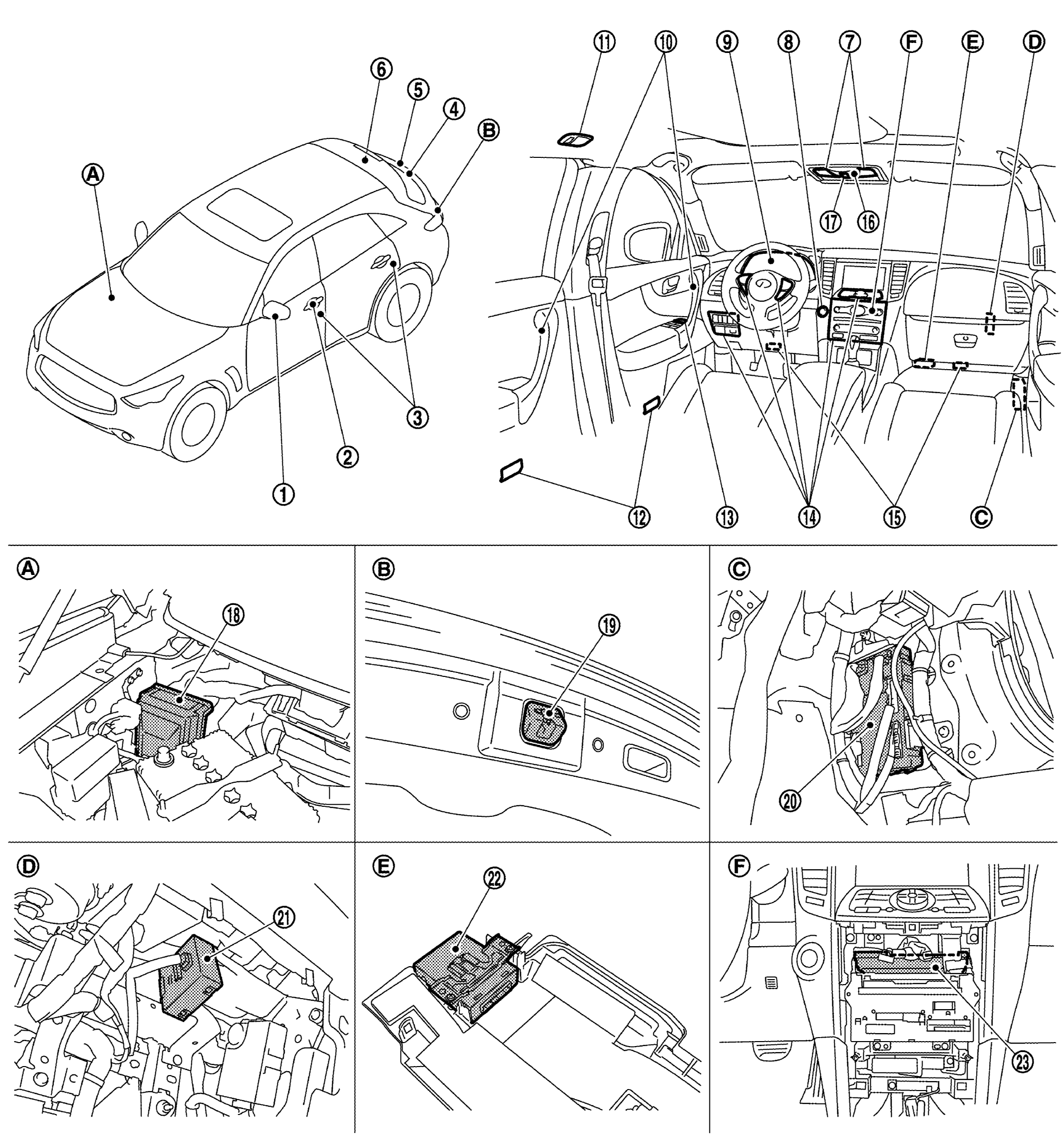

| 1. | Puddle lamp | 2. |
|
3. | Door switch |
| 4. | Luggage room lamp (Back door side) |
5. | Automatic back door close switch | 6. | Luggage room lamp (Luggage side) |
| 7. | Map lamp | 8. | Push-button ignition switch illumination | 9. | Combination meter |
| 10. | Mood lamp | 11. | Personal lamp | 12. | Step lamp |
| 13. | Door lock/unlock switch | 14. | Illuminations | 15. | Foot lamp |
| 16. | Center console indirect illumination | 17. | Map lamp main switch | 18. | IPDM E/R |
| 19. | Back door switch | 20. | BCM | 21. | Remote keyless entry receiver |
| 22. | Total illumination control unit | 23. | Unified meter and A/C amp. | ||
| A. | Engine room dash panel (RH) | B. | Back door lock assembly | C. | Dash side lower (passenger side) |
| D. | Over the glove box | E. | Instrument lower cover LH | F. | Behind the cluster lid C |
