Exploded View

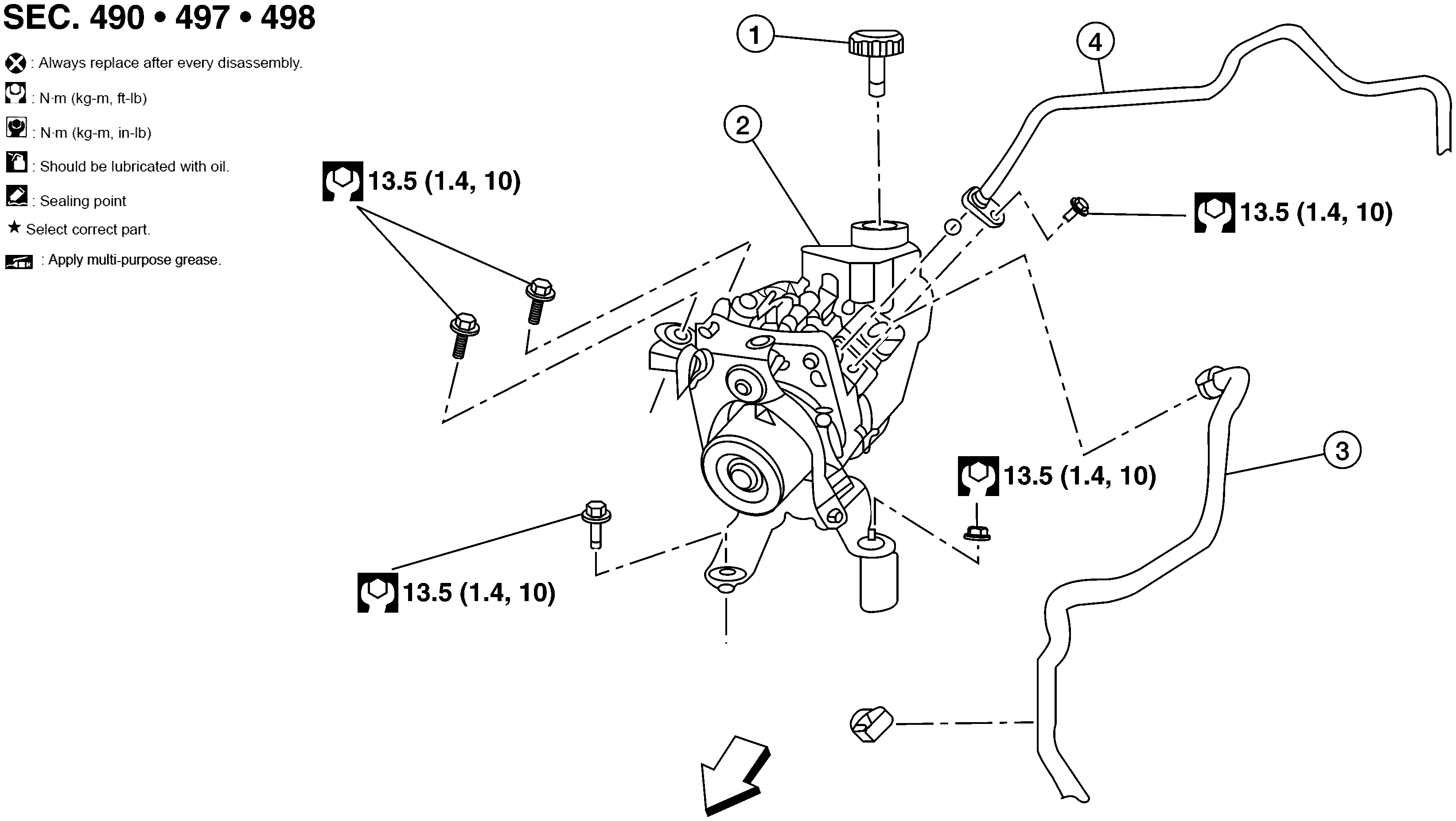

Fig 1: POWER STEERING OIL PUMP With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering reservoir cap	2.	Power steering oil pump assembly	3.	Low pressure piping
4.	High pressure piping		Front
