Exploded View

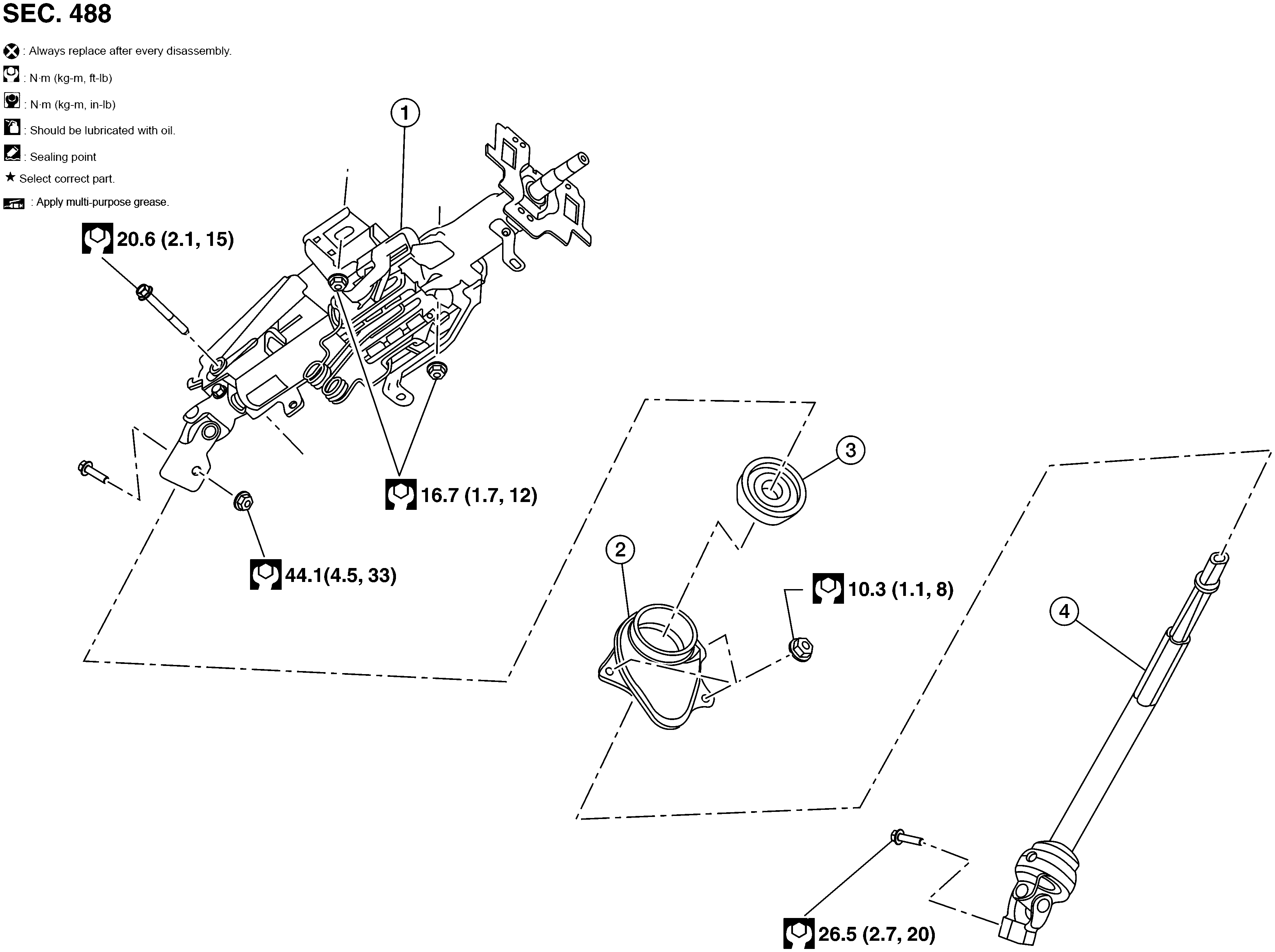

Fig 1: STEERING COLUMN With Torque Specifications
GNSAWGIA0219ZZ-219Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Hole cover 3. Hole cover seal
4. Lower shaft assembly
