Around View Monitor Screen
WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

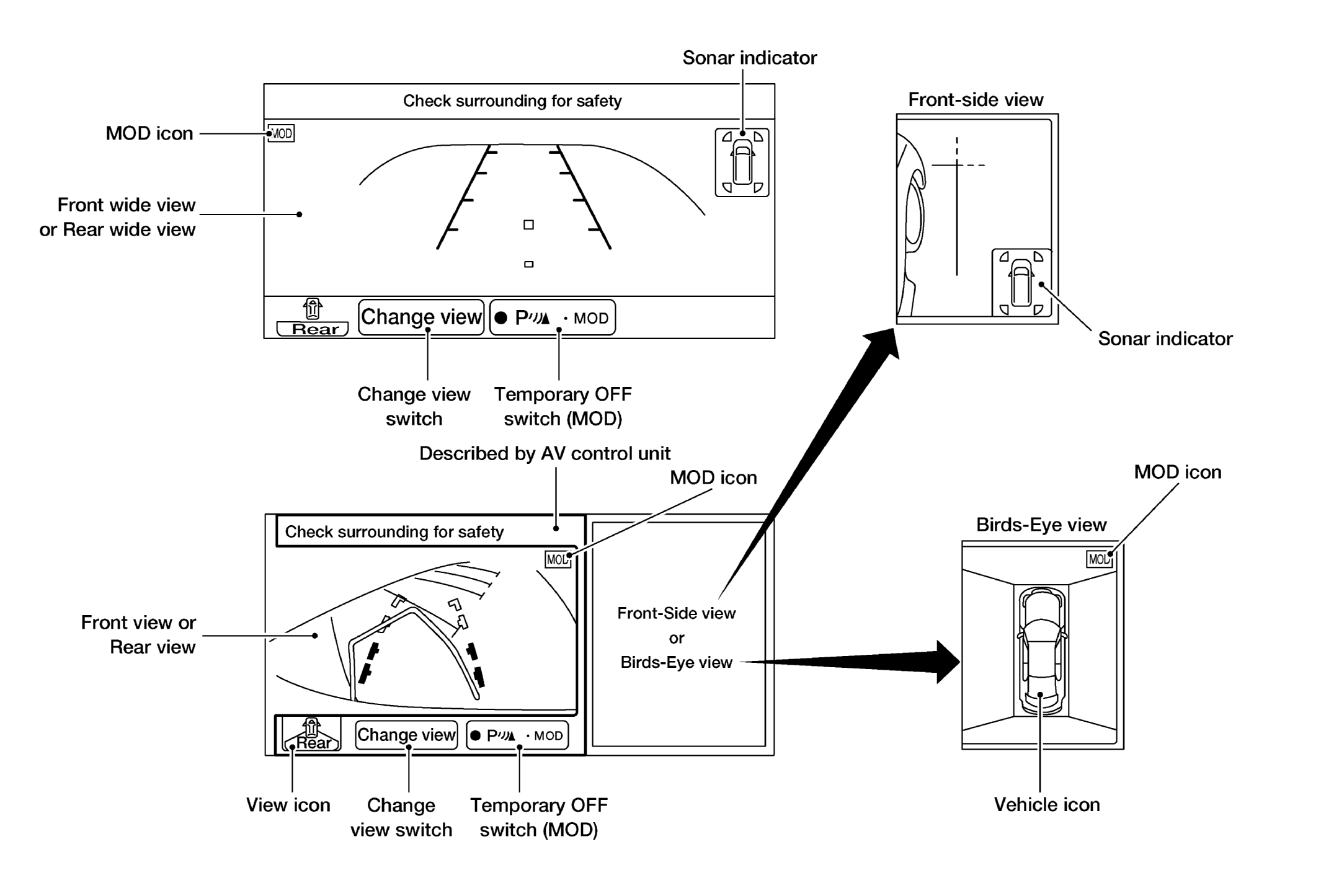

- Around view monitor combines and displays the travel direction view and Birds - Eye view, Front - side view, and then it displays the sonar indicator on the Bird's - Eye view, Front - side view, Rear wide view.
- AV control unit renders the "Change View" switch, view icon, and warning message on display.
Screen Constitution
