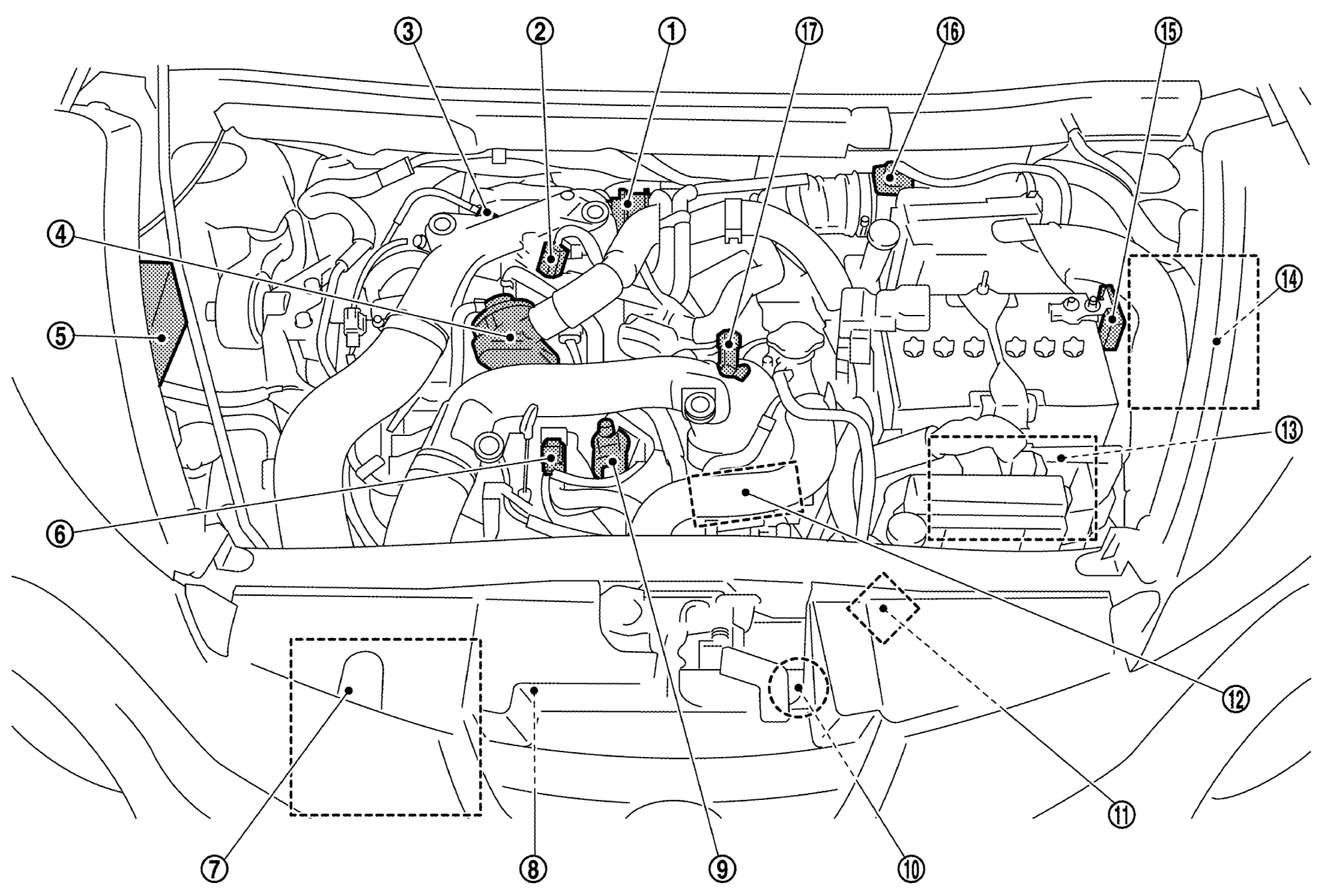

Engine Room Compartment
| 1. | Boost control actuator | 2. | Turbocharger boost control solenoid valve | 3. | A/F sensor 1 |
| 4. | Recirculation valve | 5. | Relay box
|
6. | EVAP canister purge volume control solenoid valve |
| 7. | Inter cooler | 8. | Refrigerant pressure sensor Refer to COMPONENT LOCATION . |
9. | EVAP service port |
| 10. | Cooling fan motor | 11. | Cooling fan control module | 12. | Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
| 13. | ECM | 14. | IPDM E/R Refer to COMPONENT LOCATION . |
15. | Battery current sensor (with battery temperature sensor) |
| 16. | Mass air flow sensor (with intake air temperature sensor 1) |
17. | Turbocharger boost sensor (with intake air temperature sensor 2) |
