Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

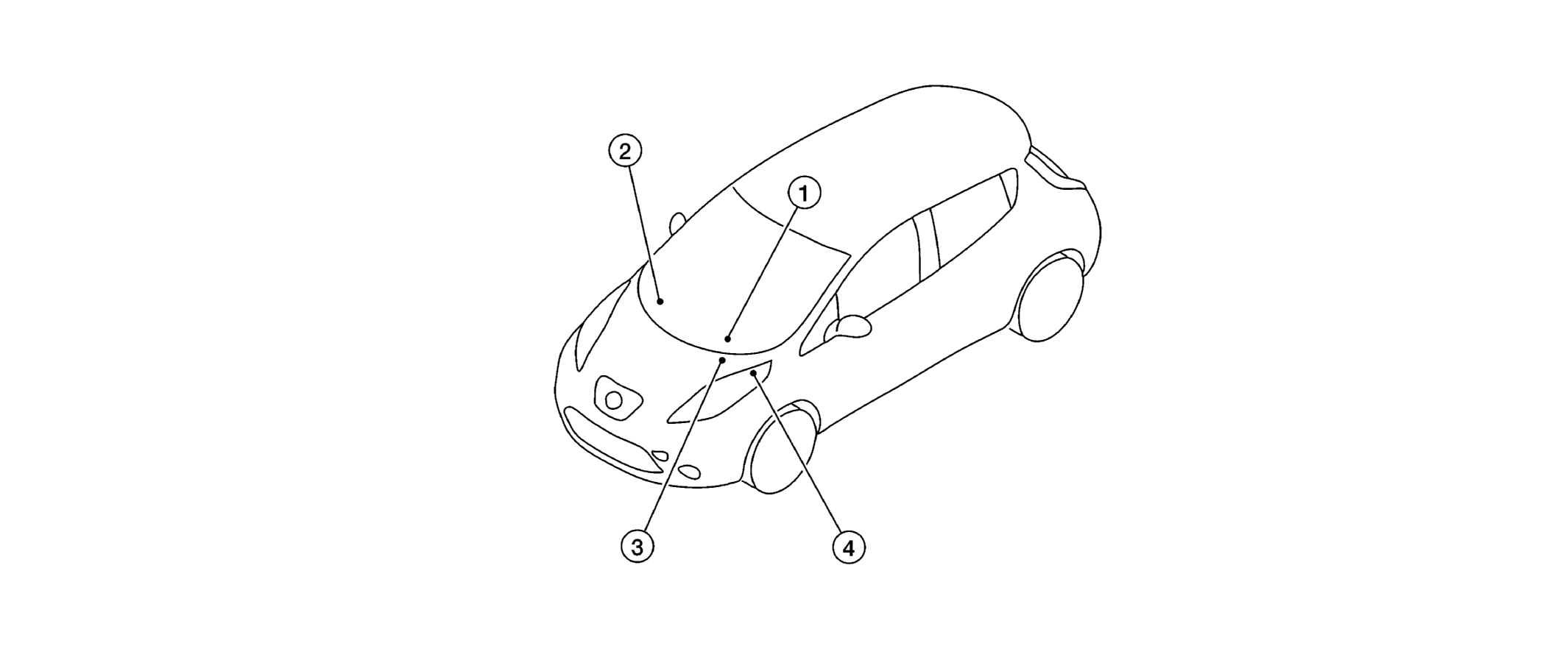

1.	Combination meter Refer to COMPONENT LOCATION .	2.	BCM Refer to COMPONENT LOCATION .	3.	Electrically-driven Intelligent Brake unit Refer to COMPONENT LOCATION .
4.	IPDM E/R Refer to COMPONENT LOCATION .
